Description

EMAX 80 Gallon 175 PSI Splash Lube Air Compressor with Maintenance Kit

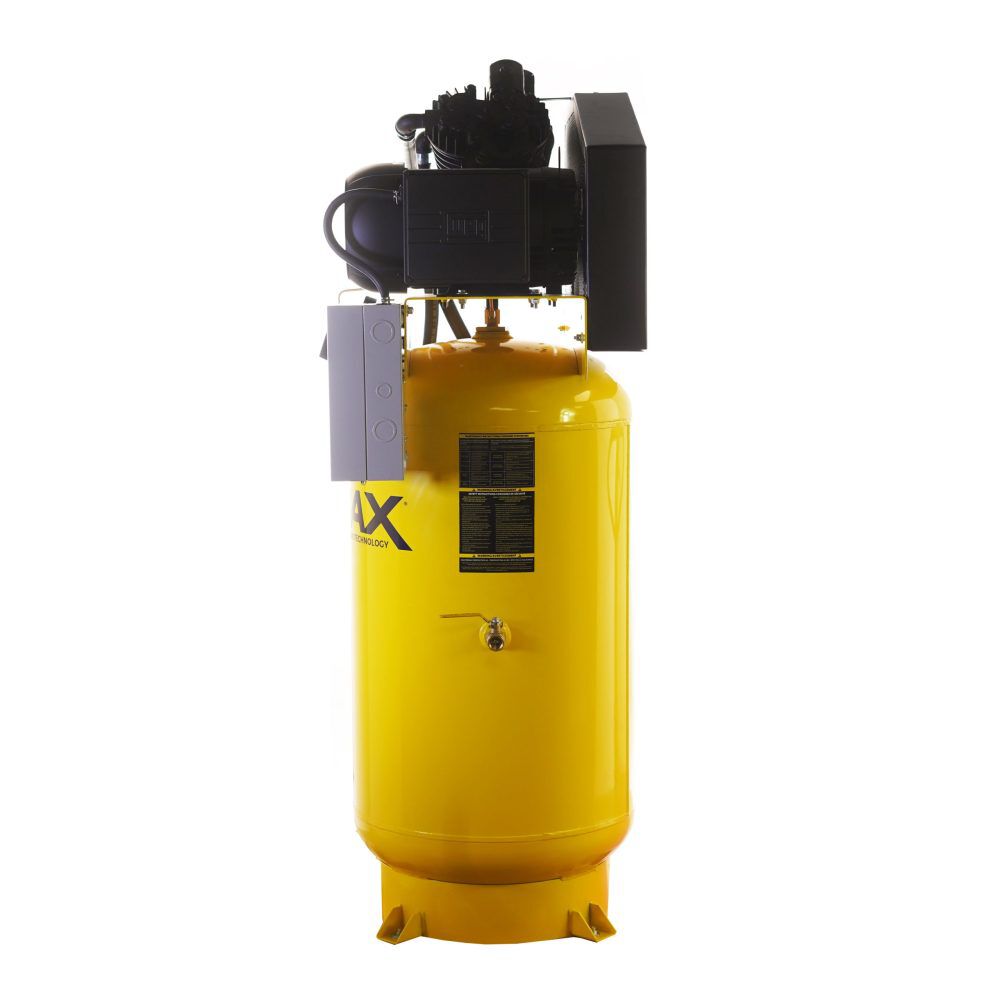

The EMAX 250 Silent Air series 10HP 80 gallon 2-stage V4, single phase air compressor is designed for up to 50000-hours based on B-10 bearing life, of use with proper maintenance. This EMAX air compressor is equipped with an all-cast iron splash lubricated pump producing 38 Cfm at 100 Psi. This unit features our patented Silent Air system already installed. The Silent Air system dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4-levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. It also features industrial grade 1.1 Service Factor 1740 Rpm electric motor, magnetic starter, manual drain valve, 80 gallon powder coated ASME tank with 1/4 In. mounting pads, OSHA approved 13 G steel belt guard, 3/4 In. air outlet, all back by the best warranty around. Pump comes with 70 hour break-in oil, this compressor also includes your first maintenance kit for use after your first 70 hours of compressor break-in.

California Proposition 65 Warning.

Manuals

Warranty - PDF

Features

Splash pump - Operation: Splash lubrication systems work by using rod dippers that pass through the oil in the crankcase when the pistons are moving and splash the oil up onto the cylinders and pistons to lubricate them. Although this method is effective, it's not precise. Parts of the pump may not be receiving enough oil. Where there is not enough oil, wear between critical components can become a costly issue… on the other hand too much oil can also be in issue as well. Viscosity: Viscosity of the oil becomes important with splash method as well, if the oil is not thick enough it will not cling to the dippers as needed. So, although effective it is becoming an outdated method. History: Traditional splash lubrication systems have been around since the first air compressor was produced
Silent Air - Noise Reduction: Our Patented Silent Air system works by dissipating compressor intake noise through a series of noise cancellation plates, reducing DBA ratings by up to 50%. Silent air compressors operate at a normal conversation level in comparison to traditional compressors that operate at the level of a police siren. Air Filtration: This low-profile system not only makes the compressor quieter but also adds four levels of air filtration. Silent Air Technology: Significantly lowers the risk of hearing damage. Decrease in employee turnover. Enhances workplace satisfaction
Belt drive - Our belt driven compressors are driven by V belts that allow you to adjust the pump speeds by changing pulley sizes
Meets ETL, ASME, CRN standards

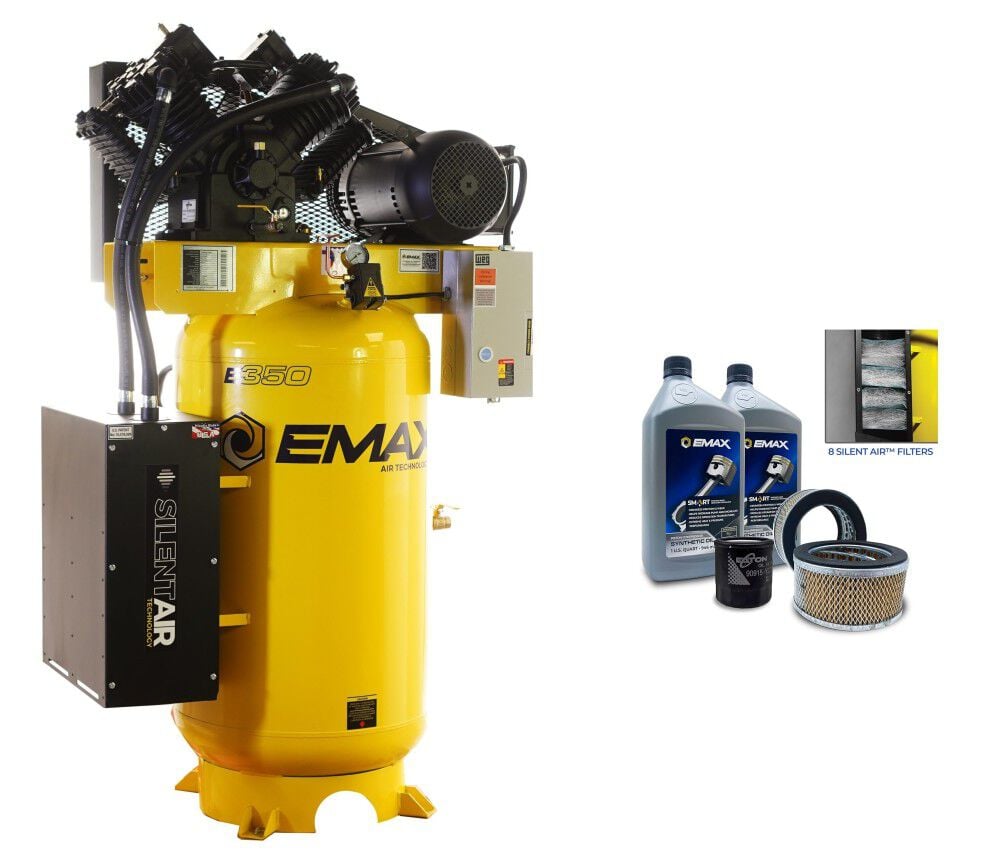

Includes 5 year extended pump warranty kit EFKIT008AWBS - (2) Smart Oil - Model: OILPIS102Q, (2) Air Filter - Model: FILTER057, (8) Silent Air Filters - Model: FILTER107, (1) Spin-On Oil Filter - Model: FILTER130
Manual tank drain
ODP Motor

Specifications

Brand Name
EMAX
Air Volume (CFM)
38
Application
For Industrial Applications
Assembled Weight (lbs)
914
Average Air Consumption (CFM)
38
Compressor Design
Vertical
Country of Origin
United States
ETL Listed
Yes
Horsepower (hp)
10

MFG Part # (OEM)
ESS10V080V1K

Maximum Air Pressure (psi)
175
Maximum Pressure Rating (psi)
175
Maximum RPM
1740
Maximum Speed (rpm)
1740
Package Contents
Compressor with Isolator Pads, SEFKIT008AWBS - (2) Smart Oil - Model: OILPIS102Q, (2) Air Filter - Model: FILTER057, (8) Silent Air Filters - Model: FILTER107, (1) Spin-On Oil Filter - Model: FILTER130
Phase
Single Phase
Pressure Rating (psi)
175

Product Condition
New

Restrictions
CA Prop 65
Size
3/4 In. Outlet
Tank Capacity (gal)
80

UPC
810070058364

Voltage
230 Volts
Warranty Type
1 Year
Weight (lbs)
914
