EMAX 80 Gallon 175 Psi 5HP Vertical Air Compressor

SKU# EI05V080I1
EMAX 80 Gallon 175 Psi 5HP Vertical Air Compressor, large image number 0
EMAX 80 Gallon 175 Psi 5HP Vertical Air Compressor, large image number 1
EMAX 80 Gallon 175 Psi 5HP Vertical Air Compressor, large image number 2
EMAX 80 Gallon 175 Psi 5HP Vertical Air Compressor, large image number 3
EMAX 80 Gallon 175 Psi 5HP Vertical Air Compressor, large image number 4
EMAX 80 Gallon 175 Psi 5HP Vertical Air Compressor, large image number 5
Previous Next
Discontinued by Manufacturer
Contact for more Information: 877-345-2263

Product Details

EMAX 80 Gallon 175 Psi 5HP Vertical Air Compressor
EMAX

Please follow our Community Guidelines and be kind!

Description

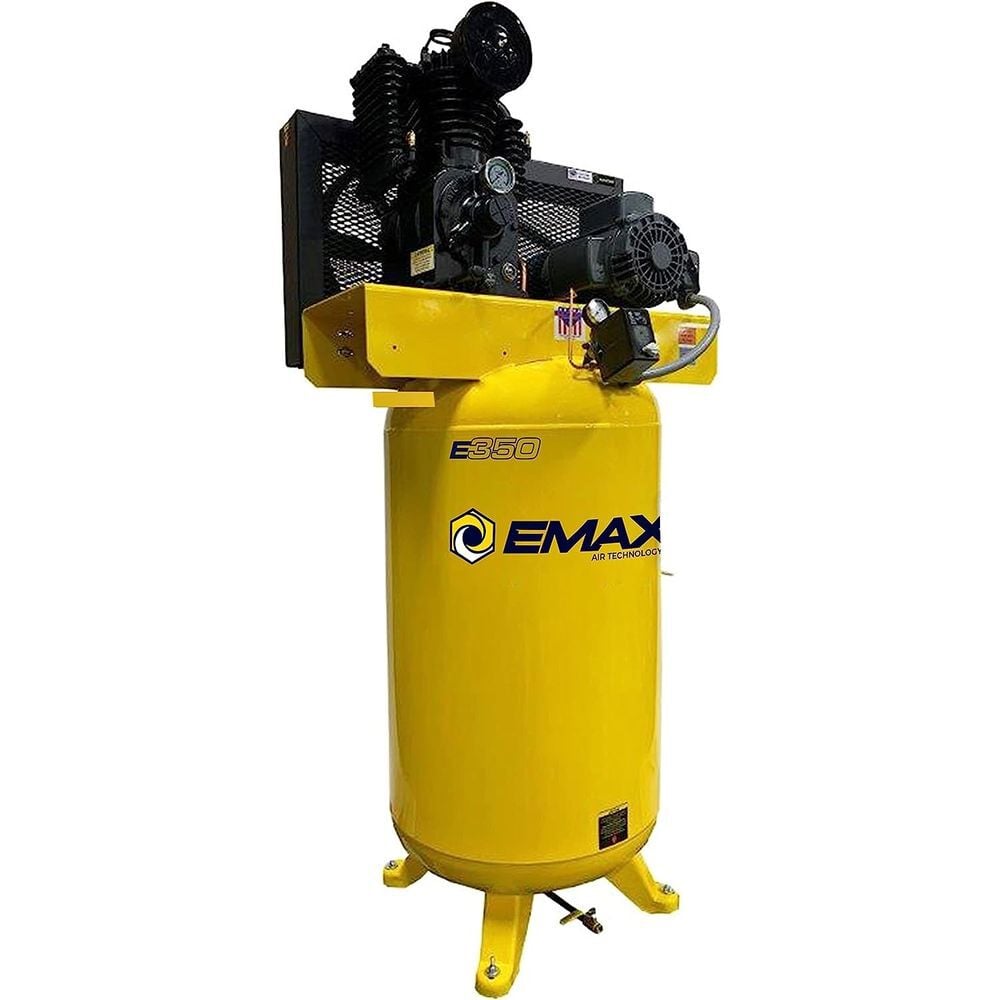

EMAX 80 Gallon 175 Psi 5HP Vertical Air Compressor

Our industrial series offers all the same quality and durability as our Plus series without all the extra cost of added features. We offer this series so that anyone can afford to have an EMAX compressor. This industrial 5HP 2 stage inline 1 phase vertical 80 gallon piston air compressor is designed for up to 70000 hours industrial use with proper maintenance. This unit features our low rpm pressure lube pumps and delivers 19 Cfm at 100 Psi. Our unit is super cool & super quiet.

California Proposition 65 Warning.

Manuals

Installation Guide - PDF

Features

All steel connecting rods with replaceable rod bearing inserts, this allows our rods to be rebuilt! 99% of our competitors now use "throw-away" aluminum connecting rods in their pumps that have no re-build capability
Removable 100% cast iron cylinders, these solid cast iron cylinders are more stable under heavy workloads and do not warp from heat
All cast iron cylinder heads, cast iron heads are more durable and dependable for trouble free operation
Disc valve design" intake and exhaust valves, disc valves have been around for over 100 years and have been proven to perform
Top quality compression and oil rings, our rings ensure performance with low oil carry over (1-5 PPM)
Precision ground pistons machined to tight tolerances ensures low oil carry over
Premium "non-absorbent" gaskets prevent oil seepage from pump
All cast iron flywheel with built-in fan, the extra weight of our cast iron flywheel during run cycle gives the pump more "throw" on the compression stroke which will result in fewer loads on the electric motor
Built-in head unloaders, these unloaders are built into the intake valve assembly on the compressor head and perform a valuable function
Meets CSA, ASME, ETL standards

Specifications

Brand Name
EMAX
Air Volume (CFM)
19
Amperage (A)
24
Assembled Weight (lbs)
576
Average Air Consumption (CFM)
19
Compressor Design
Vertical
Country of Origin
United States
Horsepower (hp)
5

MFG Part # (OEM)
EI05V080I1

Material
Solid Cast Iron Pump
Maximum Air Pressure (psi)
175
Maximum Pressure Rating (psi)
175
Maximum RPM
1750
Maximum Speed (rpm)
1750
Package Contents
Air Compressor
Phase
Single Phase

Product Condition
New

RPM
1750
Restrictions
CA Prop 65
Size
31 In. Length x 33 In. Width x 75 In. Height x 3/4 In. Tank Outlet Size
Tank Capacity (gal)
80

UPC
815002012032

Voltage
230 Volts
Warranty Type
1 Year
Weight (lbs)
576
