EMAX 80 Gallon 175 Psi 10HP Vertical Air Compressor

SKU# EI10V080V1
EMAX 80 Gallon 175 Psi 10HP Vertical Air Compressor, large image number 0
EMAX 80 Gallon 175 Psi 10HP Vertical Air Compressor, large image number 1
EMAX 80 Gallon 175 Psi 10HP Vertical Air Compressor, large image number 2
EMAX 80 Gallon 175 Psi 10HP Vertical Air Compressor, large image number 3
EMAX 80 Gallon 175 Psi 10HP Vertical Air Compressor, large image number 4
EMAX 80 Gallon 175 Psi 10HP Vertical Air Compressor, large image number 5
Previous Next
Discontinued by Manufacturer
Contact for more Information: 877-345-2263

Product Details

EMAX 80 Gallon 175 Psi 10HP Vertical Air Compressor
EMAX

Please follow our Community Guidelines and be kind!

Description

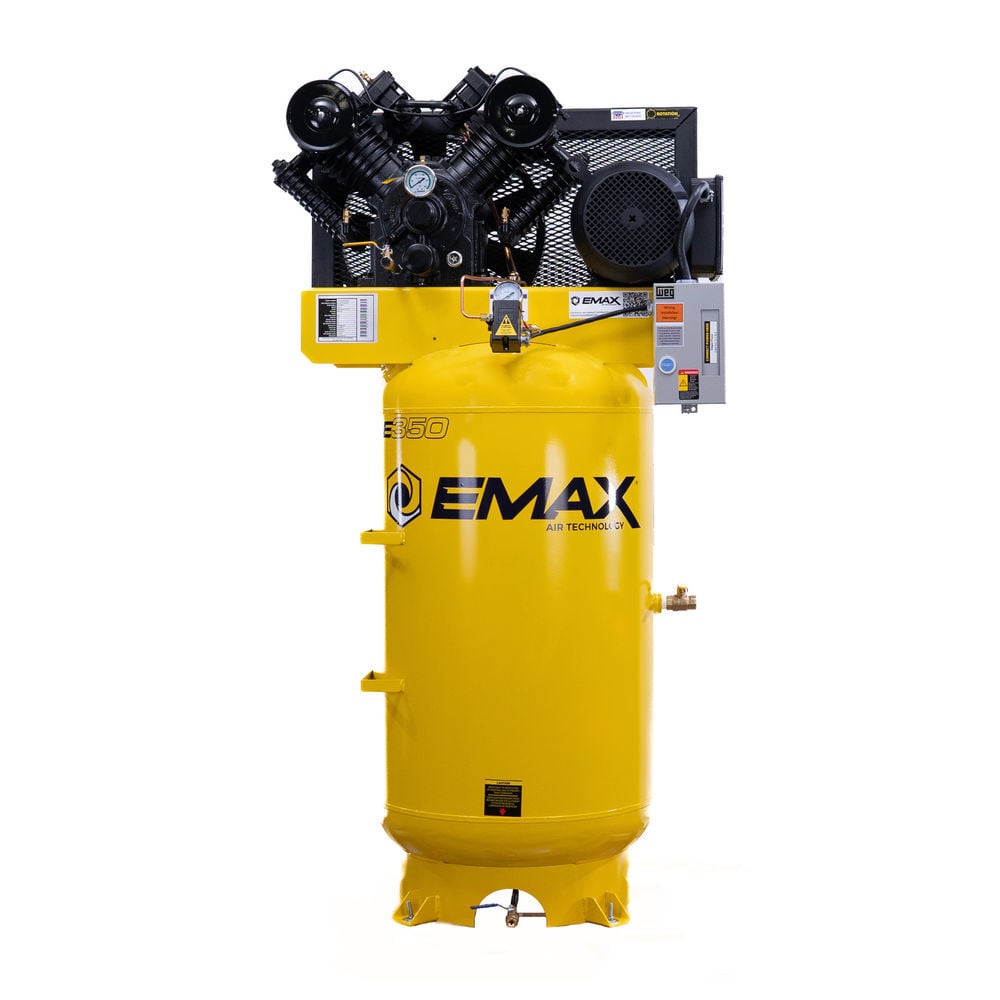

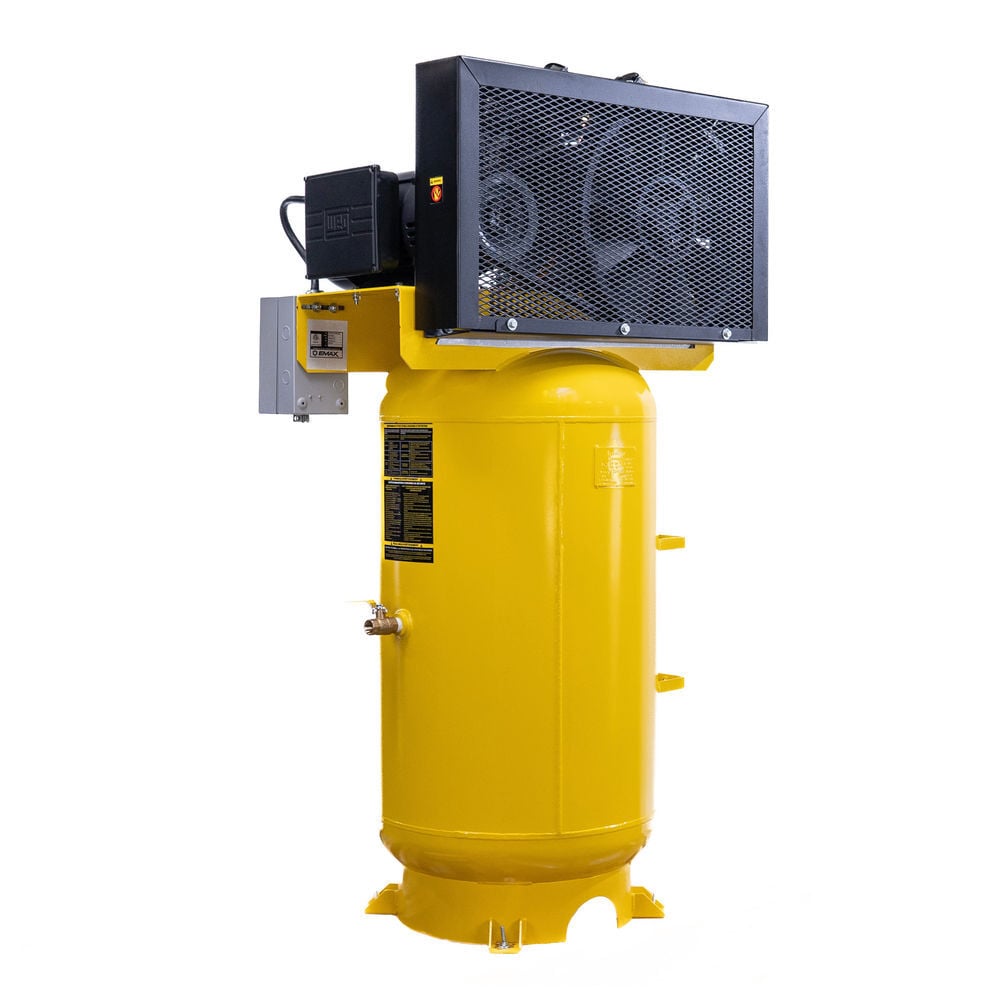

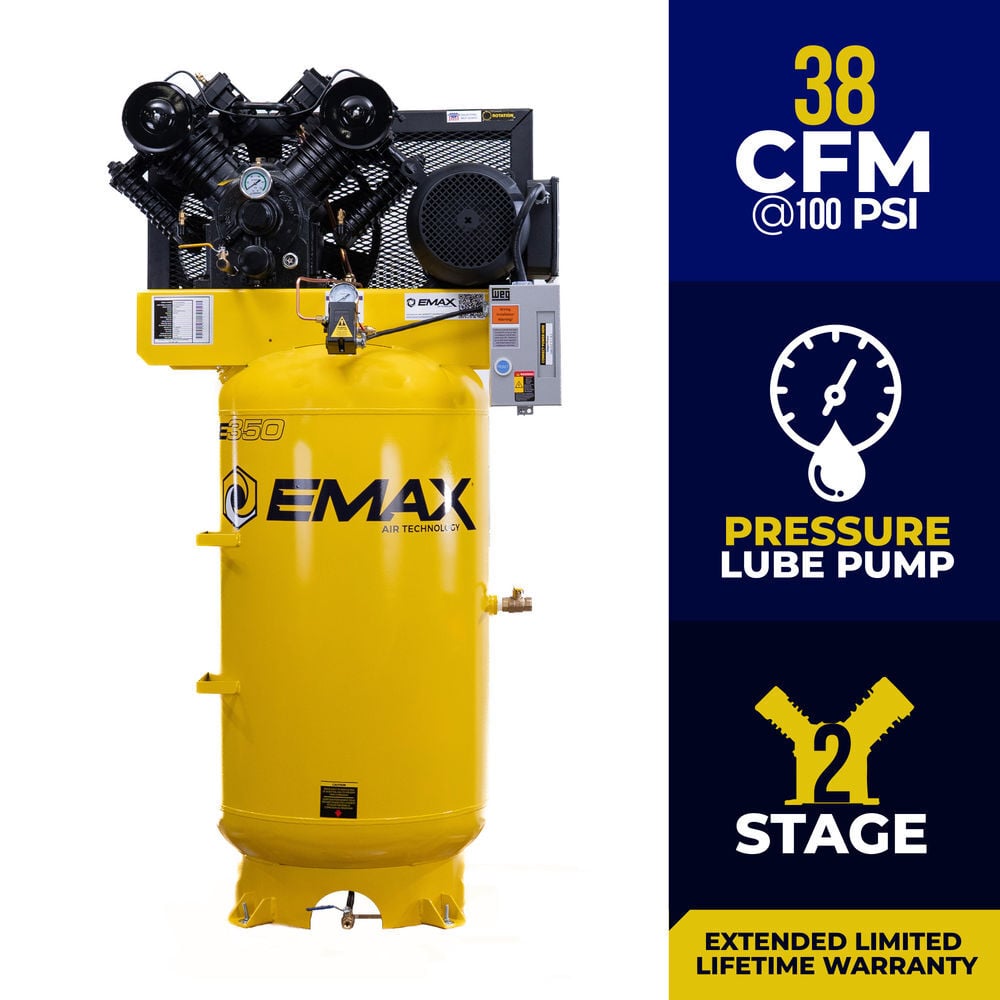

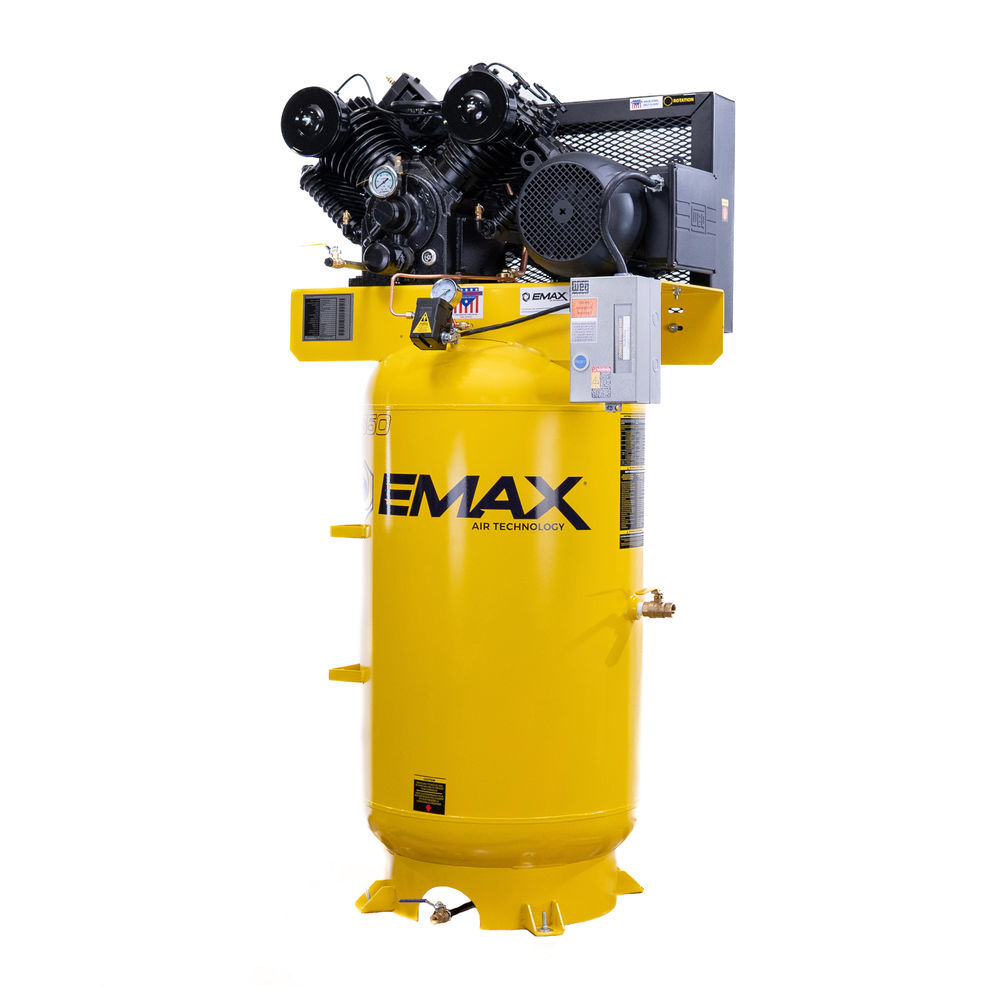

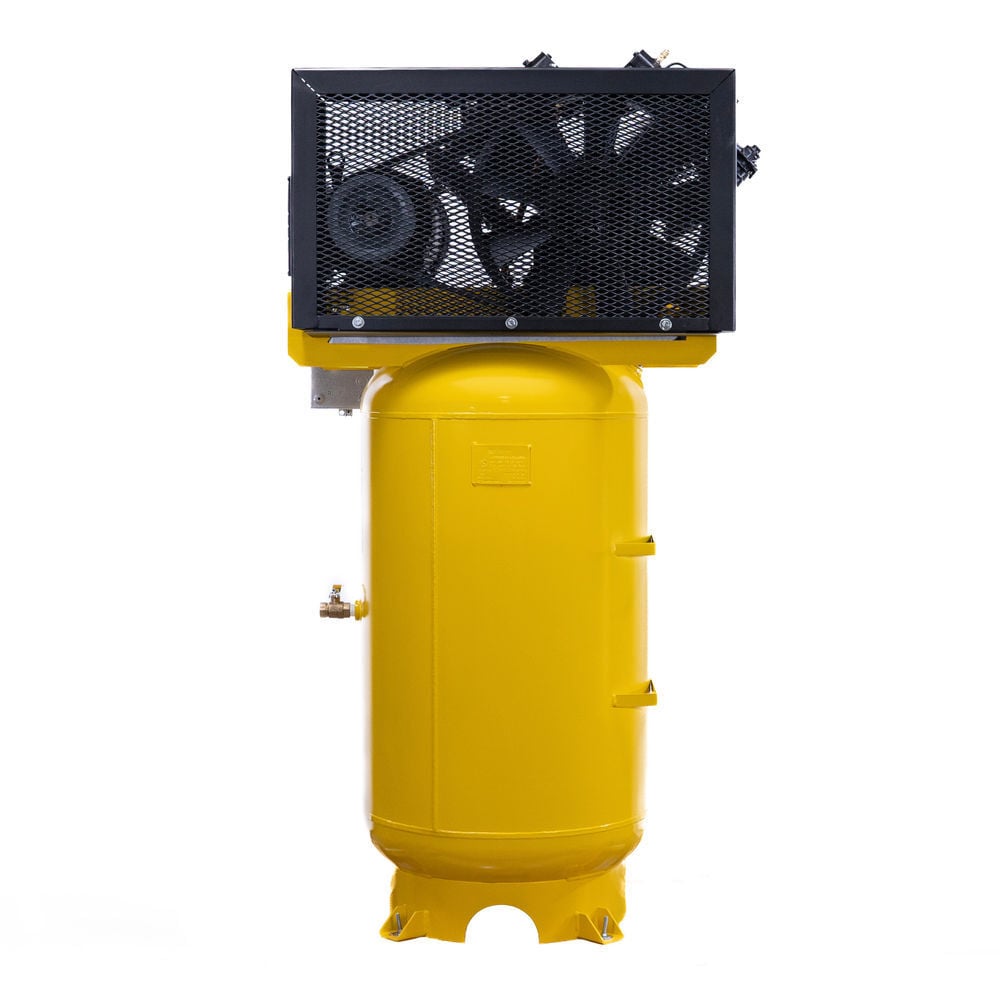

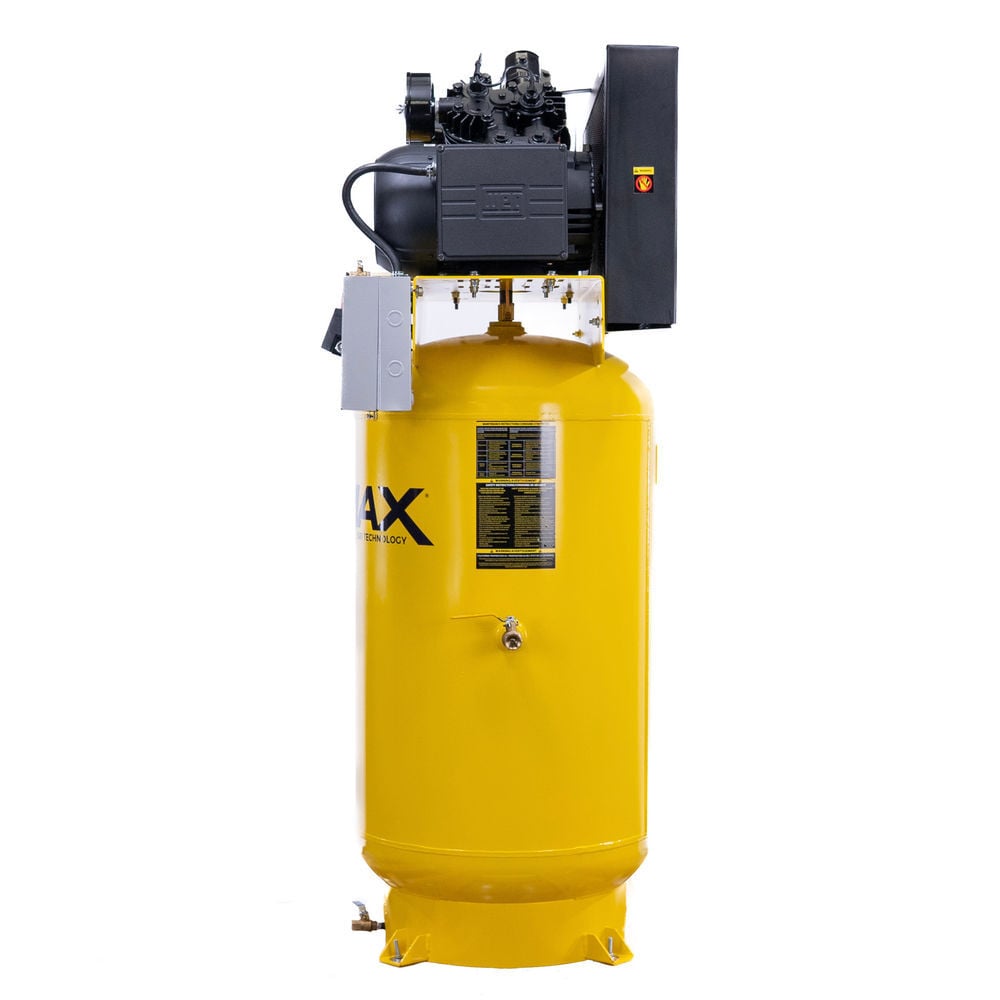

EMAX 80 Gallon 175 Psi 10HP Vertical Air Compressor

Our industrial series offers all the same quality and durability as our plus series without all the extra cost of added features. We offer this series so that anyone can afford to have an EMAX compressor. EMAX industrial 10 P 2 stage V4, 1 Phase vertical 80 gallon. Piston air compressor is designed for up to 70000 hours of commercial or industrial use with proper maintenance. This unit delivers 38 SCfm at 100 Psi, top Psi of 175. Our unit features industrial ODP electric motors, condor pressure switch, manual ball valve tank drain, powder coated ASME tank 200 Psi rating, all paired with all cast iron 70000 hour. rated patented pressure lubricated reciprocating pump.

California Proposition 65 Warning.

Manuals

Installation Guide - PDF

Features

All steel connecting rods with replaceable rod bearing inserts, this allows our rods to be rebuilt! 99% of our competitors now use "throw-away" aluminum connecting rods in their pumps that have no re-build capability
Removable 100% cast iron cylinders, these solid cast iron cylinders are more stable under heavy workloads and do not warp from heat
All cast iron cylinder heads, cast iron heads are more durable and dependable for trouble free operation
Disc valve design" intake and exhaust valves, disc valves have been around for over 100 years and have been proven to perform
Top quality compression and oil rings, our rings ensure performance with low oil carry over (1-5 PPM)
Precision ground pistons machined to tight tolerances ensures low oil carry over
Premium "non-absorbent" gaskets prevent oil seepage from pump
Re-usable oil filter
Oil pressure gauge
Meets CSA, ASME, ETL standards

Specifications

Brand Name
EMAX
Air Volume (CFM)
38
Amperage (A)
40
Assembled Weight (lbs)
766
Average Air Consumption (CFM)
38
Compressor Design
Vertical
Country of Origin
China
Horsepower (hp)
10

MFG Part # (OEM)
EI10V080V1

Material
Solid Cast Iron Pump
Maximum Air Pressure (psi)
175
Maximum Pressure Rating (psi)
175
Maximum RPM
1750
Maximum Speed (rpm)
1750
Package Contents
Air Compressor
Phase
Single Phase

Product Condition
New

RPM
1750
Restrictions
CA Prop 65
Size
28 In. Length x 42 In. Width x 72 In. Height x 3/4 In. Tank Outlet Size
Tank Capacity (gal)
80

UPC
815002012056

Voltage
230 Volts
Warranty Type
1 Year
Weight (lbs)
766
