EMAX 230V 5HP 1PH 60 Gallon Vertical Piston Air Compressor

Name: EMAX 230V 5HP 1PH 60 Gallon Vertical Piston Air Compressor
Brand: EMAX
SKU: ESS05V060V1
Price: 3749.00 USD
Availability: InStock

SKU# ESS05V060V1

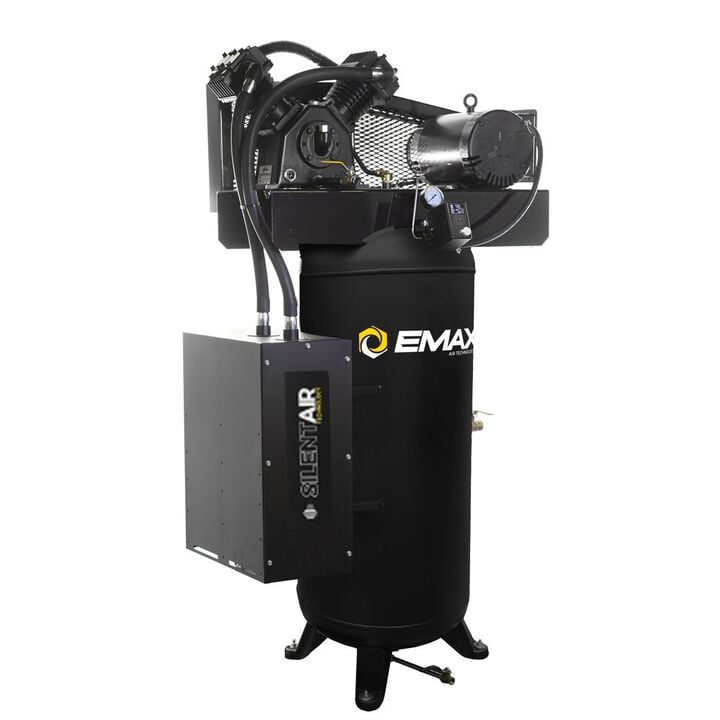

EMAX 230V 5HP 1PH 60 Gallon Vertical Piston Air Compressor, large image number 0

EMAX 230V 5HP 1PH 60 Gallon Vertical Piston Air Compressor, large image number 1

EMAX 230V 5HP 1PH 60 Gallon Vertical Piston Air Compressor, large image number 2

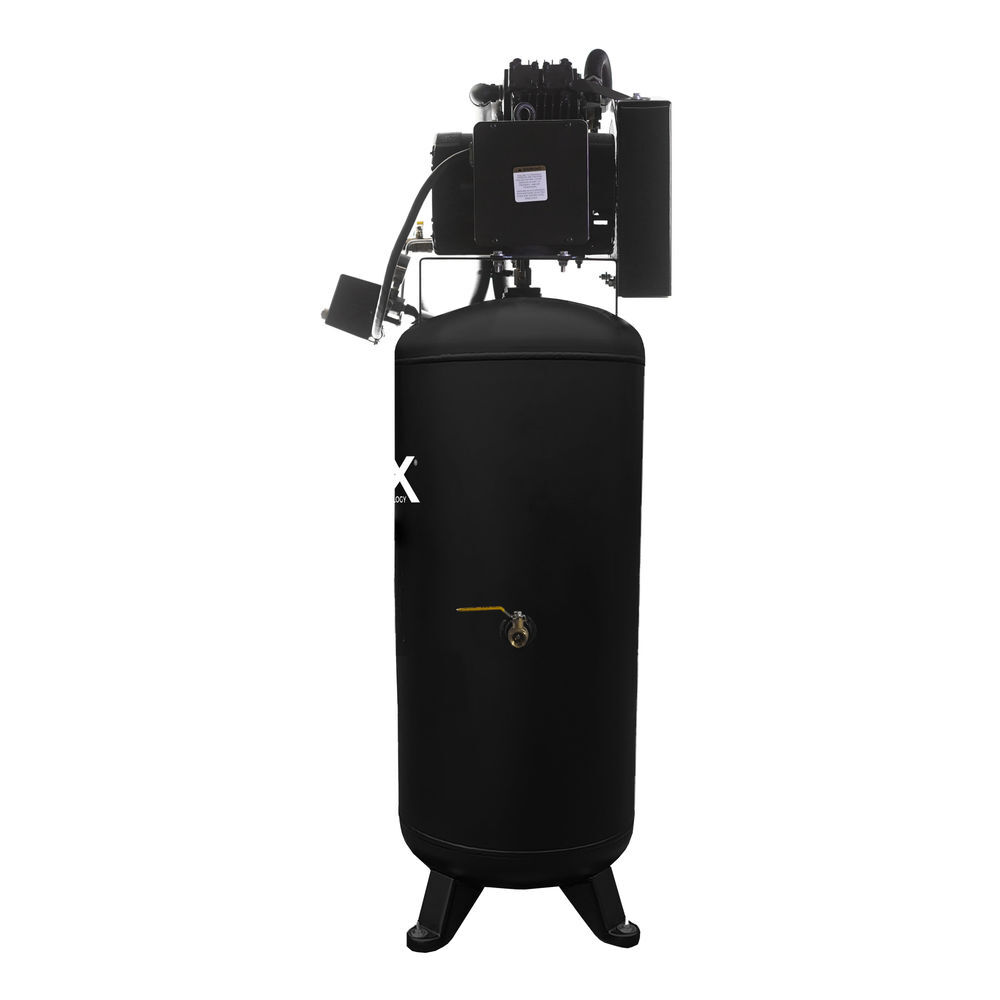

EMAX 230V 5HP 1PH 60 Gallon Vertical Piston Air Compressor, large image number 3

EMAX 230V 5HP 1PH 60 Gallon Vertical Piston Air Compressor, large image number 4

Made In USA

Freight Shipping Rates Apply

Calculated Delivery Rate at Checkout

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

EMAX 230V 5HP 1PH 60 Gallon Vertical Piston Air Compressor

EMAX

Please follow our Community Guidelines and be kind!

Description

EMAX 230V 5HP 1PH 60 Gallon Vertical Piston Air Compressor

Power your workshop with smooth, dependable compressed air from the robust EMAX ESS05V060V1 a 5HP, 60-gallon single-stage electric piston compressor designed for industrial and heavy-duty applications. With patented Silent Air technology, this compressor delivers performance and comfort by reducing operational noise without sacrificing air output.

California Proposition 65 Warning.

Manuals

Warranty - PDF

Features

Splash pump - Operation: Splash lubrication systems work by using rod dippers that pass through the oil in the crankcase when the pistons are moving and splash the oil up onto the cylinders and pistons to lubricate them. Although this method is effective, it's not precise. Parts of the pump may not be receiving enough oil. Where there is not enough oil, wear between critical components can become a costly issue… on the other hand too much oil can also be in issue as well. Viscosity: Viscosity of the oil becomes important with splash method as well, if the oil is not thick enough it will not cling to the dippers as needed. So, although effective it is becoming an outdated method. History: Traditional splash lubrication systems have been around since the first air compressor was produced

Silent Air - Noise Reduction: Our Patented Silent Air system works by dissipating compressor intake noise through a series of noise cancellation plates, reducing DBA ratings by up to 50%. Silent air compressors operate at a normal conversation level in comparison to traditional compressors that operate at the level of a police siren. Air Filtration: This low-profile system not only makes the compressor quieter but also adds four levels of air filtration. Silent Air Technology: Significantly lowers the risk of hearing damage. Decrease in employee turnover. Enhances workplace satisfaction

Belt drive - Our belt driven compressors are driven by V belts that allow you to adjust the pump speeds by changing pulley sizes

Meets ETL, ASME, CRN standards

Specifications

Brand Name

EMAX

Air Volume (CFM)

Assembled Weight (lbs)

585

Compressor Design

Vertical

Country of Origin

United States

ETL Listed

Yes

Horsepower (hp)

MFG Part # (OEM)

ESS05V060V1

Maximum Air Pressure (psi)

150

Maximum RPM

1740

Maximum Speed (rpm)

1740

Package Contents

Compressor with Isolator Pads, Splash Lube Pump, First Oil Change

Phase

Single Phase

Pressure Rating (psi)

150

Product Condition

New

Restrictions

CA Prop 65

Tank Capacity (gal)

UPC

810070052256

Warranty Type

1 Year

Weight (lbs)

585

EMAX 230V 5HP 1PH 60 Gallon Vertical Piston Air Compressor
