Ellis 10 Ft. 1HP Electric Mitre Band Saw, 2 Roller Support Stand Bundle

Name: Ellis 10 Ft. 1HP Electric Mitre Band Saw, 2 Roller Support Stand Bundle
Brand: Ellis
SKU: ATB000011272
Price: 4474.99 USD
Availability: InStock

SKU# 1600E-6252

Ellis 10 Ft. 1HP Electric Mitre Band Saw, 2 Roller Support Stand Bundle, large image number 0

Ellis 10 Ft. 1HP Electric Mitre Band Saw, 2 Roller Support Stand Bundle, large image number 1

Ellis 10 Ft. 1HP Electric Mitre Band Saw, 2 Roller Support Stand Bundle, large image number 2

Ellis 10 Ft. 1HP Electric Mitre Band Saw, 2 Roller Support Stand Bundle, large image number 3

Ellis 10 Ft. 1HP Electric Mitre Band Saw, 2 Roller Support Stand Bundle, large image number 4

Ellis 10 Ft. 1HP Electric Mitre Band Saw, 2 Roller Support Stand Bundle, large image number 5

Ellis 10 Ft. 1HP Electric Mitre Band Saw, 2 Roller Support Stand Bundle, large image number 6

Ellis 10 Ft. 1HP Electric Mitre Band Saw, 2 Roller Support Stand Bundle, large image number 7

+ 3 more

What's included

2 Items

Ellis 16in Mitering Band Saw

SKU# 1600

Item Count: 1

Secure Checkout

Ellis Built-in Support Stand with Length-Stop for Band Saws

SKU# 6252

Item Count: 1

Secure Checkout

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

Ellis 10 Ft. 1HP Electric Mitre Band Saw, 2 Roller Support Stand Bundle

Ellis

Please follow our Community Guidelines and be kind!

Description

Ellis 10 Ft. 1HP Electric Mitre Band Saw, 2 Roller Support Stand Bundle

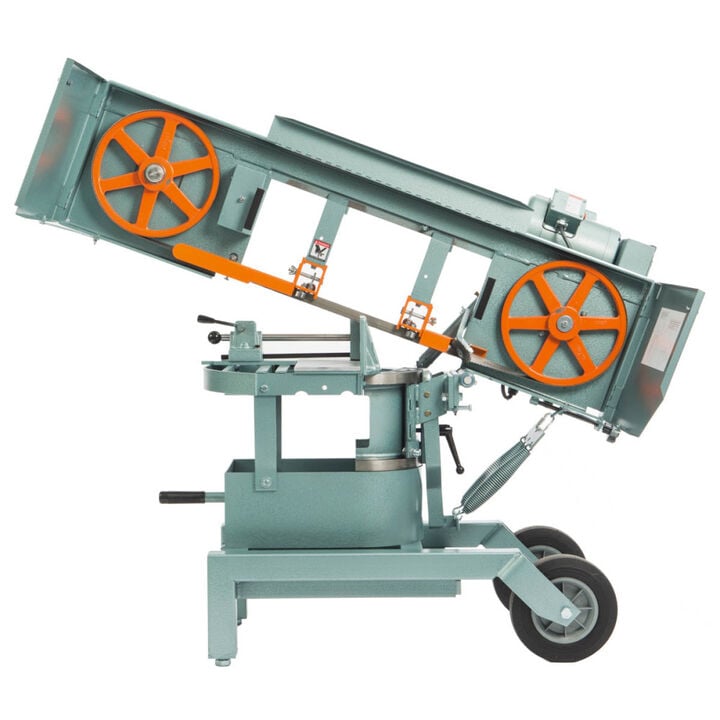

1600E: The Ellis 1600 band saw is very popular for its dual mitering capability, extremely large cutting capacity, and rugged durability. The material stays stationary for miter cuts, while the head rotates up to 45 degrees both left and right. Fast and accurate angle selection is possible with the built-in protractor. Head feed rate is controlled by the hydraulic control, which has a locking valve for setting up cuts. Material clamping and unclamping are quick and easy with the standard quick-acting vise. Ellis band saws are individually set up and tested at the factory including the blade break-in process to ensure you will be up and running fast. This workhorse saw will meet your needs in the shop or on the job site for years. 6252: The Ellis built-in stock stand is the most popular option for the 1600 and 1800 Mitering Head Band Saws. The Stock Stand mounts directly to the saw and extends approximately 2-1/2 Ft. out. Includes 2 In. feed rollers and a micro adjustable length stop.

California Proposition 65 Warning.

Manuals

Use and Care Manual - PDF

Features

1600E: Head of band saw moves left or right for angle cutting. Built-in protractor for fast and accurate selection of angles. One-step conversion from horizontal to vertical band saw. Stock remains in one position for all cuts. Portable-this band saw moves easily to the job site

6252: Steel construction. Clamps to saw. Micro adjuster length stop. Two rollers on ball bearings

1600E: Includes: (1) Mitre Band Saw, 5/7VT Bi-Metal Blade, Steel Base with Wheels, Quick Vise

6252: Includes: Stock Stand, Two Roller Assemblies, Adjustable Gauge Pipe & Micro-Adjuster Assembly

1600E: Capacity (90 deg & 45 deg): 10 In. Round at 90 deg, 8 In. Pipe at 90 deg, 11 In. Flat at 90 deg, 6-7/8 In. Round at 45 deg, 6 In. Pipe at 45 deg, 7-1/4 In. Flat at 45 deg, 10 In. Height x 8 In. Width at 90 deg, 8 In. Height x 6 In. Width at 45 deg

1600E: Blade Speeds: (3) 55-115-230 FPM, Blade Size:10 Ft.0 In. x 1 In., Feed Control: Hydraulic Adjusting, Vise: Quick Adjusting Camlock, Shut-Off: Automatic, Portable: 10 In. Wheels-Standard, Sealed Oil Bath Worm Gear: Standard, Removable Chip Tray : Standard

Handling charge included in the price

Specifications

Brand Name

Ellis

Assembled Weight (lbs)

545

Blade Length (in)

120

Blade Thickness (in)

Country of Origin

China

Horsepower (hp)

1600E:1

MFG Part # (OEM)

1600E-6252

Material

Heavy Steel

Package Contents

(1) Mitre Band Saw, 5/7VT Bi-Metal Blade, Steel Base with Wheels, Quick Vise, Stock Stand, Two Roller Assemblies, Adjustable Gauge Pipe & Micro-Adjuster Assembly

Phase

Single Phase
