Edwards 230V 3 Phase 55 Ton Ironworker with 10in Brake

Description

Edwards 230V 3 Phase 55 Ton Ironworker with 10in Brake

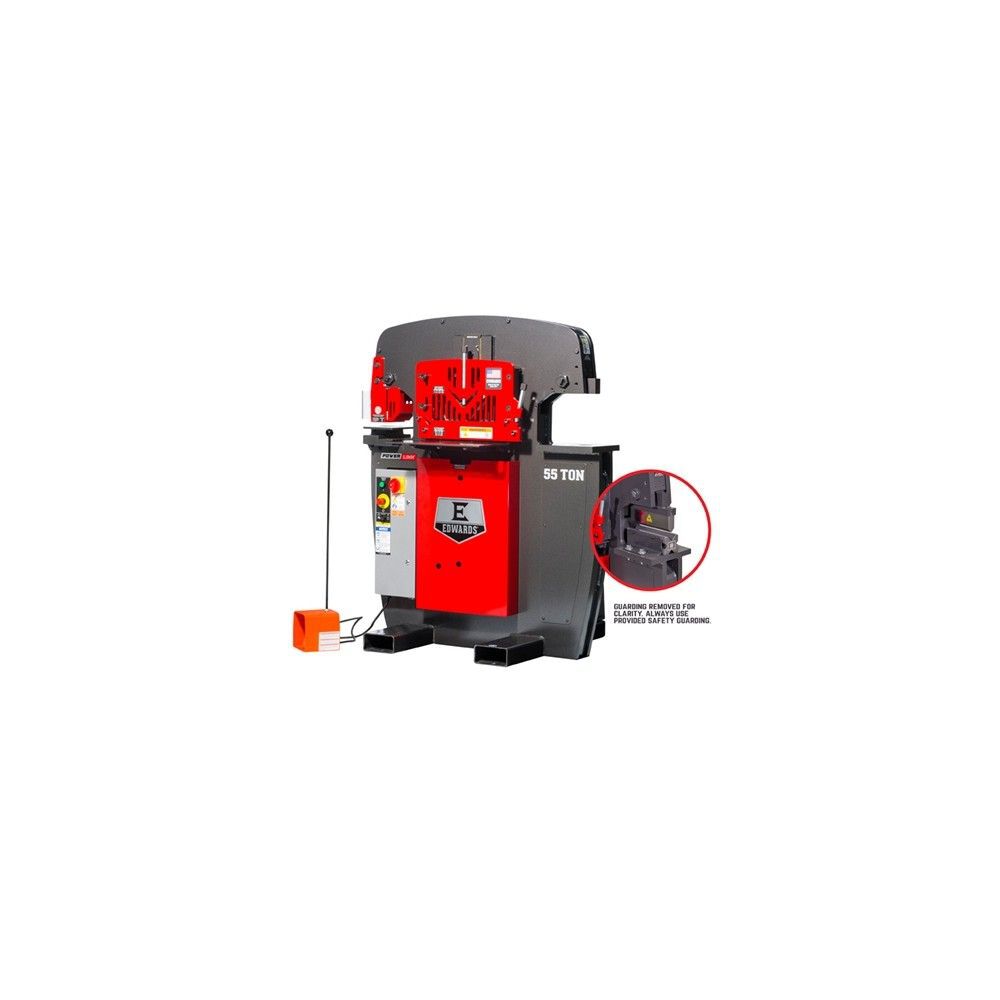

The Edwards 55 Ton Ironworker is well suited to fit the needs of any fab shop, large or small. Standard features include a punch assembly with pedestal die table, flat bar shear, angle shear and a universal open tooling station designed to accept optional tooling accessories. This 55 Ton Ironworker package includes a factory-installed 10 In. brake with 4-way die allowing 1/16 In., 1/8 In., 3/16 In. and 1/4 In. material to be formed to a 90 Deg angle.

Features

Four Workstations: Standard (3) - Punch, Flat bar shear & angle shear, Open (1) - Factory installed 10 In. brake

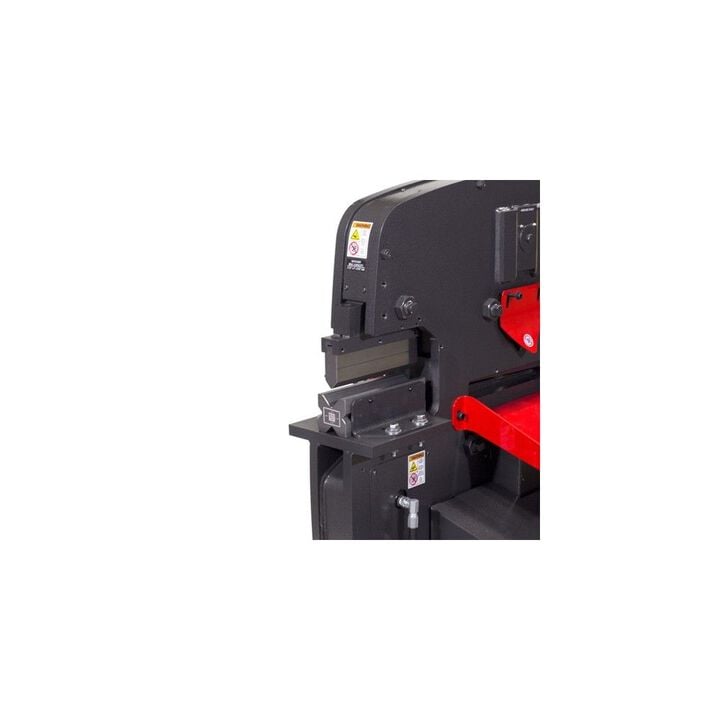

Includes a factory-installed 10 In. brake with 4-way die allowing 1/16 In., 1/8 In., 3/16 In. and 1/4 In. material to be formed to a 90 Deg angle
12 interchangeable attachments available
17 optional accessories available
ANSI B11.5-1988(02) compliant guarding
ETL certified controls
Integrated lock-out/tag-out system with E-Stop for added safety
Edwards 230V 3 Phase 55 Ton Ironworker with 10 In. Brake

Specifications

Brand Name
Edwards
Amperage (A)
14
ANSI Safety Listing
Yes
Assembled Weight (lbs)
2480
Country of Origin
United States
ETL Listed
Yes
Horsepower (hp)
5

MFG Part # (OEM)
ED9-55233022

Maximum Diameter (in)
1.0625 in
Maximum Pressure Rating (psi)
2500
Maximum RPM
1725
Package Contents
230V 3 Phase 55 Ton Ironworker with 10 In. Brake,Ironworker with 10 In. Brake,Notcher
Phase
3

Product Condition
New

Restrictions
CA Prop 65
Stroke Length (in)
1.25
UL Listed
Yes

UPC
731325763102

Voltage
230
Warranty Type
1 Year
Weight (lbs)
2480
Weight Capacity (lbs)
2480
