Edwards 230V 1 Phase 55 Ton Ironworker with PowerLink & 10in Brake

Description

Edwards 230V 1 Phase 55 Ton Ironworker with PowerLink & 10in Brake

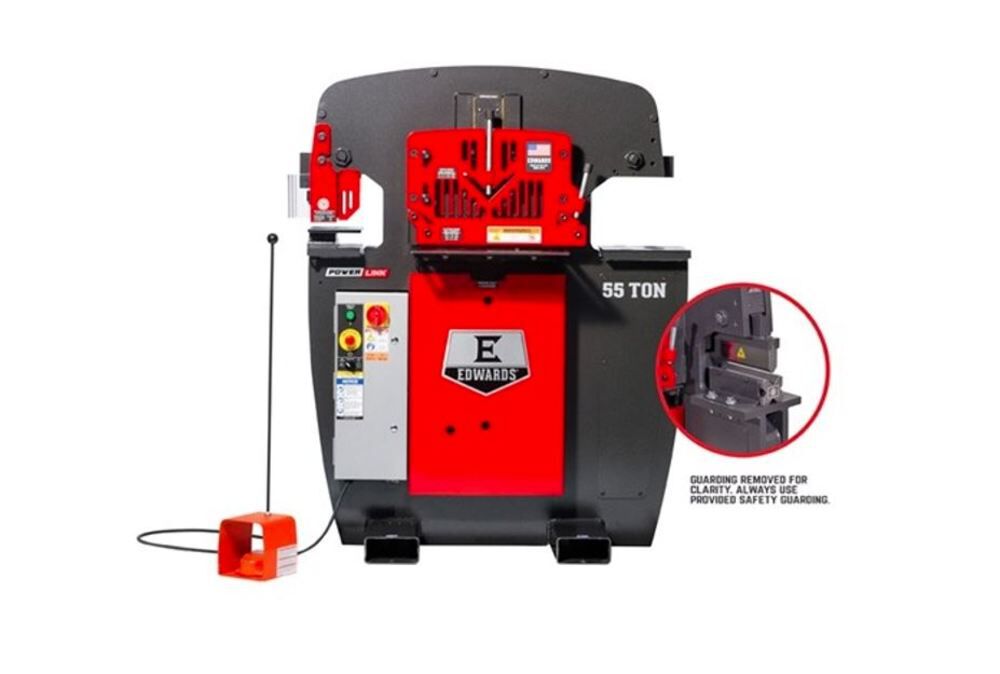

The Edwards 55 Ton Ironworker is well suited to fit the needs of any fab shop, large or small. Standard features include a punch assembly with pedestal die table, flat bar shear, angle shear and a universal open tooling station designed to accept optional tooling accessories. This 55 Ton Ironworker package includes a factory-installed 10 In. brake with 4-way die allowing 1/16 In., 1/8 In., 3/16 In. and 1/4 In. material to be formed to a 90 Deg angle.

Features

Four Workstations: Standard (3) - Punch, Flat bar shear & angle shear, Open (1) - Factory installed 10 In. brake

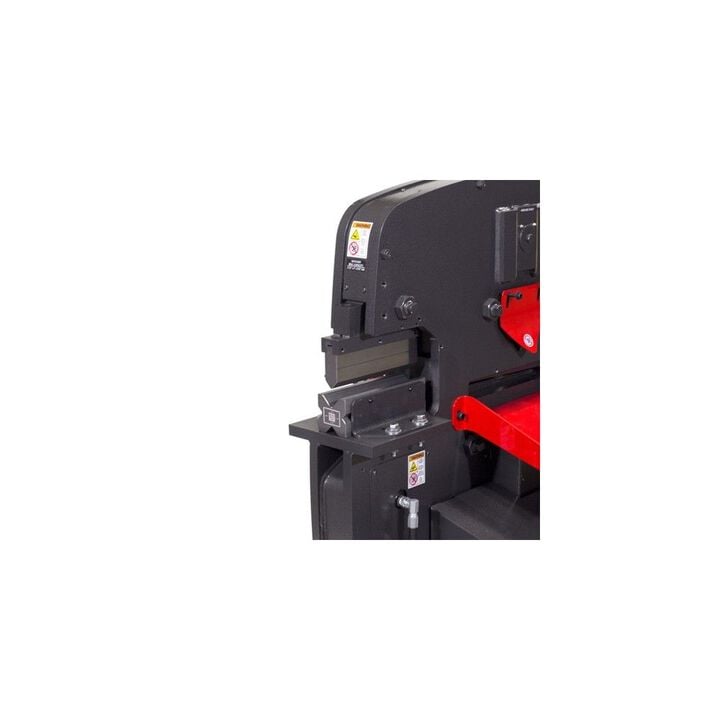

Includes a factory-installed 10 In. brake with 4-way die allowing 1/16 In., 1/8 In., 3/16 In. and 1/4 In. material to be formed to a 90 Deg angle
12 interchangeable attachments available
17 optional accessories available
ANSI B11.5-1988(02) compliant guarding
ETL certified controls
Integrated lock-out/tag-out system with E-Stop for added safety
The PowerLink system allows your Ironworker to act as a power source to our expanding line of innovative PowerLink hydraulic tools
Edwards 230V 1 Phase 55 Ton Ironworker with PowerLink & 10 In. Brake

Specifications

Brand Name
Edwards
Amperage (A)
23
ANSI Safety Listing
Yes
Assembled Weight (lbs)
2480
Country of Origin
United States
ETL Listed
Yes
Horsepower (hp)
5

MFG Part # (OEM)
ED9-55231522

Maximum Diameter (in)
1.0625 in
Maximum Pressure Rating (psi)
2500
Maximum RPM
1725
Package Contents
230V 1 Phase 55 Ton Ironworker with PowerLink & 10 In. Brake,Ironworker with PowerLink and 10 In. Brake,Notcher
Phase
1

Product Condition
New

Restrictions
CA Prop 65
Stroke Length (in)
1.25
UL Listed
Yes

UPC
731325763096

Voltage
230
Warranty Type
1 Year
Weight (lbs)
2480
Weight Capacity (lbs)
2480
