Product Details

Eagle Compressor 7.5 HP 80 Gallon Vertical Stationary Electric Air Compressor

Description

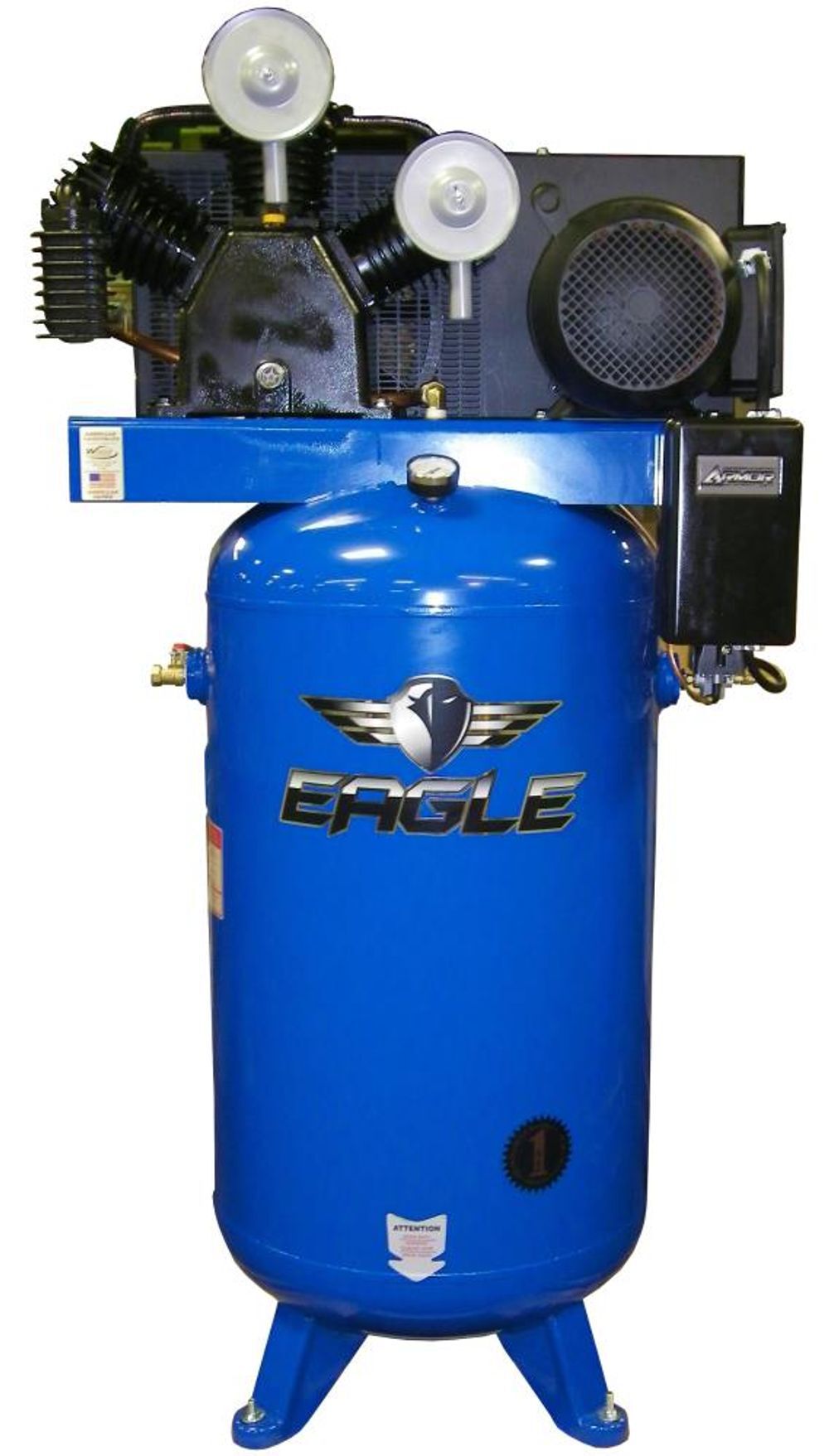

Eagle Compressor 7.5 HP 80 Gallon Vertical Stationary Electric Air Compressor

Eagle 7180V2-MS 80 Gallon ASME vertical stationary capacity tank. Thermally protected 7.5 HP single phase, 208/230 volt electric motor. Cast iron cylinders with V design. Oil lube compressor delivers 24 CFM at 100 PSI. 175 Maximum PSI. Easy view oil sight gauge. Metal air filers with “auto drop” feature. Efficient heat removal from the fly wheel for cooler running and longer life. Sturdy metal belt guard. 3/4" outlet ball valve included.

View Warning Label

Features

Thermally protected 7.5HP single phase 208/230 volt electric motor
80 Gallon ASME registered tank, 175 PSI rating
Cast iron cylinders with "V" design minimizes vibration
175 Maximum rated PSI
Heavy duty pressure switch has on/off control
Convenient oil drain on front of unit
Easy view oil sign gauge
High efficiency reed valves for maximum performance. Single Phase.

Specifications

Brand Name
Eagle Compressor
Air Compressor Pump Design
Oil Lubricated
Amperage (A)
0
Assembled Weight (lbs)
559
California Proposition 65 Warning Required
Yes
Color
Blue
Compressor Design
Vertical
Country of Origin
United States
CSA Certified
No
ETL Listed
No
Height (in)
66
Horsepower (hp)
7.5
Length
23 in

MFG Part # (OEM)
7180V2-MS

Maximum Pressure Rating (psi)
175
Operating Position
Vertical
Package Contents
7.5 HP 80 Gallon Vertical Stationary Electric Air Compressor
Phase
1

Product Condition
New

Tank Capacity (gal)
80
Tank Configuration
Single
Tank Material
Metal
Tank Pressure Gauge
Yes
UL Listed
No

UPC
777589002502

Voltage
208/230
Warranty Type
1 Year
Weight (lbs)
452
Wheeled
No
