Diamond C 22 Ft. x 102 In. Heavy Duty Deck Over Equipment Trailer with Max Ramps

Diamond C

Please follow our Community Guidelines and be kind!

Description

Diamond C 22 Ft. x 102 In. Heavy Duty Deck Over Equipment Trailer with Max Ramps

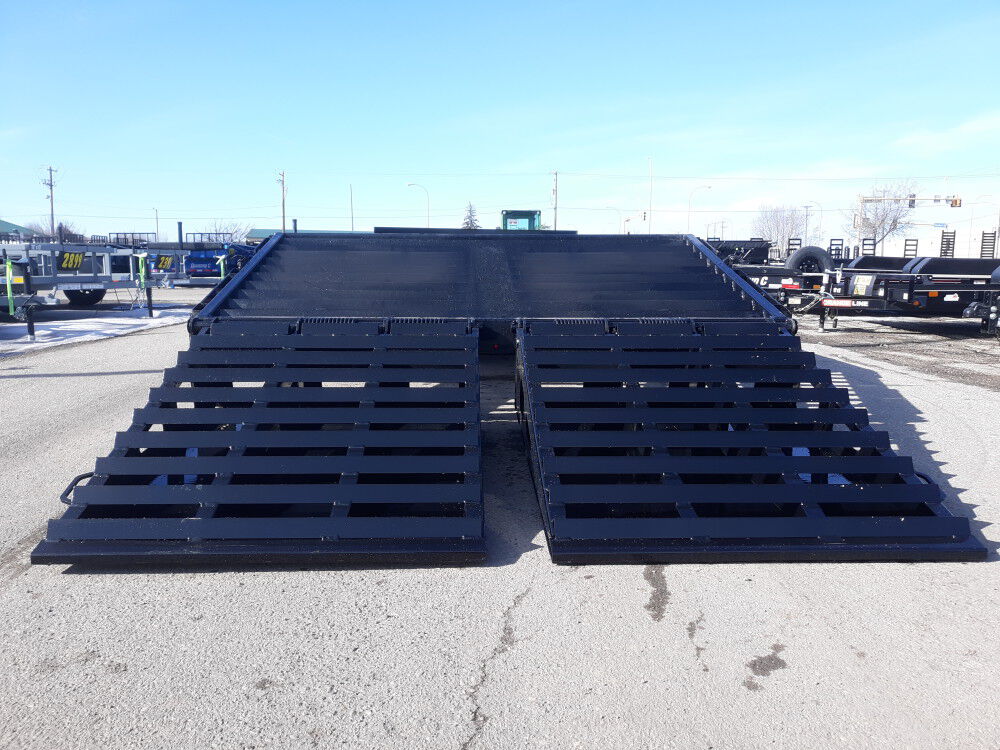

Diamond C 22 Ft. Heavy Duty Deck Over Equipment Trailer in black features two 7,000 lb axles, 21K Demco coupler, and 12K drop leg jack. Max Ramps are 44" wide for maximum versatility with an innovative two-point ramp hinge system. HD spring loaded for easy lifting from the deck and the ground. When in the stowed position, Max Ramps provide a flat, unobstructed loading surface, which allows you to the use full length of the trailed bed to haul longer material. Max Ramps can also be stowed in the upright position during transport if you have equipment with a pull behind mower for example that needs to be transported on the dovetail. This DEC deck over 8″ I-Beam heavy duty hauler is a beast. Difference Maker DM Coating System produces extraordinary trailer finishes that are exceptionally durable and beautiful. Model DEC is perfect for side loading materials like building supplies, hay, and pallet goods. Haul your skid steer or loader tractor with ease and confidence. The DEC is ready for just about anything you can throw at it.

California Proposition 65 Warning.

Manuals

Specification - PDF

Brochure - PDF

Features

Two 7,000 lb Super Lube Axles

8” x 10 lb I-Beam Frame

44" wide Max Ramps

2-5/16" 21K Demco Coupler

12K Dropleg Jack

2” x 3/8” Rub Rail w/Stake Pockets Pipe Spools

Tongue: 8” x 10 lb I-Beam, Integral w/ Frame

22 Ft. x 102 In. Heavy Duty Deck Over Equipment Trailer with Max Ramps

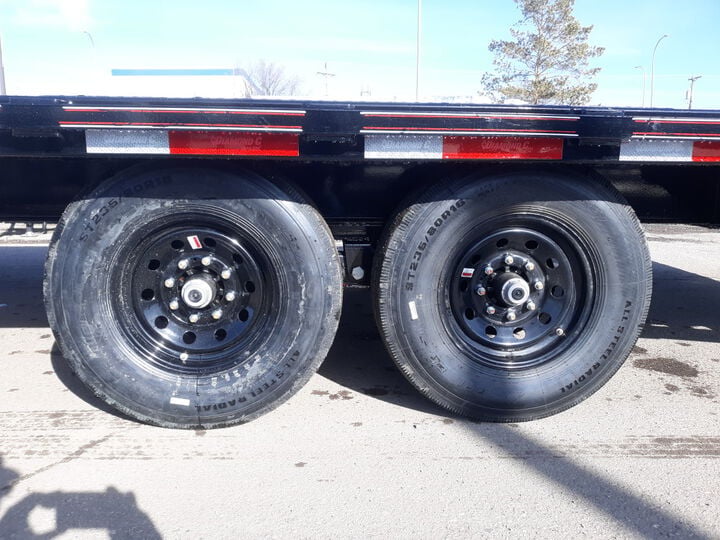

ST235/80R16 Radial Tires

Spare Mount

Specifications

Brand Name

Diamond C

Assembled Depth (in)

338.5

Assembled Weight (lbs)

Assembled Width (in)

102

Ball Size

2-5/16"

California Proposition 65 Warning Required

Yes

Color

Black

Country of Origin

United States

Length

22 ft

MFG Part # (OEM)

DEC207L22X102MR

Material

Steel

Package Contents

DEC207L22X102MR,Jack

Product Condition

New

Restrictions

CA Prop 65

Tire Size

ST235/80R16 Radial

UPC

404002001988

Warranty Type

3 Years Limited

Weight (lbs)

Part Number

DEC207L22X102MR
