DEWALT Thickness Planer 13in 2 Speed 3 Knife
DEWALT

Please follow our Community Guidelines and be kind!

Description

DEWALT Thickness Planer 13in 2 Speed 3 Knife

This heavy-duty thickness planer features 120V AC, 15 amp, and a 10,000 RPM three-knife cutter-head. Built-in carriage lock prevents snipe by assuring minimal carriage movement on four posts while material is feeding. The 19-3/4-in cast base delivers two times the rigidity of existing planers with folding tables. The 2-speed gearbox allows for 96 or 179 cuts per inch for better surface finish and longer knife life. Also features fan-assisted chip ejection which prolongs knife life and assists dust collection with chip removal.

California Proposition 65 Warning.
View Warning Label

Manuals

Use and Care Manual - PDF
Warranty - PDF

Features

Includes dust hose adapter, thickness planer crank handle, and blade change T-wrench
Extra-large turret depth stop allows user to return to most frequently used thicknesses with ease

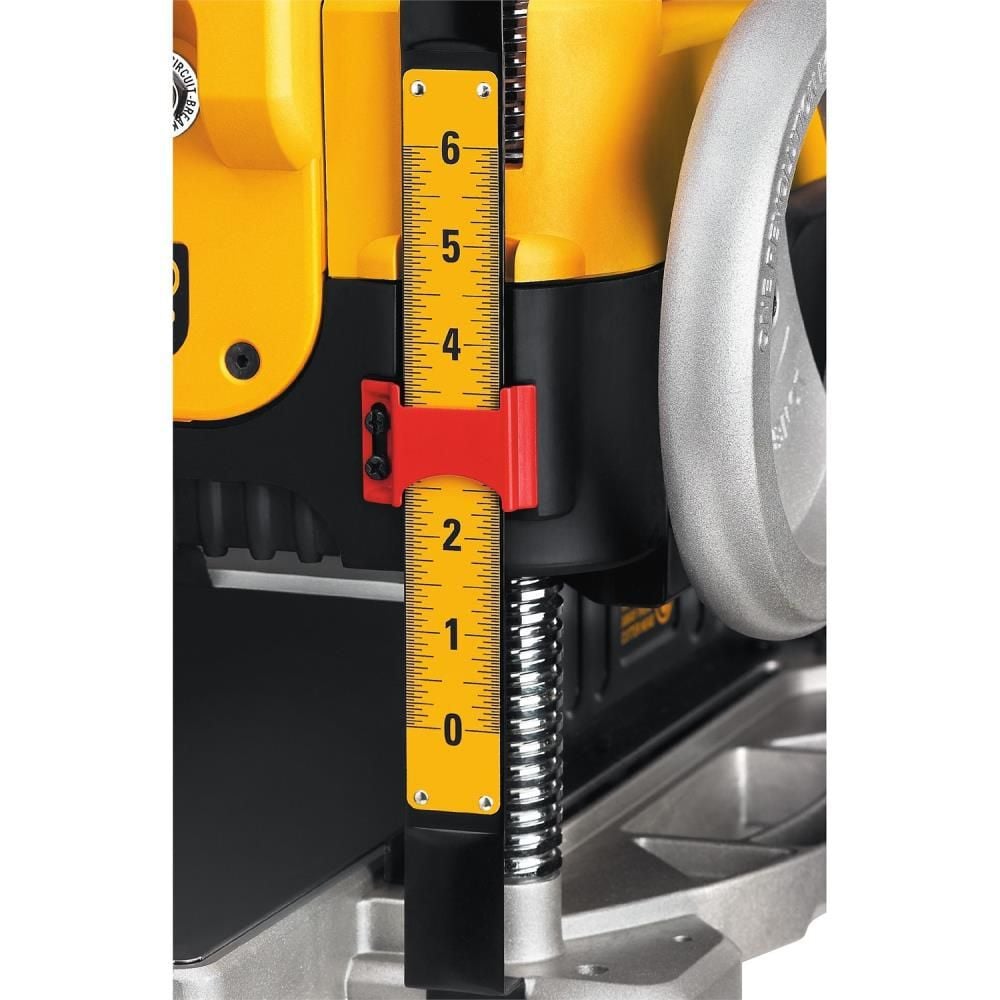

Material removal gauge and extra-large thickness scale deliver accurate cuts with every pass
Automatic carriage lock reduces the movement that causes snipe without the need for manual engagement by the user
19-3/4-in cast aluminum base is 2X more rigid than a standard 10-in base and folding tables

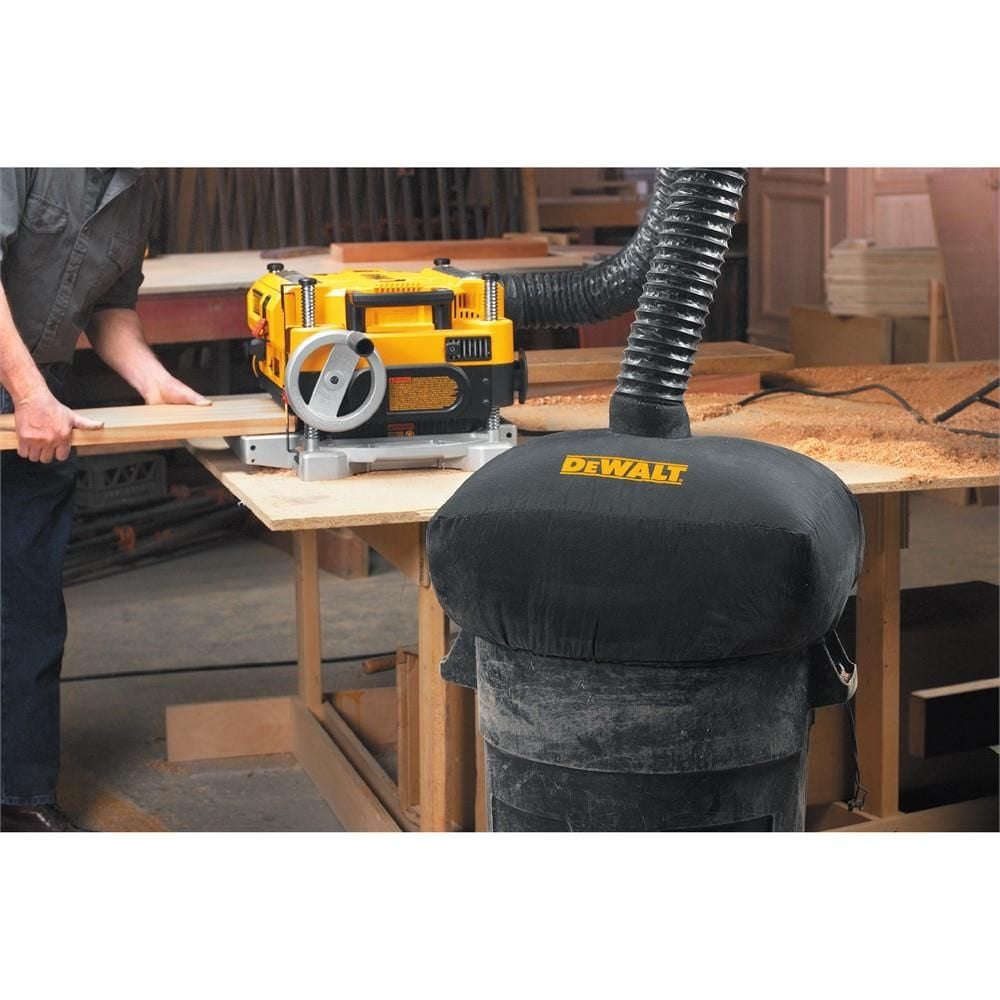

Fan-assisted chip ejection vacuums chips off of the cutter-head and exhausts them out of the machine

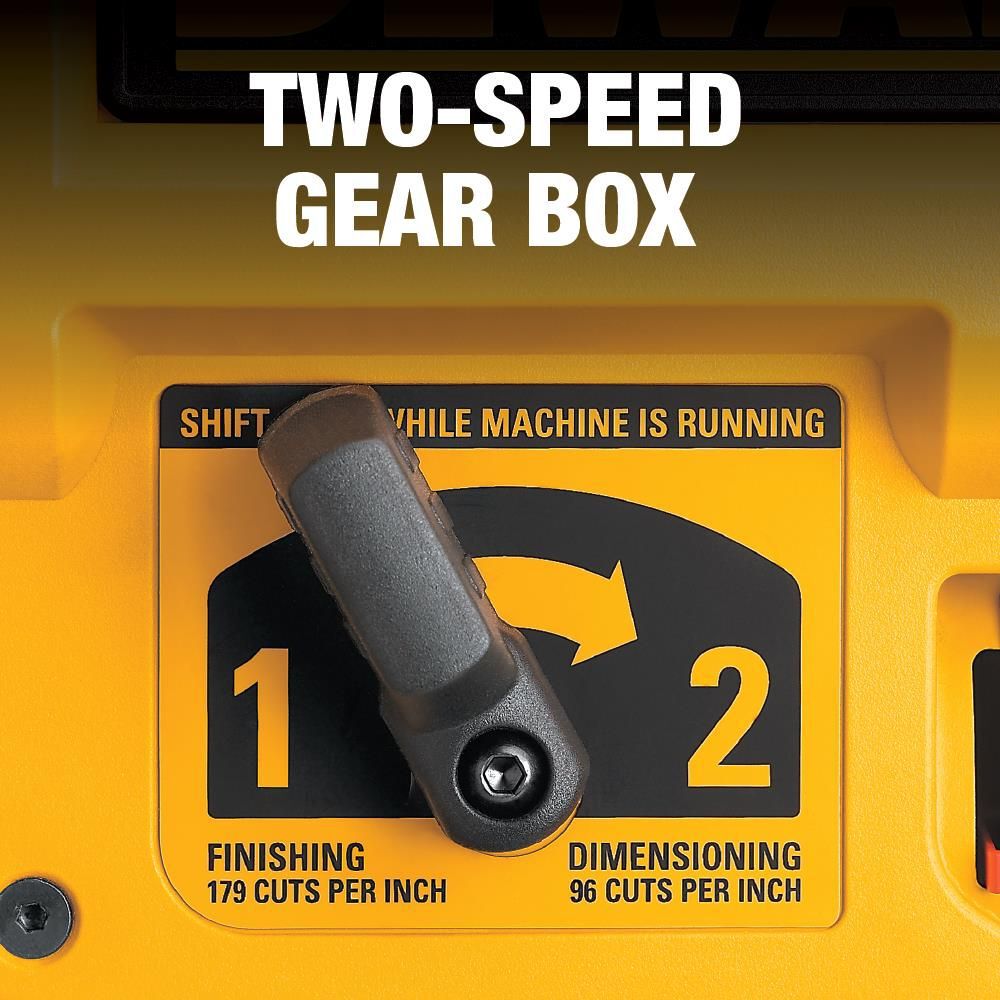

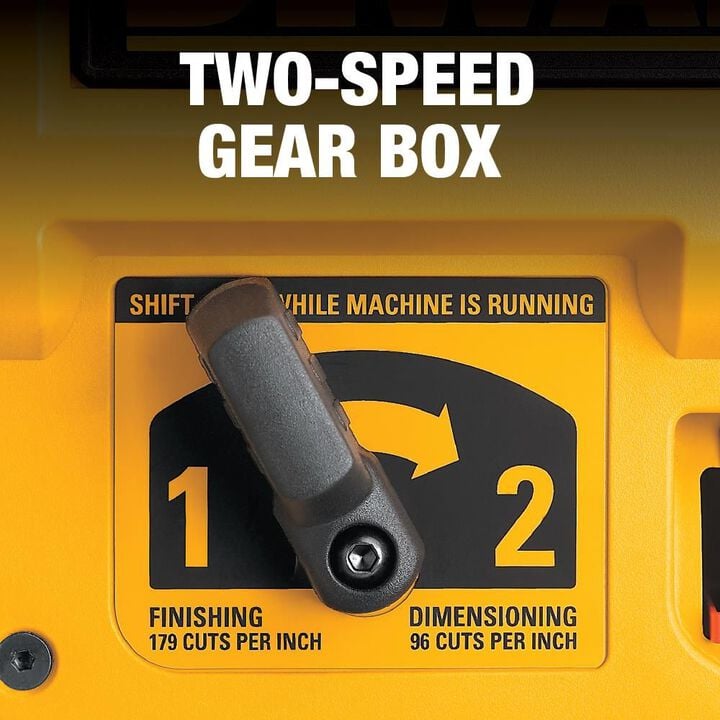

2-speed gear box allows users to change feed speed to optimizing cuts per inch at 96 or 179 CPI

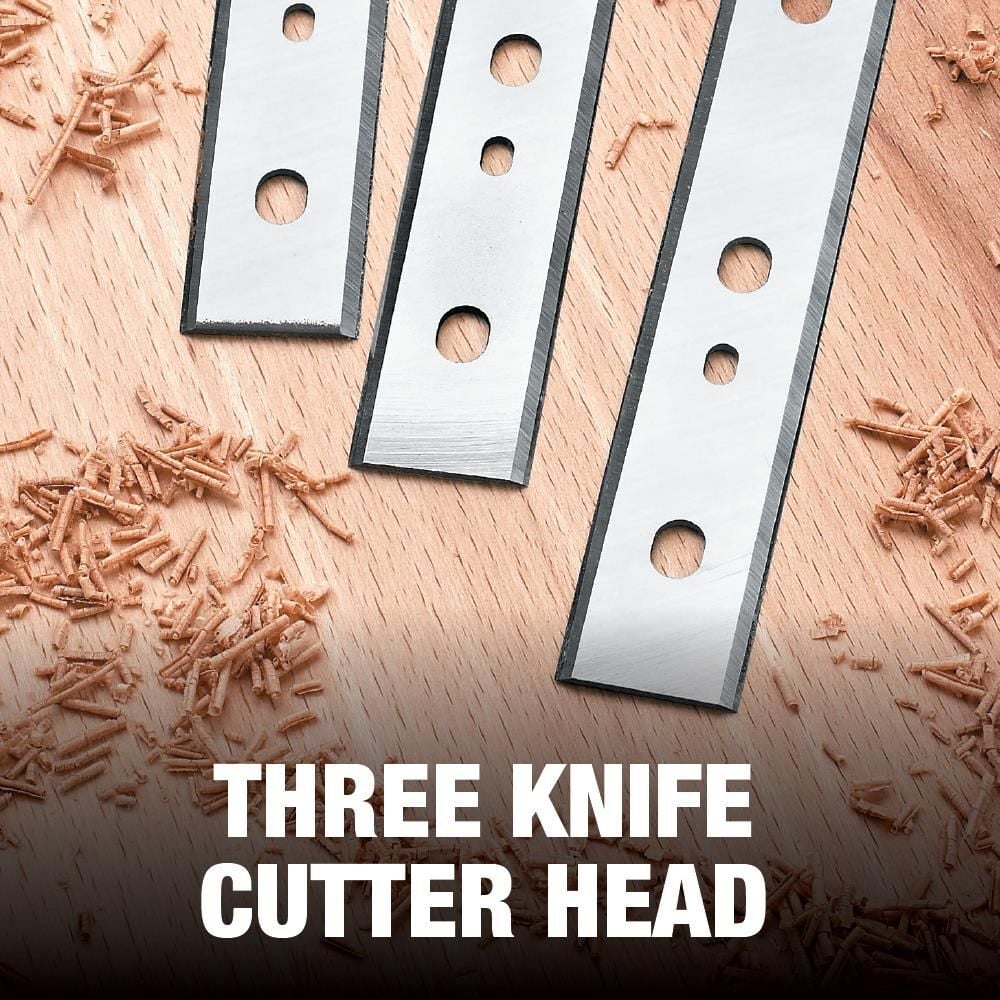

3-knife cutter-head with 10,000 RPM cutter head speed delivers 30% longer knife life and makes knife change faster and easier

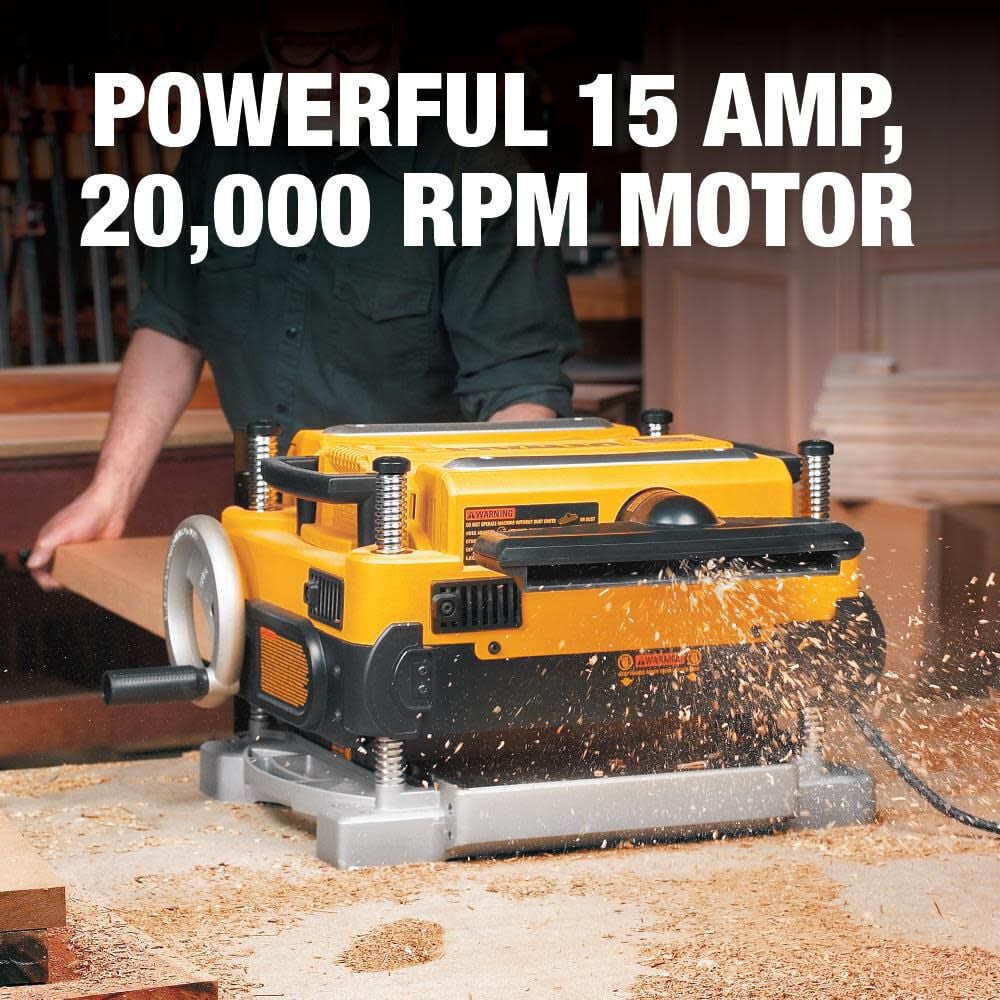

Powerful 15-amp, 20,000 RPM motor handles larger cuts in wider materials with ease

Specifications

Brand Name
DEWALT
Amperage (A)
15.0
Assembled Weight (lbs)
47.8
Bench or Stationary
Bench
Blade Count
3
Blade Type
Planer Knife
California Proposition 65 Warning Required
Yes
Color
Yellow
Country of Origin
Taiwan
CSA Certified
Yes
Drive Motor System
Electric
ETL Listed
No
Height (in)
18.0
Horsepower (hp)
Universal Motor
Length
13 in
Lock-on Switch
Yes
Maximum Cutting Depth (in)
0.125
Maximum RPM
20000.0
Maximum Width Cutting Capacity (in)
13.0
Overall Weight (lbs)
92.0
Package Contents
Dust hose adapter; Dust-ejection chute

Product Condition
New

Reversible
Yes
Switch Type
Speed Gear Box
UL Listed
Yes
Variable Speed
Yes
Voltage
110 Volts
Warranty Type
3 Year Limited, 1 Year Free Service, 90 Day Money Back
Weight (lbs)
91.75
