DEWALT 80 Gallon Stationary Electric Air Compressor
DEWALT

Please follow our Community Guidelines and be kind!

Description

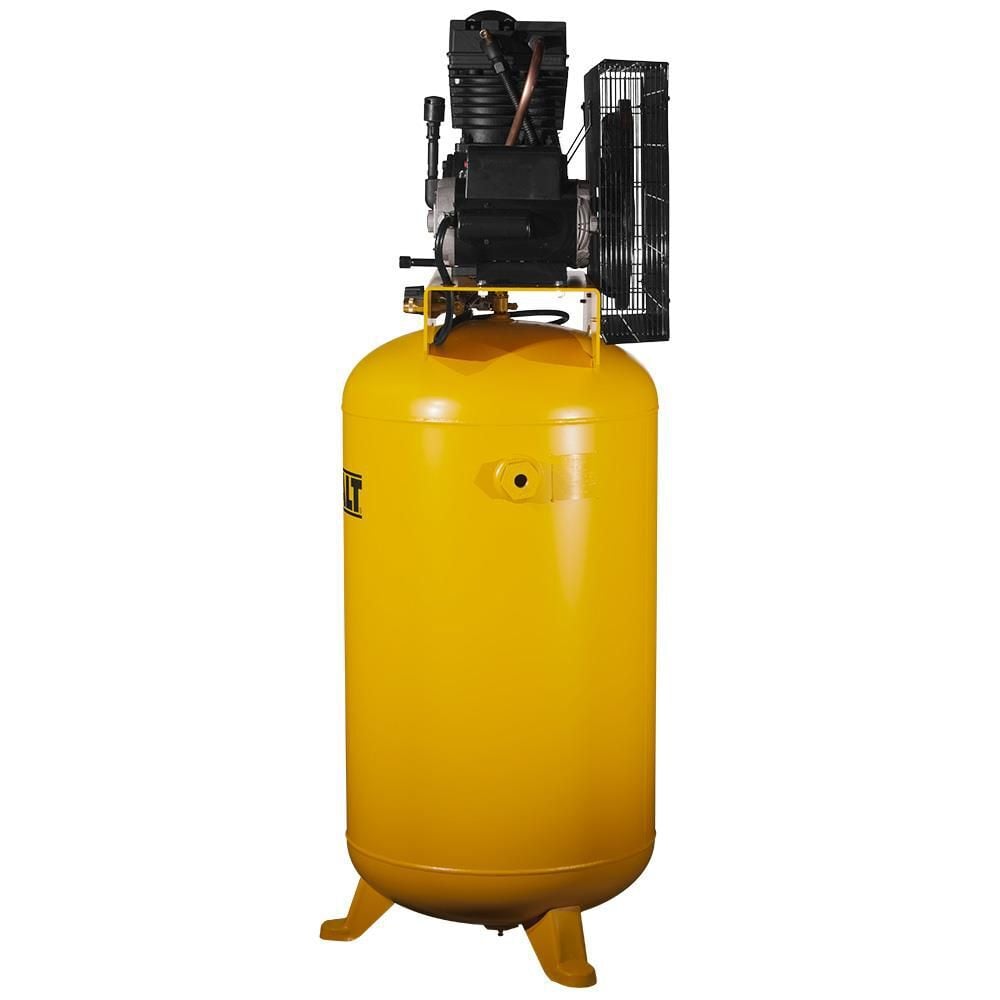

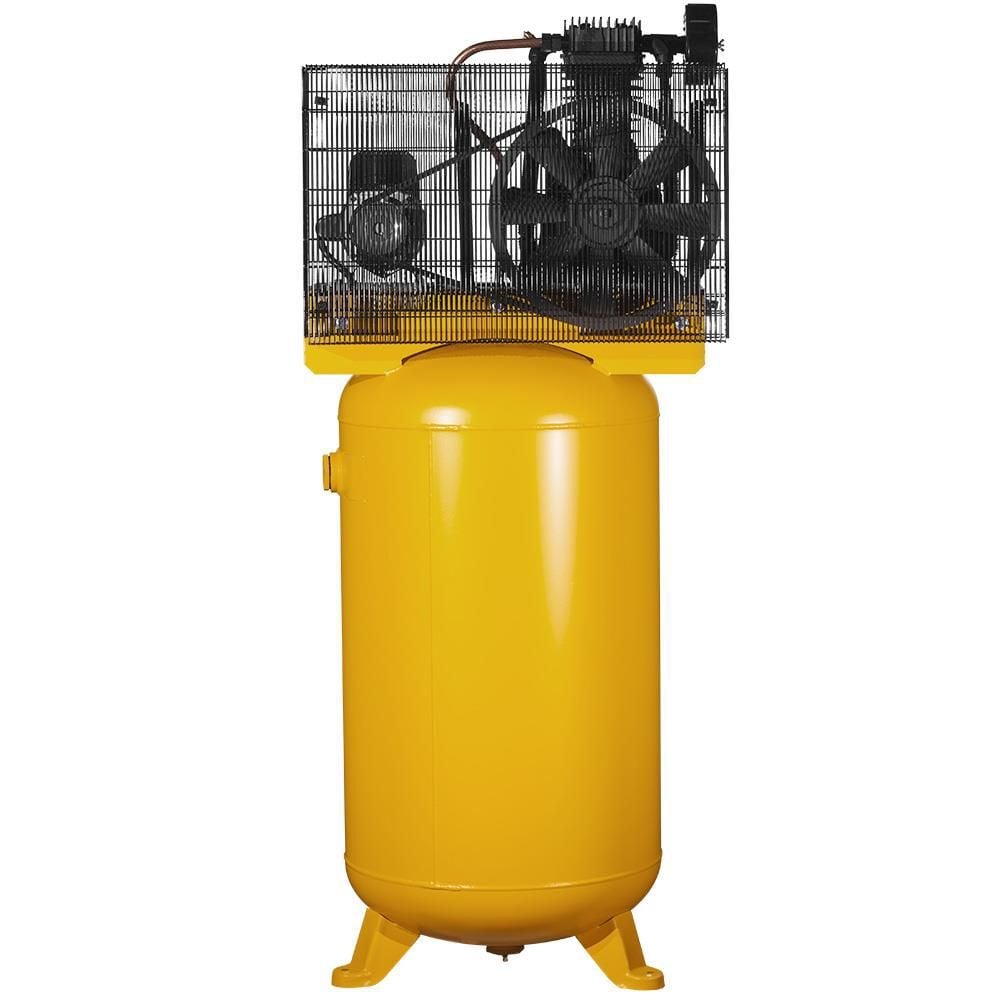

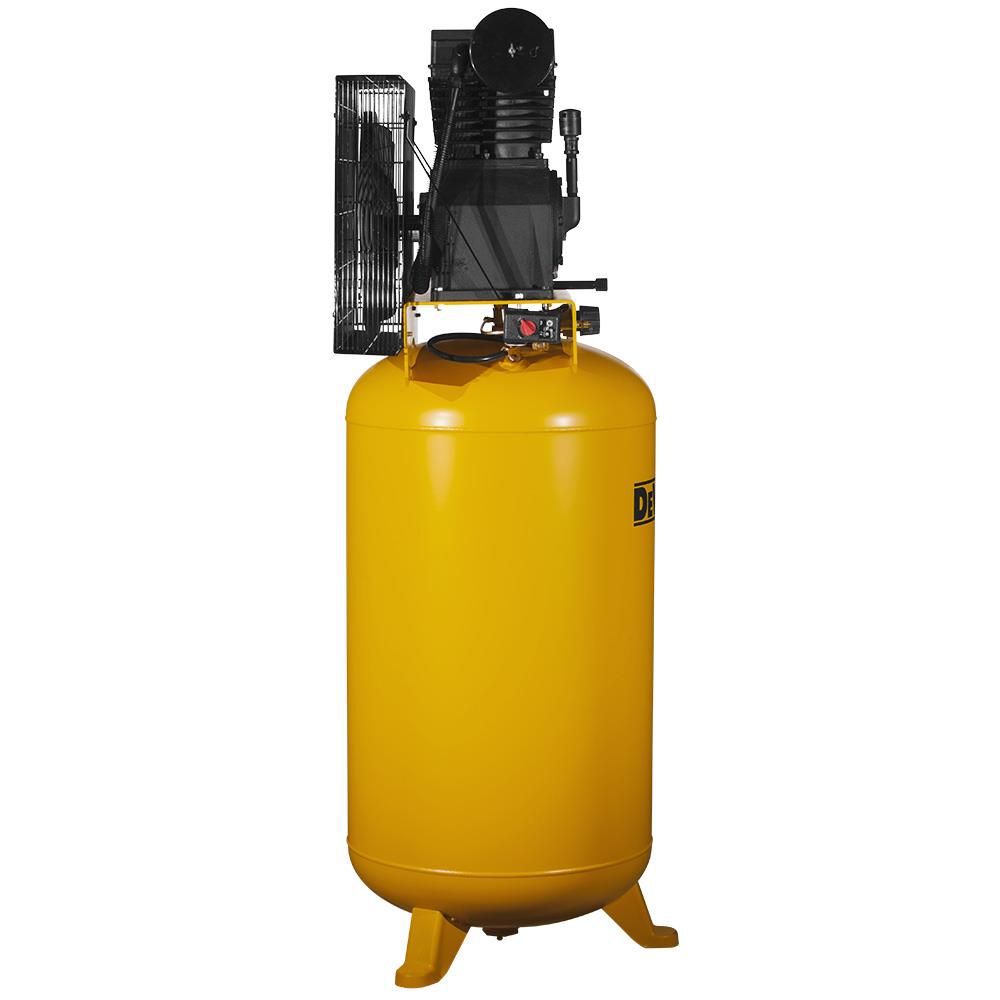

DEWALT 80 Gallon Stationary Electric Air Compressor

DEWALT® DXCMV5048055 5 HP 80 Gallon Industrial Air compressor is a heavy-duty stationary air compressor engineered for demanding applications. With the ability to deliver air at a maximum of 175 PSI, this unit can effectively power more than one air tool or device simultaneously, delivering airflow of 18.3 SCFM @ 40 PSI, 18 SCFM @ 90 PSI, and 17 SCFM @ 175 PSI. The expertly engineered 5.0 horsepower, 230 volt electric motor is fitted with a TOPS thermal overload protection system that protects the motor from voltage fluctuations. The rugged cast iron, two-stage pump is built for durability with hardened-steel disc valves, oversized taper roller bearings, splash lubrication, and a expertly balanced cast iron flywheel. Easy operation is provided by a conveniently integrated control panel that includes tank and working pressure gauges, airflow regulator, two quick-connect air outlets, and a pressure relief valve. The 80 gallon ASME certified air tank holds more air for longer runtimes on multiple air tools.

California Proposition 65 Warning.
View Warning Label

Manuals

Use and Care Manual - PDF
Warranty - PDF

Features

Built with a 5 HP, 230 Volt, 22 Amp, 1 Phase TOPS motor to provide long life and quiet operation
An integrated control panel includes a tank and pressure gauge and 2 quick-connect couplers
Delivers 18.3 SCFM @ 40 PSI, 18 SCFM @ 90 PSI, and 17 SCFM @ 175 PSI -- plenty of air to run multiple tools at the same time to get the job done faster
Thermal overload protection system motor protects the motor from voltage fluctuations
Comes from the factory pre-filled with synthetic blended oil
Built to perform with a patented pump design that provides longer life by running cooler
Large capacity 80 gallon ASME certified tank for long air tool runtimes

Specifications

Brand Name
DEWALT
Air Compressor Pump Design
Oil Lubricated
Air Volume (CFM)
17.9 CFM @ 100 PSI; 17.0 CFM @ 175 PSI
Amperage (A)
24.0
Application
Air Brushing, Blow Cleaning, Bolting, Brad Nailing, Cutting, Drilling, Finish Nailing, Framing Nailing, Grinding, HVLP Painting, Hobby Nailing, Hobby Painting, Inflation, Roof Nailing, Sanding, Spraying, Stapling, Surface Prep, Wrenching
Assembled Weight (lbs)
470
California Proposition 65 Warning Required
Yes
Color
Yellow
Compressor Design
Vertical
Country of Origin
United States
CSA Certified
Yes
Decibel Rating (dB)
81
ETL Listed
No
Fuel Type
Electric
Height (in)
80
Horsepower (hp)
5.0
Length
34.75 in

MFG Part # (OEM)
DXCMV5048055

Maximum Air Pressure (psi)
175
Maximum Pressure Rating (psi)
175
Operating Position
Vertical
Package Contents
compressor, manual
Phase
1
Pressure Rating (psi)
175

Product Condition
New

Tank Capacity (gal)
80
Tank Configuration
Single
Tank Material
Steel
Tank Pressure Gauge
Yes
UL Listed
No

UPC
846212008638

Voltage
230
Warranty Type
2 Years Limited
Weight (lbs)
470
Wheeled
No
