DEWALT 6 gal 165 PSI Pancake Compressor

SKU# DWFP55126

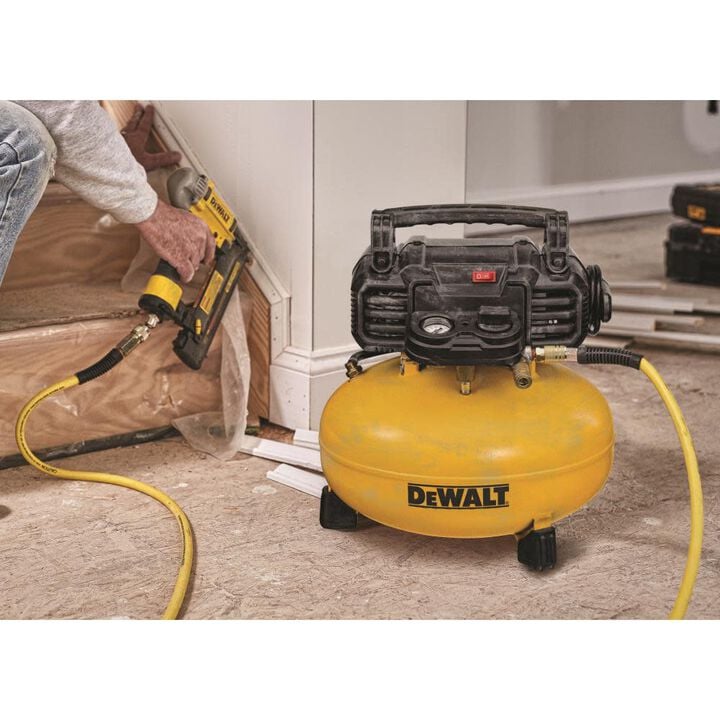

DEWALT 6 gal 165 PSI Pancake Compressor, large image number 0
DEWALT 6 gal 165 PSI Pancake Compressor, large image number 1
DEWALT 6 gal 165 PSI Pancake Compressor, large image number 2
DEWALT 6 gal 165 PSI Pancake Compressor, large image number 3
Previous Next
Discontinued by Manufacturer
Contact for more Information: 877-345-2263

Replacement or Similar Product

DEWALT 6 Gallon 165 PSI Electric Pancake Air Compressor
$198.99

Product Details

DEWALT 6 gal 165 PSI Pancake Compressor
DEWALT

Please follow our Community Guidelines and be kind!

Description

DEWALT 6 gal 165 PSI Pancake Compressor

The DEWALT® Heavy Duty 165 PSI Pancake Compressor gives 165 pounds per square inch of force, and has a 6-gallon tank for productivity-promoting longer runtime. Noise level is kept to a minimum at 75.5 decibels, and the cord wrap and light weight of 30 pounds make it easy to carry and store on jobsites. Quick and thorough tank draining is achieved for this heavy duty compressor through the ball drain valve. There are two universal couplers in order to support two users at once, and the high flow regulator gives increased performance to keep up with this. An oil-free pump helps to keep maintenance to a minimum. Console covers keep dust away from the controls, but are easily removable in case the DEWALT pancake compressor needs repairs. The efficient motor gives easy start up even in cold weather.

California Proposition 65 Warning.
View Warning Label

Features

165 max PSI 6.0 gallon tank (22.7 L) and 2.6 SCFM delivered at 90 PSI pump, enable long tool run time with quick recovery
High efficiency motor for easy start up in cold weather or extension cord application [14 ga or larger, 50 ft (15.2 m) or less]
75.5 dBA noise level for a quiet work environment
High flow regulator and couplers to maximize air tool performance
Long life oil free pump for maintenance free operation
Console cover protects controls and is removable to allow easy repair
Outlet tube rerouted to avoid being catch point
2 universal couplers to easily support two users
Ball drain valve for quick and thorough tank draining
1-year limited warranty

Specifications

Brand Name
DEWALT
Air Compressor Pump Design
Oil Free
Amperage (A)
10.0
Assembled Weight (lbs)
30.0
California Proposition 65 Warning Required
Yes
Color
Yellow
Compressor Design
Pancake
Country of Origin
United States
CSA Certified
No
Decibel Rating (dB)
75.5
ETL Listed
No
Height (in)
17.5
Horsepower (hp)
0.9
Length
16 in

MFG Part # (OEM)
DWFP55126

Maximum Pressure Rating (psi)
165.0
Operating Position
Horizontal
Package Contents
6 gal 165 PSI Pancake Compressor
Phase
1

Product Condition
New

Tank Capacity (gal)
6.0
Tank Configuration
Single
Tank Material
Metal
Tank Pressure Gauge
Yes
UL Listed
No

UPC
885911351409

Voltage
120
Warranty Type
1 Year Limited
Weight (lbs)
30.0
Wheeled
No
