DEWALT 1/3 HP SSTL/Cast Iron Vertical Sump Pump

SKU# DXWP62383
5 out of 5 Customer Rating
DEWALT 1/3 HP SSTL/Cast Iron Vertical Sump Pump, large image number 0
DEWALT 1/3 HP SSTL/Cast Iron Vertical Sump Pump, large image number 1
DEWALT 1/3 HP SSTL/Cast Iron Vertical Sump Pump, large image number 2
DEWALT 1/3 HP SSTL/Cast Iron Vertical Sump Pump, large image number 3
DEWALT 1/3 HP SSTL/Cast Iron Vertical Sump Pump, large image number 4
DEWALT 1/3 HP SSTL/Cast Iron Vertical Sump Pump, large image number 5
DEWALT 1/3 HP SSTL/Cast Iron Vertical Sump Pump, large image number 6
DEWALT 1/3 HP SSTL/Cast Iron Vertical Sump Pump, large image number 7
DEWALT 1/3 HP SSTL/Cast Iron Vertical Sump Pump, large image number 8
DEWALT 1/3 HP SSTL/Cast Iron Vertical Sump Pump, large image number 9
DEWALT 1/3 HP SSTL/Cast Iron Vertical Sump Pump, large image number 10
Previous Next
+ 6 more
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA
  Free Shipping (Ground shipping to lower 48)
DEWALT 1/3 HP SSTL/Cast Iron Vertical Sump Pump
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Qty
Secure Checkout
Affirm
Pay as low as $20/mo.
with Affirm

Product Details

DEWALT 1/3 HP SSTL/Cast Iron Vertical Sump Pump
DEWALT

Please follow our Community Guidelines and be kind!

Description

DEWALT 1/3 HP SSTL/Cast Iron Vertical Sump Pump

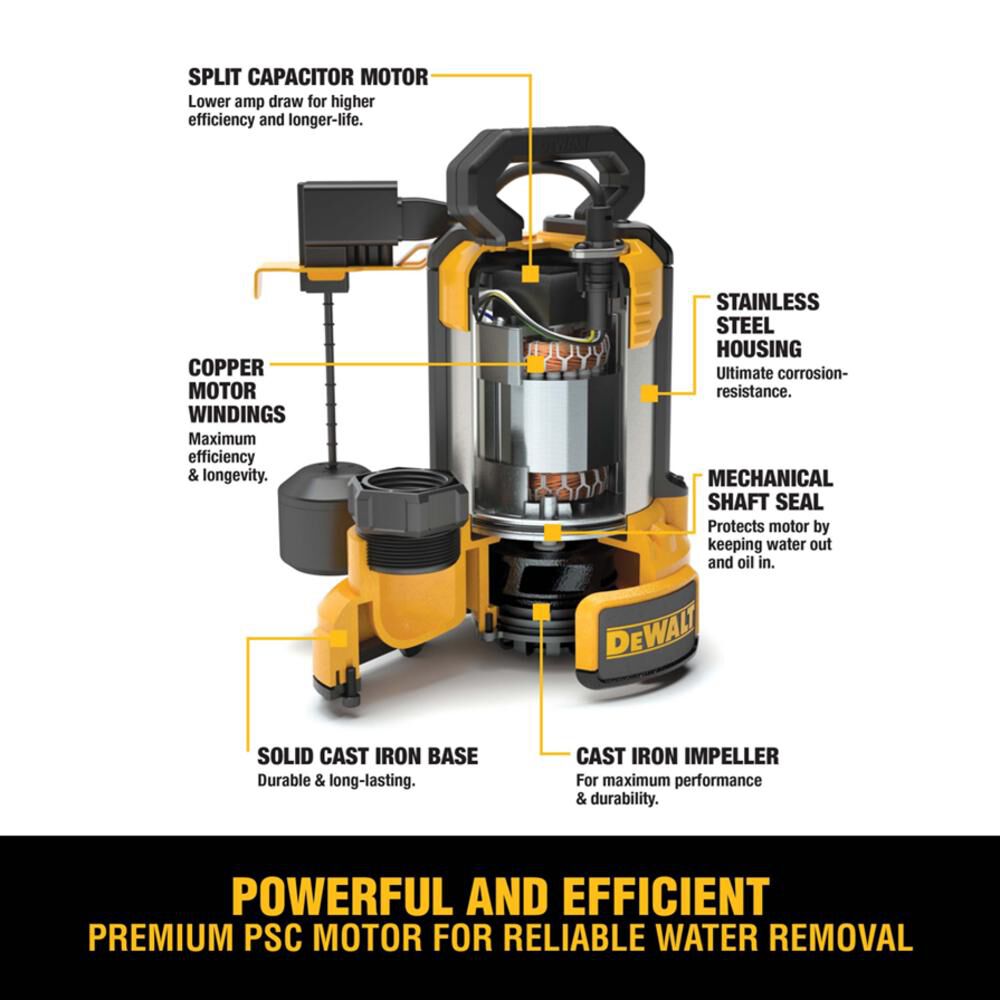

The DEWALT 1/3 HP Stainless Steel and Cast Iron Submersible Sump Pump is designed for rigorous applications, offering a maximum discharge flow rate of 75 GPM @ 0 ft. of vertical lift and 63 GPM @ 10 ft. The pump is constructed with rugged epoxy-coated cast iron and corrosion-resistant stainless steel, and features a thermally protected PSC motor with premium 100% solid copper windings and dual o-ring motor seals for efficient and reliable water removal. Equipped with a piggy-back vertical float switch for automatic or manual operation, this pump is tested to over 2 million cycles. It is backed by an exclusive 10-year limited warranty and is CSA and SSPMA certified for exceptional quality, safety, and performance. This fully submersible sump pump has a bottom suction design, cast iron impeller, and serviceable intake screen to handle up to 1/2 in. solids and minimizes clogging. The pump includes a 10-foot power cord for convenient installation and features a 2 in. FNPT Discharge with 1-1/2 in. FNPT adapter for installation flexibility.

California Proposition 65 Warning.
View Warning Label

Manuals

Installation Guide - PDF
Use and Care Manual - PDF
Warranty - PDF

Features

Maximum discharge flow rate 75 GPM / 4500 GPH @ 0 ft. of vertical lift; 63 GPM /3780 GPH @ 10 ft. and engineered for reliable performance in rigorous sump pump applications. (Maximum lift up to 25 ft.).
Rugged epoxy-coated cast iron and corrosion-resistant stainless steel construction for longevity. Efficient, thermally protected PSC motor features premium 100% solid copper motor windings and dual o-ring motor seals for years of trusted water removal.
Piggy-back vertical float switch, for automatic or manual operation and tested to over 2 million cycles!
DEWALT pumps are built with quality in mind. Every pump is 100% factory tested and backed with an industry leading 10 year limited warranty. CSA and SSPMA Certified for quality, safety and dominant performance.
Fully submersible sump pump, with bottom suction design, cast iron impeller and serviceable intake screen, removes water fast
Trusted basement drainage to prevent residential flooding.
2 in. FNPT Discharge with 1-1/2 in. FNPT adapter for installation flexibility with varying discharge pipe sizes. (ABS or PVC Pipe not included.)
Comfortable ergonomic handle designed for easy grip, to carry and install.

Specifications

Brand Name
DEWALT
Amperage (A)
6.5
Application
Sump Pump
Assembled Weight (lbs)
23.77
California Proposition 65 Warning Required
Yes
Country of Origin
China
CSA Certified
Yes
Depth (in)
9.73
ETL Listed
No
Height (in)
12.89
Horsepower (hp)
.33
Impeller Material
Cast Iron
Inlet Size (in)
.5

MFG Part # (OEM)
DXWP62383

Materials Handled
.5 in
Maximum Pumping Height (Ft.)
25
Outlet Size (in)
2.0
Package Contents
Sump Pump, Power Cord, Float Switch

Product Condition
New

Shut Off PSI
10.8
Submersible
Yes
Switch Type
Vertical
UL Listed
No

UPC
725113623839

Warranty Type
10 Years
