CS Unitec Single-Speed Portable Magnetic Drill

Name: CS Unitec Single-Speed Portable Magnetic Drill
Brand: CS Unitec
SKU: MABASIC 200
Price: 911.99 USD
Availability: InStock

SKU# MABASIC 200

CS Unitec Single-Speed Portable Magnetic Drill, large image number 0

CS Unitec Single-Speed Portable Magnetic Drill, large image number 1

CS Unitec Single-Speed Portable Magnetic Drill, large image number 2

CS Unitec Single-Speed Portable Magnetic Drill, large image number 3

CS Unitec Single-Speed Portable Magnetic Drill, large image number 4

CS Unitec Single-Speed Portable Magnetic Drill, large image number 5

CS Unitec Single-Speed Portable Magnetic Drill, large image number 6

CS Unitec Single-Speed Portable Magnetic Drill, large image number 7

CS Unitec Single-Speed Portable Magnetic Drill, large image number 8

CS Unitec Single-Speed Portable Magnetic Drill, large image number 9

CS Unitec Single-Speed Portable Magnetic Drill, large image number 10

CS Unitec Single-Speed Portable Magnetic Drill, large image number 11

+ 8 more

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

CS Unitec Single-Speed Portable Magnetic Drill

CS Unitec

Please follow our Community Guidelines and be kind!

Description

CS Unitec Single-Speed Portable Magnetic Drill

CS Unitec’s MABasic line of magnetic drills consists of powerful and reliable machines at an affordable price, a perfect blend of power, endurance and economy. The MABasic 200 magnetic drill is a heavy-duty, single-speed workhorse with: a 8.2 Amp motor, a no-load speed of 450 RPM and a 6-1/3" stroke. The MABasic 200 drills up to 1-3/8” dia. with annular cutters in structural steel and other metals. The drill accepts cutters with a 3/4” Weldon Shank. With included drill chuck, this model easily converts to a standard drill press for conventional twist drilling up to 1/2” diameter. Compact (12-1/4" tall) and lightweight (27 lbs.), the MABasic 200 is easily portable to the jobsite, making it the hole-cutting solution for steel fabricators and contractors, as well as plant maintenance operations. The MABasic 200 is equipped with an internal automatic lubrication system that increases the life of annular cutters by reducing friction and wear. The Electronic Safety Shutoff Sensor automatically shuts down the drill if the magnet loses contact with the material, protecting both operator and equipment. The machine’s magnet has a holding strength of 3,080 lbs.

California Proposition 65 Warning.

Manuals

Use and Care Manual - PDF

Features

Heavy-duty, purpose-built, single-speed workhorse

1-3/8" diameter hole cutting capacity

Powerful and reliable machines at an affordable price

Excellent Power To Weight Ratio, Only 27 lbs

Compact, lightweight, portable design

Internal lubrication system

Simple, ergonomic arrangement of controls for one-handed operation

Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment

3/4" Weldon tool holder

Specifications

Brand Name

CS Unitec

Amperage (A)

8.2

Assembled Weight (lbs)

California Proposition 65 Warning Required

Yes

Chuck Design

Keyed

Color

Blue

Country of Origin

Germany

Drill Press Type

Portable

Height (in)

12.25

Integrated Laser Guide

Length

10.5 in

MFG Part # (OEM)

MABASIC 200

Net Tool Weight (lbs)

Package Contents

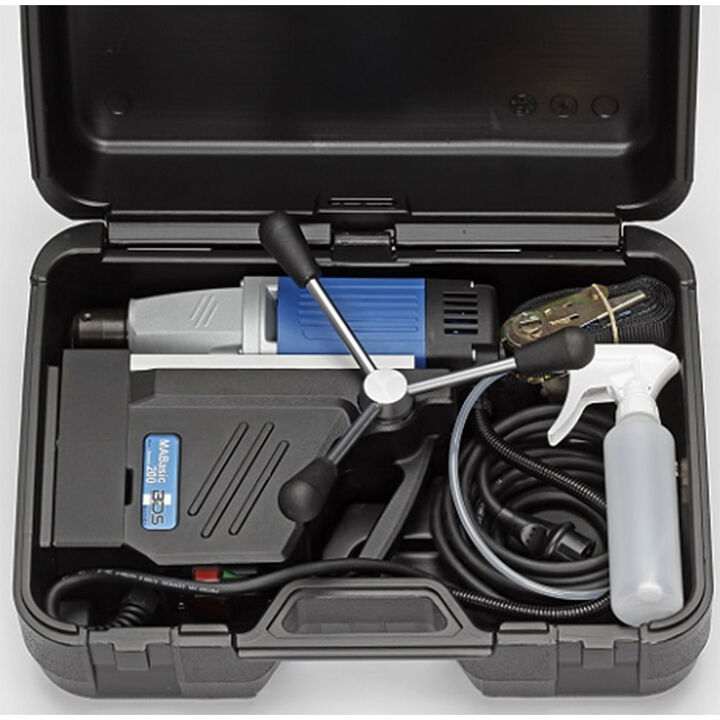

(1) MABasic 200 (1) Carrying Case (1) Safety Strap (1) Operating manual (1) Warranty Certificate (1) Coolant bottle (2) Pilot/Ejector Pin (2) Hex Keys (1) 3/4" Weldon Tool Holder w/ internal Lubrication, Affixed (1) 1/2" Geared Chuck
