CS Unitec 4-1/16 Inch Variable Speed Magnetic Drill

Name: CS Unitec 4-1/16 Inch Variable Speed Magnetic Drill
Brand: CS Unitec
SKU: MAB 825
Price: 3560.18 USD
Availability: InStock

SKU# MAB 825

CS Unitec 4-1/16 Inch Variable Speed Magnetic Drill, large image number 0

CS Unitec 4-1/16 Inch Variable Speed Magnetic Drill, large image number 1

CS Unitec 4-1/16 Inch Variable Speed Magnetic Drill, large image number 2

CS Unitec 4-1/16 Inch Variable Speed Magnetic Drill, large image number 3

CS Unitec 4-1/16 Inch Variable Speed Magnetic Drill, large image number 4

CS Unitec 4-1/16 Inch Variable Speed Magnetic Drill, large image number 5

CS Unitec 4-1/16 Inch Variable Speed Magnetic Drill, large image number 6

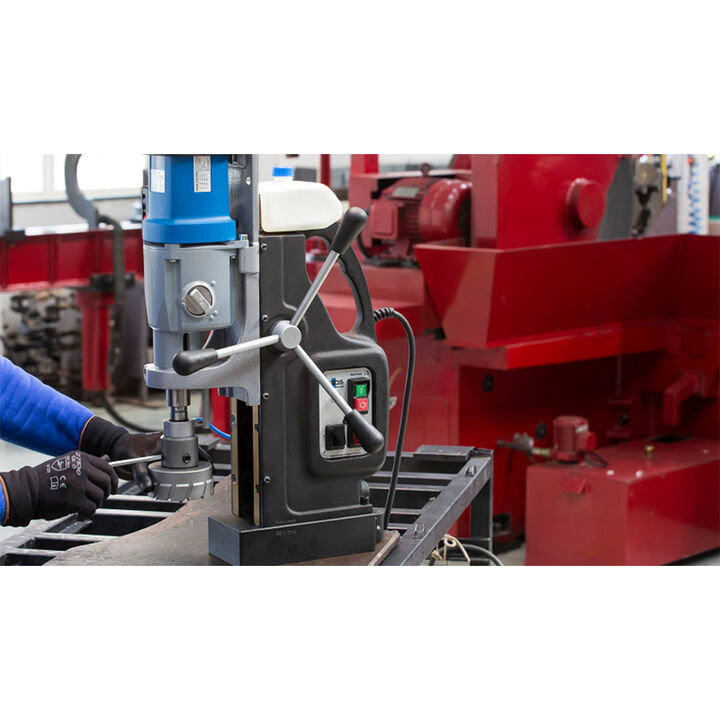

CS Unitec 4-1/16 Inch Variable Speed Magnetic Drill, large image number 7

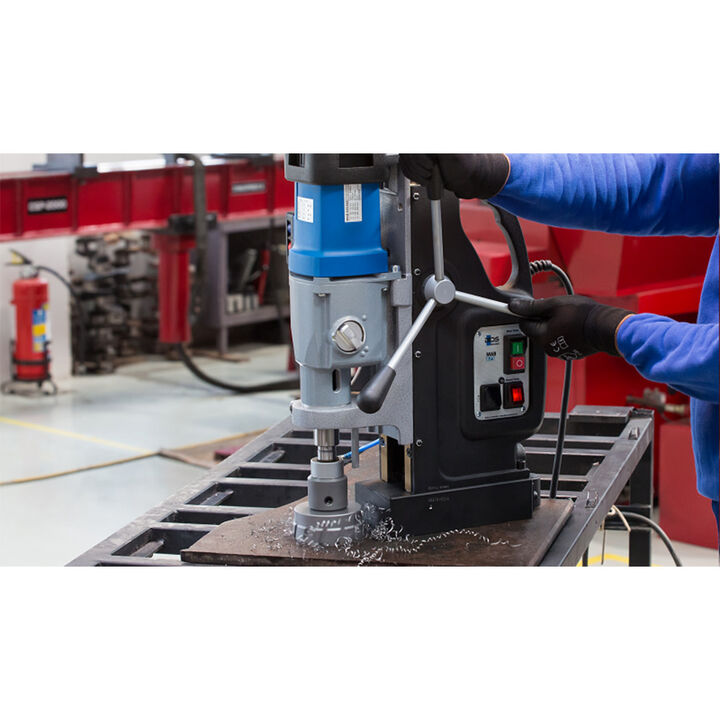

CS Unitec 4-1/16 Inch Variable Speed Magnetic Drill, large image number 8

CS Unitec 4-1/16 Inch Variable Speed Magnetic Drill, large image number 9

CS Unitec 4-1/16 Inch Variable Speed Magnetic Drill, large image number 10

+ 7 more

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

CS Unitec 4-1/16 Inch Variable Speed Magnetic Drill

CS Unitec

Please follow our Community Guidelines and be kind!

Description

CS Unitec 4-1/16 Inch Variable Speed Magnetic Drill

The MAB 825 magnetic drill features a 16 Amp, double-insulated, reversible motor with fully variable speed through a 4-gear oil bath gearbox (40-110, 65-175, 140-360, 220-600 RPM) for applications requiring high power. With infinitely variable torque control and full-wave electronics, this heavy-duty drill cuts holes up to 4-1/16" dia. in structural steel and other metals. Additional capabilities include twist drilling and reaming up to 1-1/4” dia., tapping up to 1-1/8” dia. and countersinking up to 2”. A stroke length of 10” makes the MAB 825 ideal for steel engineering, plant construction and more. This unit has a quick-change keyless cutter system for 3/4” Weldon Shanks, saving time and money. Integrated sensors in the MAB 825 include magnet overheating protection, visual magnet adhesion indication and an Electronic Safety Shutoff Sensor to automatically shut down the drill motor if the magnet loses contact with the material. An internal cable routing system helps protect the motor power cord from external damage. The magnet has a holding force of 6,600 lbs.

California Proposition 65 Warning.

Features

Professional-grade, variable speed & torque, reversible through 4 gears amazing versatility

4-1/16" diameter hole cutting capacity

Excellent Power To Weight Ratio, Only 68 lbs

Integrated cable routing: No threading and getting caught, No tearing or snapping off

CoolMag™: reduces the power of the magnets when the drill motor is not active. Therefore, the mag drill won't build up heat.

SafeMag™: An LED indicator on the switch panel warns you of insufficient magnetic force (Red Light) or tells you if the correct force is present (Green Light).

Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment

Quick Change weldon chuck for fast changeover between annular cutters and other cutting tools

Automatic internal lubrication

Morse Taper 3 to Weldon Tool Holder

Specifications

Brand Name

CS Unitec

Assembled Weight (lbs)

120

Country of Origin

Germany

MFG Part # (OEM)

MAB 825

Package Contents

(1) MAB 825 (1) Carrying Case w/ wheels (1) Safety Strap (1) Operating manual (1) Warranty Certificate (1) Coolant bottle (4) Pilot/Ejector Pin (2) Hex Keys (1) 3/4" Weldon Quick-Change Tool Holder w/ internal Lubrication, MT3 (1) 3/4" Standard Weldon Tool Holder w/ internal Lubrication, MT3 (1) 1-1/4" Standard Weldon Chuck w/ internal Lubrication, MT3 (1) MT3 Drift Key
