CS Unitec 2-1/2 Inch Variable Speed Magnetic Drill

CS Unitec

Please follow our Community Guidelines and be kind!

Description

CS Unitec 2-1/2 Inch Variable Speed Magnetic Drill

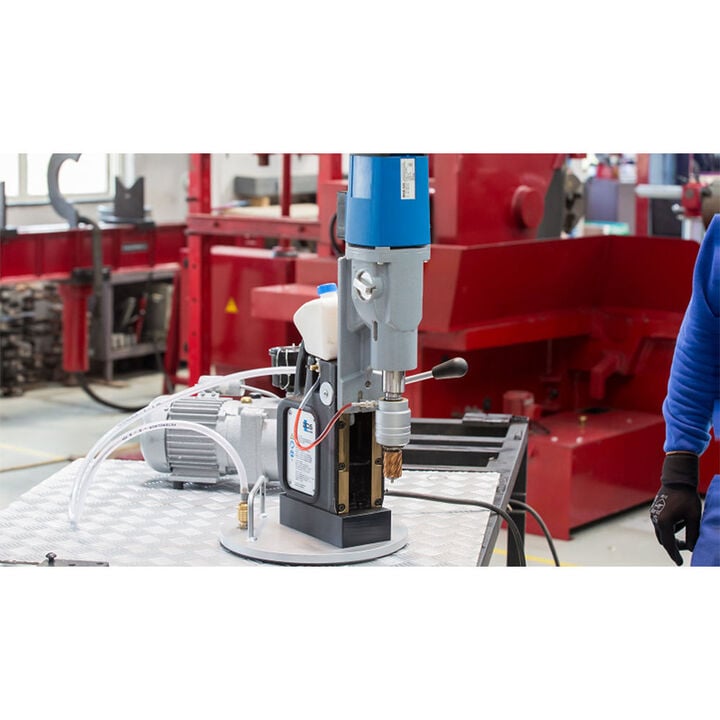

CS Unitec’s MAB 525 magnetic drill has a hole cutting capacity up to 2-1/2” dia. in structural steel and other metals. The 14.5 amp, double-insulated, reversible motor has fully variable speed and fully variable torque through a 2-gear oil bath gearbox (70-280 and 180-580 RPM) ideal for annular cutters and twist drills. Additional capabilities include twist drilling up to 1” dia., tapping up to 15/16” dia., reaming up to 7/8” dia. and countersinking up to 2”. This unit has a quick-change keyless cutter system for 3/4” Weldon Shanks, saving time and money. With a 3/4” drill chuck or MT3, the MAB 525 easily converts to a standard drill press. Integrated sensors in the MAB 525 include magnet overheating protection, visual magnet adhesion indication and an Electronic Safety Shutoff Sensor to automatically shut down the drill motor if the magnet loses contact with the material. An internal cable routing system helps protect the motor power cord from external damage. The magnet has a holding force of 8,000 lbs.

California Proposition 65 Warning.

Features

Professional-grade, variable speed & torque, reversible through 2 gears amazing versatility

2-1/2" diameter hole cutting capacity

Integrated cable routing: No threading and getting caught, No tearing or snapping off

CoolMag™: reduces the power of the magnets when the drill motor is not active. Therefore, the mag drill won't build up heat.

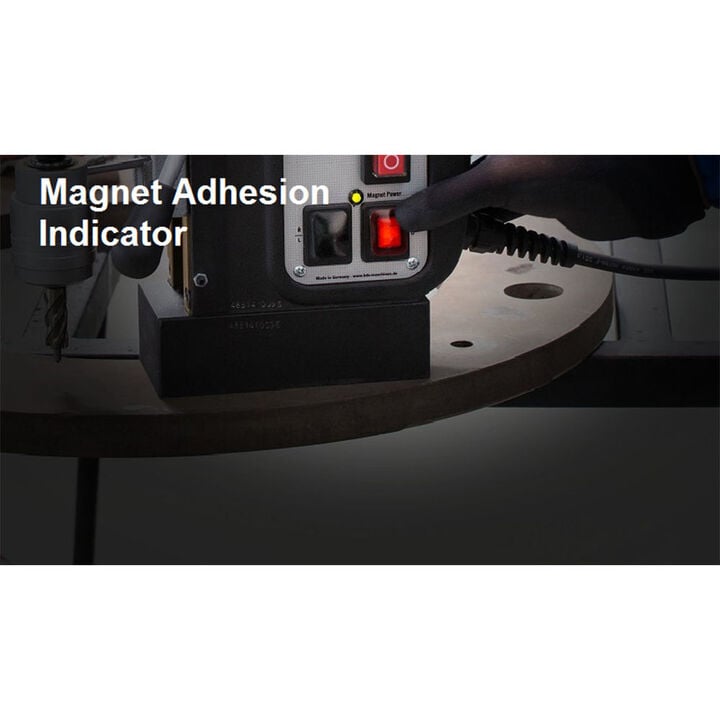

SafeMag™: An LED indicator on the switch panel warns you of insufficient magnetic force (Red Light) or tells you if the correct force is present (Green Light).

Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment

Quick Change weldon chuck for fast changeover between annular cutters and other cutting tools

Automatic internal lubrication

Morse Taper 3 to 3/4" Weldon Tool Holder

Specifications

Brand Name

CS Unitec

Assembled Weight (lbs)

Country of Origin

Germany

MFG Part # (OEM)

MAB 525

Package Contents

(1) MAB 525 (1) Carrying Case (1) Safety Strap (1) Operating manual (1) Warranty Certificate (1) Coolant bottle (2) Pilot/Ejector Pin (2) Hex Keys (1) 3/4" Weldon Quick-Change Tool Holder w/ internal Lubrication, MT3 (1) 3/4" Standard Weldon Tool Holder w/ internal Lubrication, MT3 (1) 3/4" Geared Drill Chuck, MT3 (1) MT3 Drift Key (4) Tap Collet Adapters 1 each (1/4", 3/8", 1/2", 3/4")
