Copperloy Steel Mobile Yard Ramp 20000# Capacity

Item No. SKU# SYR20-84-36PL8
5 out of 5 Customer Rating
  • Out of Stock Available in 1-2 Months
$22,99500
Out of Stock
Made In USA
  Free Freight  Shipping  (Truck freight shipping to lower 48)
Acme Tools Guarantee
Copperloy Steel Mobile Yard Ramp 20000# Capacity
Out of Stock
Out of Stock
Please enter valid email.
Qty
Secure Checkout
Affirm Pay over time with Affirm on orders below $17,500
Product Details

Copperloy Steel Mobile Yard Ramp 20000# Capacity

Description

Copperloy Steel Mobile Yard Ramp 20000# Capacity

The SYR20-84-36PL8 model Copperloy Mobile Yard Ramp is a versatile piece of loading dock equipment that will expand your present dock capacity and create loading facilities where no dock exists, without new construction. This unit has a 20,000 lbs. capacity for heavier loads. The usable width of 84" will allow the transit of most electric vehicles and lift trucks. With a weight of 6,120 pounds and a length of 36 feet, this mobile yard ramp makes it simple to move from job-to-job and handle freight with a forklift or lift truck virtually anywhere.

Features

8-foot level off allows the fork truck to safely enter the trailer at a level approach and without having to stop
18-inch solid/pneumatic tires are ideal for all applications
Forklift positioning sleeve allows the ramp to maneuver 180 degrees which reduces loading/unloading time and increases productivity
15-inch lip is designed to firmly rest on the truck carrier body, dock floor or platform with eight-foot-long safety chains

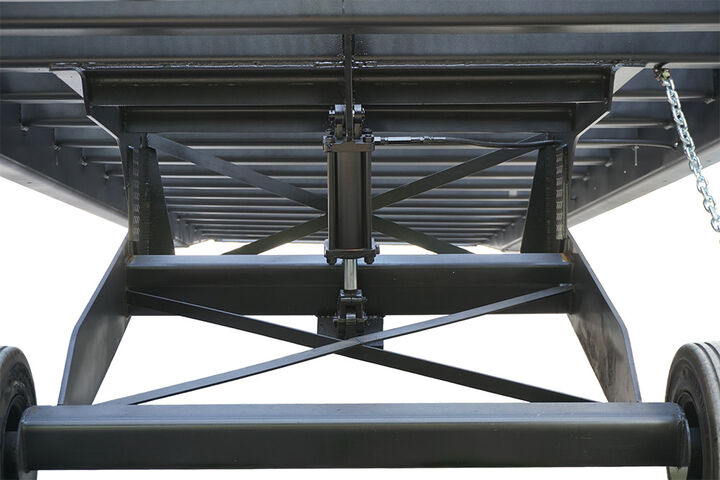

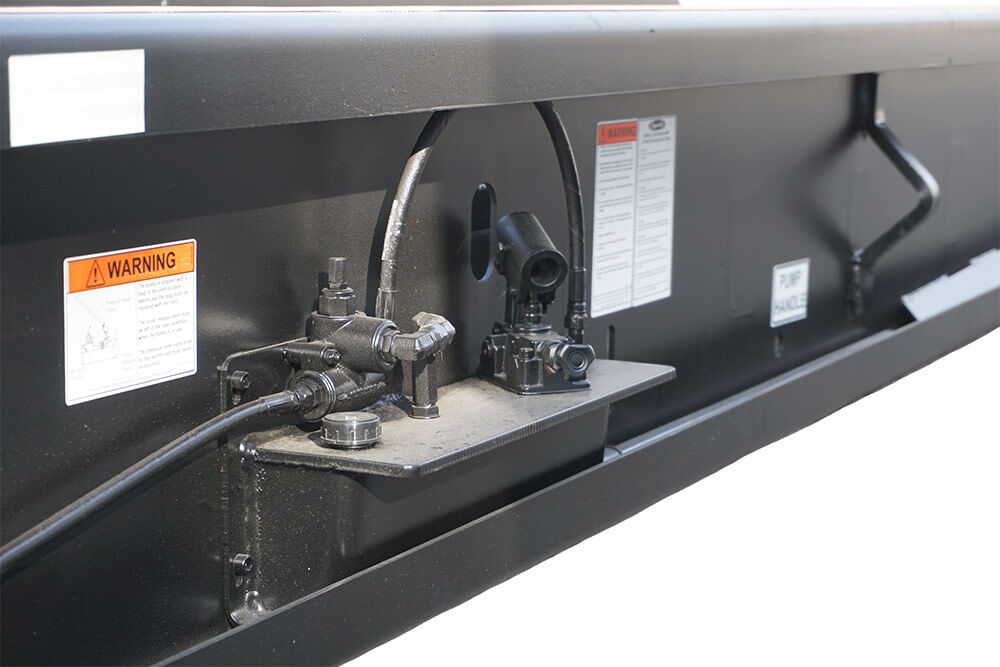

Hydraulic pump design requires half the effort needed to raise ramp compared to other mobile ramps
High-strength smooth side plates
Steel grating bars on the deck are constructed for durability in the roughest of applications
Shorter low end plate than the wheelbase of most forklift trucks, so front-drive wheels can reach high-traction grating, while rear wheels are still on the ground
7-inch high safety curbs are standard
Tow bar provides the ability to transport the ramp at up to 5 mph

Specifications

Brand Name
Copperloy
Assembled Depth (in)
432
Assembled Weight (lbs)
6120
Assembled Width (in)
85
California Proposition 65 Warning Required
Yes
Capacity
20000 Lbs
Country of Origin
United States
Height (in)
38
MFG Part # (OEM)
SYR20-84-36PL8
Package Contents
Copperloy Steel Mobile Yard Ramp 20,000# Capacity
Package Depth
432
Package Height
0
Package Weight
6120
Product Condition
New
UPC
419002000985
Warranty Type
5 Years Limited
