Bosch 7 Amp Top-Handle Jig Saw

SKU# JS470E
5 out of 5 Customer Rating
Bosch 7 Amp Top-Handle Jig Saw, large image number 0
Bosch 7 Amp Top-Handle Jig Saw, large image number 1
Bosch 7 Amp Top-Handle Jig Saw, large image number 2
Bosch 7 Amp Top-Handle Jig Saw, large image number 3
Bosch 7 Amp Top-Handle Jig Saw, large image number 4
Bosch 7 Amp Top-Handle Jig Saw, large image number 5
Bosch 7 Amp Top-Handle Jig Saw, large image number 6
Bosch 7 Amp Top-Handle Jig Saw, large image number 7
Bosch 7 Amp Top-Handle Jig Saw, large image number 8
Bosch 7 Amp Top-Handle Jig Saw, large image number 9
Bosch 7 Amp Top-Handle Jig Saw, large image number 10
Bosch 7 Amp Top-Handle Jig Saw, large image number 11
Bosch 7 Amp Top-Handle Jig Saw, large image number 12
Previous Next
+ 8 more
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA
  Free Shipping (Ground shipping to lower 48)
Bosch 7 Amp Top-Handle Jig Saw
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Selected Delivery Method: Shipping
Shipping
Get it as soon as {0}
Pick up in Store
Available within 4 hours
Not Available for Pick Up
Qty
Secure Checkout
Affirm
Pay as low as $19/mo.
with Affirm

Product Details

Bosch 7 Amp Top-Handle Jig Saw
Bosch

Please follow our Community Guidelines and be kind!

Description

Bosch 7 Amp Top-Handle Jig Saw

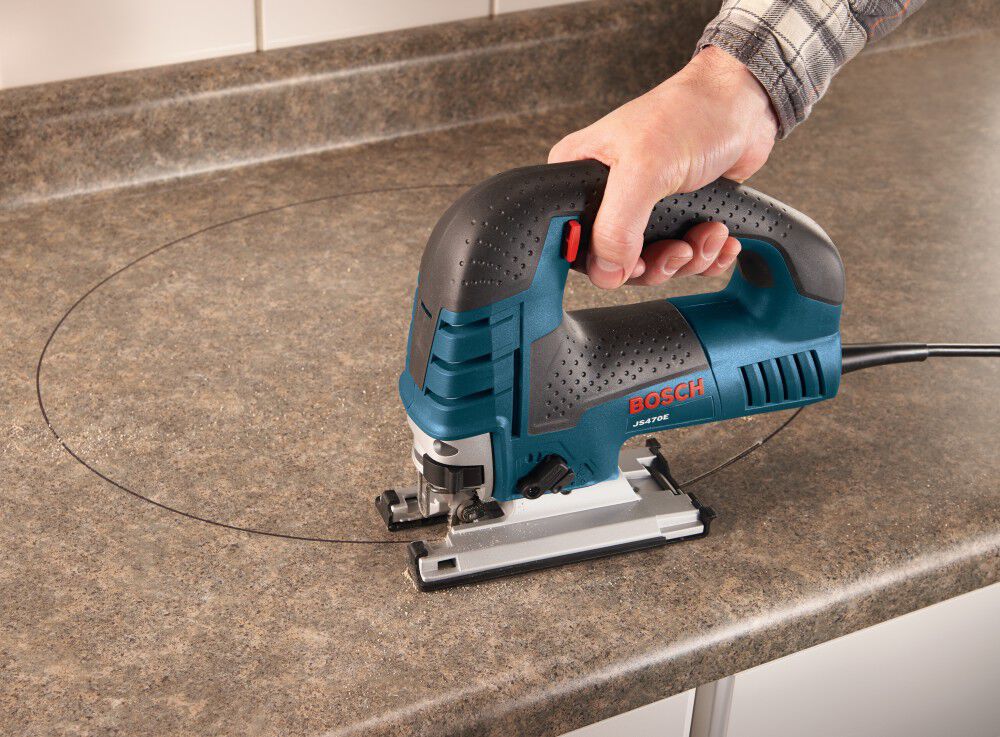

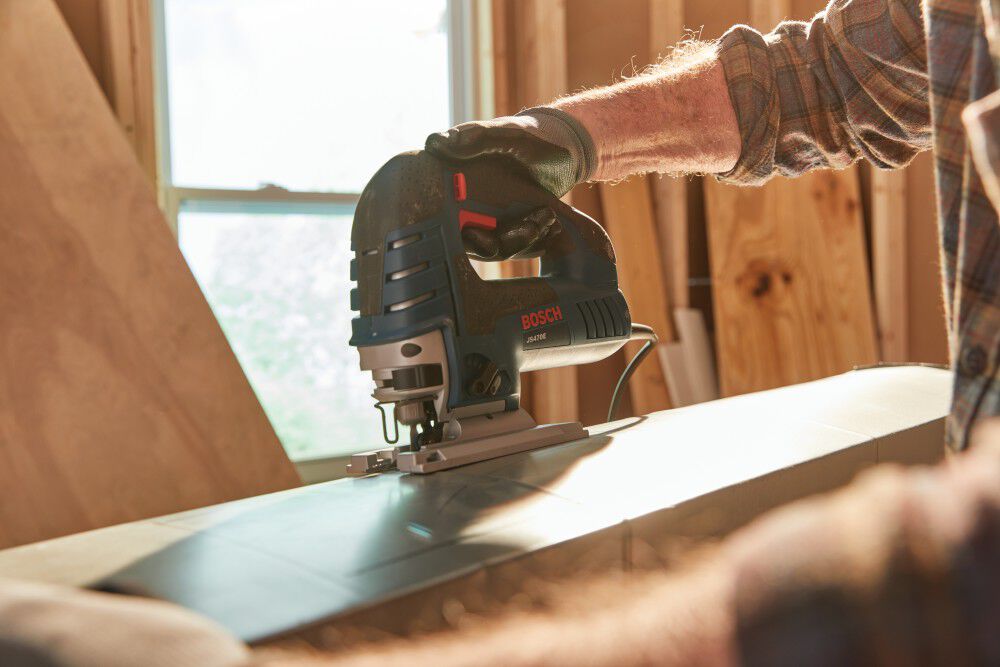

The Bosch JS470E Top-Handle Jig Saw provides unsurpassed cut precision. Finish carpenters and kitchen and bath installers will appreciate the best-in-class 7.0 Amp motor and variable-speed control, making this saw an excellent choice for curve-cutting. A dial on the back of the tool controls the maximum speed and the accelerator trigger controls the operating speed. Built with an aluminum gearbox and an insulated cover, this jig saw comes with a low-vibration plunging design and Constant Response circuitry for consistent speed under load. It has a large die-cast aluminum footplate. The JS470E's multidirectional blade clamp delivers superior grip of T-shank blades (but it does not accept U-shank blades). The blade-ejection lever that eliminates need to touch hot blades. It has a dust blower for max cut-line visibility.

California Proposition 65 Warning.

Manuals

Use and Care Manual - PDF
Warranty - PDF
Instructions / Assembly - PDF

Features

Powerful jig saw – with 7.0 amp rating
Large die-cast aluminum footplate – with steel insert and on-board storage of bevel hex key
Variable-speed control – includes a dial for max speed and accelerator trigger to control operating speed
Constant Response circuitry – for consistent performance under load
Multi-directional blade clamp – supplies superior grip of T-shank blades (does not accept U-shank blades)
Aluminum gearbox with insulated cover – offers durability
Toolless blade-change system – furnishes fast blade insertion and a blade-ejection lever; no need to touch hot blades
Four orbital-action settings – provide varied blade strokes for smooth to aggressive cuts
Internal precision control – supplies a precision-machined plunging system and low-vibration design for enhanced accuracy and extremely smooth operation
Dust blower with on/off switch – for keeping the cut line visible and free of dust

Specifications

Brand Name
Bosch
Amperage (A)
7
Assembled Depth (in)
14
Assembled Weight (lbs)
10.5
Assembled Width (in)
4
Blade Type
Jig Saw T-Shank
California Proposition 65 Warning Required
No
Color
Blue
Country of Origin
Hungary
CSA Certified
Yes
Cutting Capacity
0.875" Thick Metal, 5.875" Thick Wood
Dust Collection
Yes
Dust Port
Yes
Electronic Speed Control
Yes
ETL Listed
No
Handle Type
Top Handle
Height (in)
8.43"
Horsepower (hp)
Universal Motor
Integrated Laser Guide
No
Keyless / Keyed Blade Change
Keyless
Length
10 ft
Lock-on Switch
Yes

MFG Part # (OEM)
JS470E

Material
Die-Cast Aluminum with Steel Insert
Net Tool Weight (lbs)
5.6
Orbital Action
Yes
Package Contents
(1) JS470E 7.0 Amp Top-Handle Jig Saw, (1) Non-Marring Overshoe (2601099183), (1) JA1013 Anti-Splinter Insert, (1) T-Shank Jig Saw Blade, (1) Bevel Wrench, (1) Carrying Case

Product Condition
New

Restrictions
No Restrictions
Stroke Length (in)
1
UL Listed
Yes

UPC
000346398359

Variable Speed
Yes
Voltage
120.0
Warranty Type
1 Year Limited
Weight (lbs)
10.24
