Bosch Rotary Laser Receiver 1000'

Bosch

Please follow our Community Guidelines and be kind!

Description

Bosch Rotary Laser Receiver 1000'

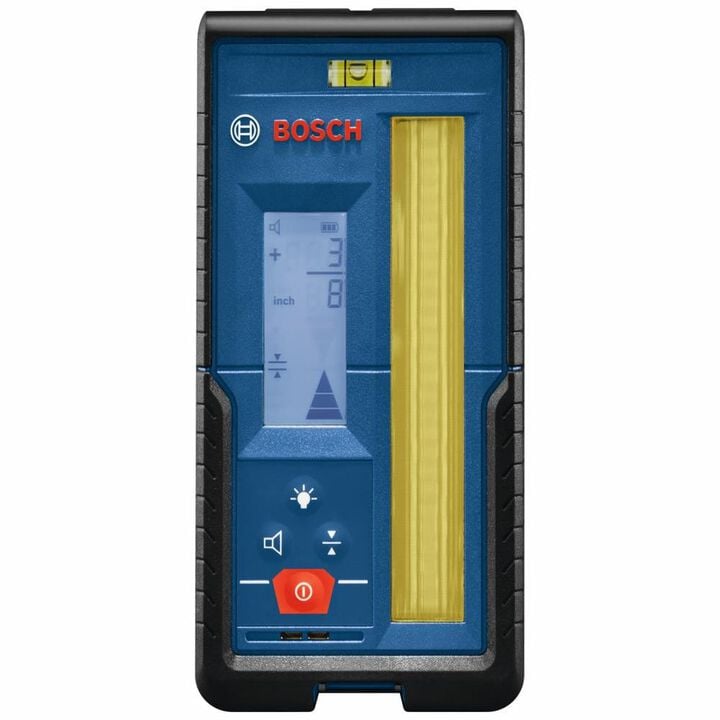

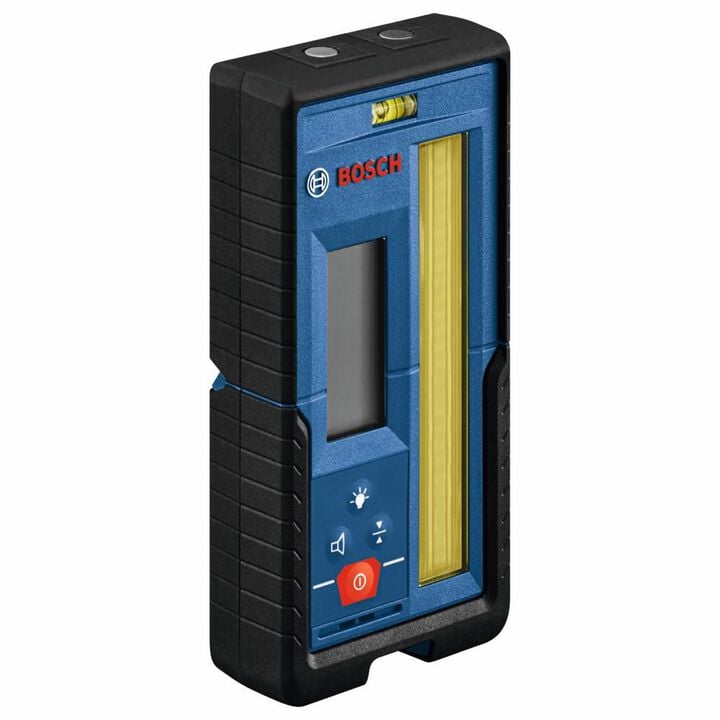

The Bosch LR20 Rotary Laser Receiver is designed to increase the GRL2000-40H and GRL2000-40HV rotary laser detection up to 1,000 Ft., with a backlit LCD display for use in darker areas or outdoors. The display illuminated large, easy-to-see indicators, including up/down arrows, center line, accuracy level, battery level and audio signal. It also has dual-sided indicators, to provide easy visual readout on both sides of the receiver. The oversized laser detection area helps find the laser beam faster, making it easier to start setting level. The receiver provides convenience features such as built-in magnets for secure attachment to metal surfaces, an adjustable audio indicator, intuitive four-button keypad, receiver vial and ergonomic soft grip.

California Proposition 65 Warning.

Manuals

Warranty - PDF

Features

Receiver to extend working range – increases rotary detection up to 1,000 Ft., with easy-to-see indicators and adjustable audio

Backlit LCD display – illuminates large, easy-to-see up/down arrows, center line, accuracy level, battery level and audio signal

Dual-sided indicators – provide easy visual readout on both sides of the receiver

Oversized detection area – enables fast laser reception

Built-in magnets – allow for secure attachment to metal surfaces

Adjustable audio indicator – provides clear signal of on-grade position and facilitates precise plus/minus control

Intuitive four-button keypad – enables simple operation

Receiver vial – helps ensure accurate leveling results

Ergonomic soft grip – provides secure handling and comfort

Built in plumb indicator for fast, accurate grade checking in miniexcavator applications

Specifications

Accessory Type

Rotary Laser Receiver

Accuracy

Setting “fine" ±1/32 in (±0.05 in) ±1/16 in (±0.1 in) Setting “medium” ±1/8 in (±0.15 in) ±1/4 in (±0.25 in) Setting “coarse” ±1/2 in (±0.5 in) ±1 in (±1 in)

Brand Name

Bosch

Assembled Weight (lbs)

.765

Automatic Shut-Off

Batteries Included

Yes

Battery Size

Brand / Model Compatibility

Spectra Laser

California Proposition 65 Warning Required

Case Material

Hard

Color

Blue

Country of Origin

Malaysia

Indoor / Outdoor

Indoor/Outdoor

Length

6.22 in

Magnetic

Yes

MFG Part # (OEM)

LR20

Package Contents

LR20, Laser Receiver, Machine Control/Display,Carrying Case

Product Condition

New

Recommended Use

Surveying, Leveling, Layout

Restrictions

CA Prop 65

UPC

000346649048

Warranty Type

2 Years

Waterproof

Yes

Weight (lbs)

0.765
