Bosch Plunge Base Router Reconditioned

Name: Bosch Plunge Base Router Reconditioned
Brand: Bosch
SKU: MRP23EVS-RT
Price: 249.00 USD
Availability: InStock

SKU# MRP23EVS-RT

Bosch Plunge Base Router Reconditioned, large image number 0

Bosch Plunge Base Router Reconditioned, large image number 1

Bosch Plunge Base Router Reconditioned, large image number 2

Bosch Plunge Base Router Reconditioned, large image number 3

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

Bosch Plunge Base Router Reconditioned

Bosch

Please follow our Community Guidelines and be kind!

Description

Bosch Plunge Base Router Reconditioned

Factory Reconditioned - The Bosch MRC23EVS is the only plunge router from a modular router system that has trigger-controlled power switches in the base handle, so you don't have to reach up to a switch on the motor to turn the tool on and off. It features a powerful 15 Amp, 2.3HP, 10,000 to 25,000 RPM (no-load) motor with a one-piece armature shaft for accuracy and long bit shank capacity. In addition, the motor has LED lights to provide always-on, optimal lighting to help ensure precision. The motor is held by the bases using the Bosch-invented router quick-clamp system, allowing tool-free movement of motor to the optional MRF01 fixed base. The MRP01 allows a plunging depth of up to 2-5/16 In. . It has exceptionally-smooth plunging action, and features a spring-lock plunge control lever conveniently located for easy usage. The depth adjustment system also includes a multi-step adjustable depth stop turret. Most importantly, this base features the Bosch-exclusive Afterlock Microfine Depth Adjustment System for fast, accurate bit depth adjustment at any plunge setting. The base features the Bosch Precision Centering Design that allows the subbase to be centered around the bit, which makes it easy to keep the bit on intended cut line when using jigs, templets, dovetail fixtures and similar guidance devices. The MRF23EVS plunge router includes 1/2 In. and 1/4 In. self-releasing collets and comfortable drop-forged wrenches. The many optional Bosch router attachments allow you to easily assemble a complete routing system.

California Proposition 65 Warning.

Manuals

Use and Care Manual - PDF

Warranty - PDF

Instructions / Assembly - PDF

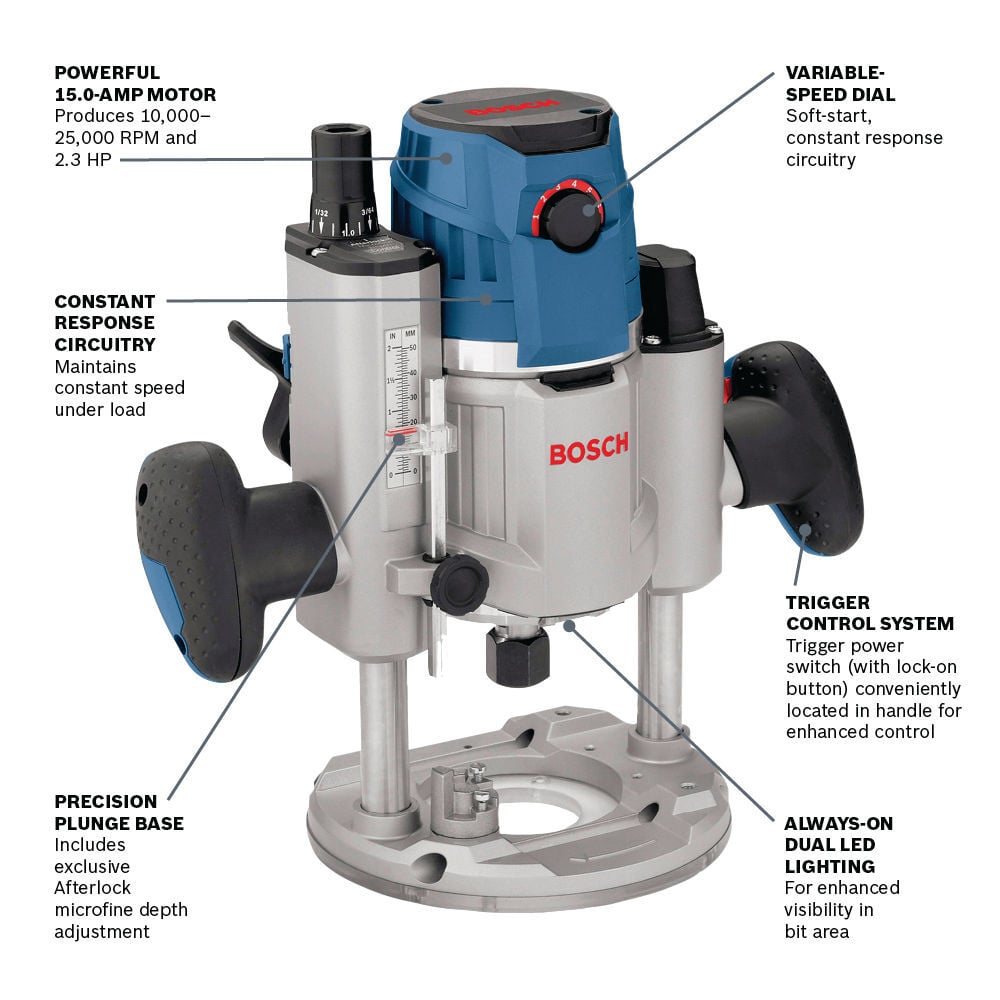

Features

10,000 - 25,000 RPM; 2.3 HP (Max tool)

Trigger Control System - trigger power switch located in handle for enhanced control

Afterlock microfine Depth Adjustment - easy and precise adjustments at any plunge setting

Smooth Plunge Action, Spring-lock Plunge Lever, and Depth Rod for easy and precise plunge routing

Always-on LED Lighting - for enhanced visibility in bit area

Precision Centering Design - makes it easy to keep bit on outline when using jigs, templets, dovetail fixtures and similar guidance devices

Two-stage Quick Clamp System - for fast tool-free conversion

Soft-Start - reduces start-up torque

Variable Speed Dial - for matching speed to workpiece and task

Constant Response Circuitry - maintains constant speed under load and provides overload protection

Specifications

Brand Name

Bosch

Assembled Weight (lbs)

12.6

California Proposition 65 Warning Required

Country of Origin

Mexico

Height (in)

MFG Part # (OEM)

MRP23EVS-RT

Package Contents

(1) MRP23EVS 120V 2.3HP Plunge-Base Router, (1) Plunge base, (1) 1/4" Self-Releasing Collet Chuck, (1) 1/2" Self-Releasing Collet Chuck, (1) 16mm Shaft Wrench, (1) 24mm Collet Nut Wrench
