Axial-Glide System durable precision – consistent precision over tool life; compact workspace – saves up-to 12 In. workspace; glide action – unmatched smoothness of cut
Expanded cutting capacity: 14 In. horizontal capacity (nominal); 6-1/2 In. vertical capacity against the fence (base); 6-1/2 In. crown capacity against the fence (45° spring)
Upfront bevel controls - all-metal bevel lock lever and range selector located upfront for quick and easy bevel settings without reaching behind the saw
SquareLockquick-release fences: high-precision SquareLockfence aligns 90° to table and requires no adjustment; one touch lock/unlock to slide fence for added support
Integrated expanding base extensions: 60% more left-to-right material support than leading competitor - 40 In. left to right

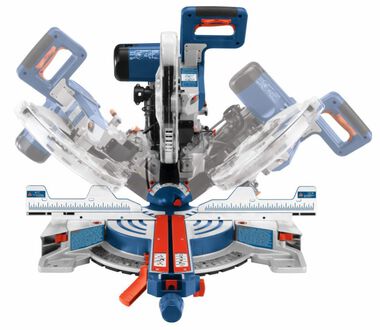

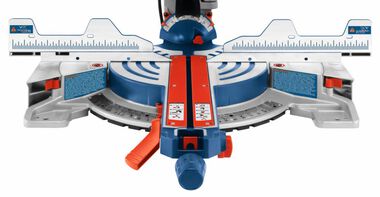

Large easy-to-read uniform bevel and stainless steel miter scales: 52° left/60° right miter capacity; 47° left/47° right bevel capacity with marked detents and roof pitch angles
Adjustable miter detents: detents at 0°, 15°, 31.6°, 22.5°, 45°, 60° right super-accurate and durable design

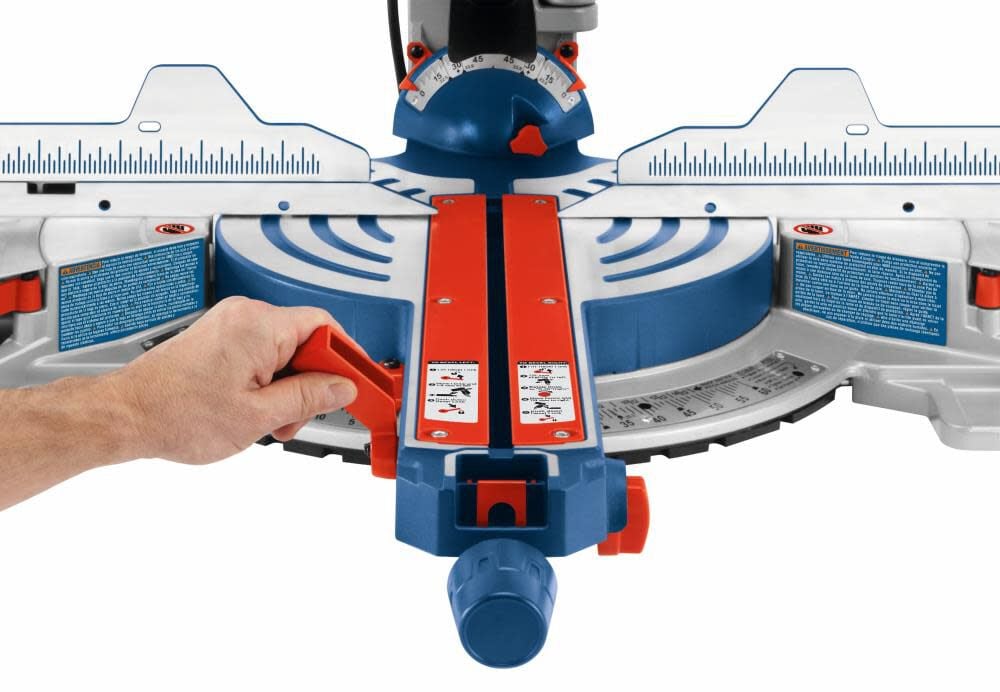

Push-button miter Detent override - easy-to-access thumb actuated control right up front for fine miter angle adjustment
Bevel detents: 0, 33.9°, 45° left/right for accurate cuts
Category best 90% dust collection - optimized for cutting 2x material with a vacuum
Brand Name
Bosch
Amperage (A)
15
Assembled Weight (lbs)
65
California Proposition 65 Warning Required
No
Capacity
45 Miter 45 Left Bevel: 2 In. x 10 In.; 45 Miter 45 Right Bevel: 2 In. x 10 In.
Color
Silver
Country of Origin
China
CSA Certified
Yes
Diameter
12 in
Dust Collection
Yes
Dust Port
Yes
Dust Port Outside Diameter (in)
0
Electronic Speed Control
No
ETL Listed
No
Height (in)
27
Horsepower (hp)
Universal Motor
Integrated Laser Guide
No
Keyless / Keyed Blade Change
Keyed
MFG Part # (OEM)
GCM12SD-RT
Miter Saw Type
Sliding Compound Miter
Net Tool Weight (lbs)
65
Package Contents
Miter Saw, Inner Blade Flange, Outer Blade Flange, Blade Bolt, Blade, 90 Degree Connector, Chute, Rubber Plate, Bevel Locking Lever, 10mm Flat Washer, 6mm Flat Washer, 6mm Lock Nut, 10mm Socket Tool, Dust Bag, Locking Rod, Adjustable Screw Clamp, Allen Wrench, Velcro Tie Strap, Rubber Pad, Manual,Blade Wrench,1 Blade Included
Package Depth
31
Package Height
22.5
Package Weight
79
Product Condition
Refurbished
Size
1 in
Spindle Lock
Yes
UL Listed
Yes
UPC
000346431827
