Bosch X-LOCK 5 Inch Continuous Rim Diamond Blade for Ceramic Tile and Slate
Bosch

Please follow our Community Guidelines and be kind!

Description

Bosch X-LOCK 5 Inch Continuous Rim Diamond Blade for Ceramic Tile and Slate

Experience faster, cleaner cuts with Bosch X-LOCK Diamond Cut-Off Blades—engineered for speed, precision, and convenience. These diamond cut-off blades feature the innovative X-LOCK mounting system, allowing blade changes up to five times faster without tools, spanner wrenches, or flange nuts. A simple snap-on and lever-release system ensures quick, secure blade changes. Designed for continuous rim cutting, these blades deliver smooth, fast cuts in ceramic and stone tile. Bosch's optimized diamond mix provides exceptional durability and cutting speed, extending blade life even under tough conditions. The high-strength steel core ensures straight, stable cuts with minimal wobble for professional-grade results. Ideal for tile professionals and contractors, Bosch X-LOCK diamond cut-off blades combine advanced engineering with unmatched efficiency and performance.

California Proposition 65 Warning.

Features

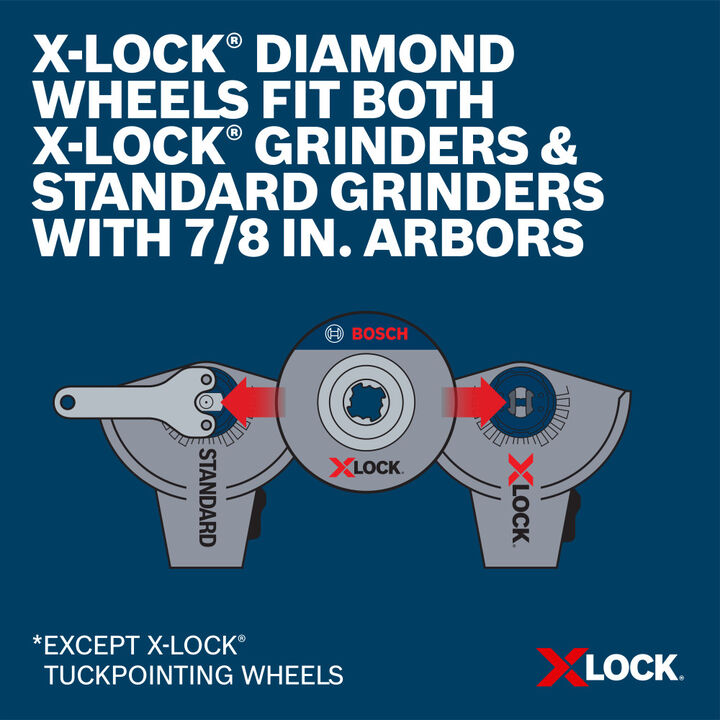

Diameter: 5 inches; Arbor Size: XLOCK and 7/8 inch
For use with: angle grinders; maximum RPM: 12,250
Wet or Dry use: Wet and Dry; Recommended Materials to use on: reinforced concrete, solid brick, concrete building block, and hard stone
X-LOCK wheel change – features snap-on mounting and a wheel-release lever on grinder for change-out up to five times faster
Tool-free disc swap – the wheel mounts properly without the need for a spanner wrench or flange nuts for no losable parts
Fast cutting – quality diamonds embedded in an optimized pattern to help ensure that the diamonds are effectively engaged in cutting the material
Steel core – delivers straight smooth cuts with less wobble
Quality manufacturing – features high-quality materials for durability

Specifications

Brand Name
Bosch
Application
Ceramic tile, slate
Arbor Hole Size
XLOCK / 7/8 in
Assembled Depth (in)
1.77
Assembled Weight (lbs)
0.2
Assembled Width (in)
5
Blade Material
Diamond
Blade Thickness (in)
0.063
Blade Type
Angle Grinder
Brand / Model Compatibility
Small Angle Grinder / X-LOCK Small Angle Grinder
California Proposition 65 Warning Required
No
Compatibility
Angle Grinder
Country of Origin
Indonesia
Diameter
5 in
Height (in)
5
Material Cut
Ceramic Tiles & Slate
Maximum RPM
12250
Net Tool Weight (lbs)
0.2
Package Contents
(1) 5 In. X-LOCK Continuous Rim Diamond Blade

Product Condition
New

Restrictions
No Restrictions
Size
0.875 in
Warranty Type
No Manufacturer's Warranty
