Bosch X-LOCK 4 1/2 Inch Xtreme Segmented Rim Diamond Blade for Cured Concrete

SKU# DBX4541E
Bosch X-LOCK 4 1/2 Inch Xtreme Segmented Rim Diamond Blade for Cured Concrete, large image number 0
Bosch X-LOCK 4 1/2 Inch Xtreme Segmented Rim Diamond Blade for Cured Concrete, large image number 1
Bosch X-LOCK 4 1/2 Inch Xtreme Segmented Rim Diamond Blade for Cured Concrete, large image number 2
Bosch X-LOCK 4 1/2 Inch Xtreme Segmented Rim Diamond Blade for Cured Concrete, large image number 3
Bosch X-LOCK 4 1/2 Inch Xtreme Segmented Rim Diamond Blade for Cured Concrete, large image number 4
Bosch X-LOCK 4 1/2 Inch Xtreme Segmented Rim Diamond Blade for Cured Concrete, large image number 5
Bosch X-LOCK 4 1/2 Inch Xtreme Segmented Rim Diamond Blade for Cured Concrete, large image number 6
Bosch X-LOCK 4 1/2 Inch Xtreme Segmented Rim Diamond Blade for Cured Concrete, large image number 7
Bosch X-LOCK 4 1/2 Inch Xtreme Segmented Rim Diamond Blade for Cured Concrete, large image number 8
Bosch X-LOCK 4 1/2 Inch Xtreme Segmented Rim Diamond Blade for Cured Concrete, large image number 9
Previous Next
+ 6 more
Discontinued by Manufacturer
Contact for more Information: 877-345-2263

Product Details

Bosch X-LOCK 4 1/2 Inch Xtreme Segmented Rim Diamond Blade for Cured Concrete
Bosch

Please follow our Community Guidelines and be kind!

Description

Bosch X-LOCK 4 1/2 Inch Xtreme Segmented Rim Diamond Blade for Cured Concrete

Bosch X-LOCK Diamond Cut-Off Blades are engineered for speed, strength, and unmatched convenience. Featuring the innovative X-LOCK mounting system, these blades allow tool-free changes—up to five times faster than traditional setups—no spanner wrenches or flange nuts required. With a distinctive audible snap, the blade locks securely into place and releases with a simple lever pull for effortless blade swaps. Built with a segmented rim, these diamond cut-off blades deliver aggressive, efficient cutting in demanding materials like reinforced concrete, brick, and natural stone. Bosch’s precision-engineered diamond matrix combines high-grade industrial diamonds for maximum cutting speed, consistent performance, and extended blade life. A durable steel core minimizes wobble to ensure clean, accurate cuts and enhanced tool control, even in heavy-duty applications. Perfect for professional contractors, these X-LOCK diamond grinding wheels deliver long-lasting performance, stability, and reliability for the most challenging masonry and construction jobs.

California Proposition 65 Warning.

Features

Diameter: 4 1/2 inches; Arbor Size: XLOCK and 7/8 inch
For use with: angle grinders; maximum RPM: 13,300
Wet or Dry use: Wet and Dry; Recommended Materials to use on: reinforced concrete, solid brick, concrete building block, and hard stone

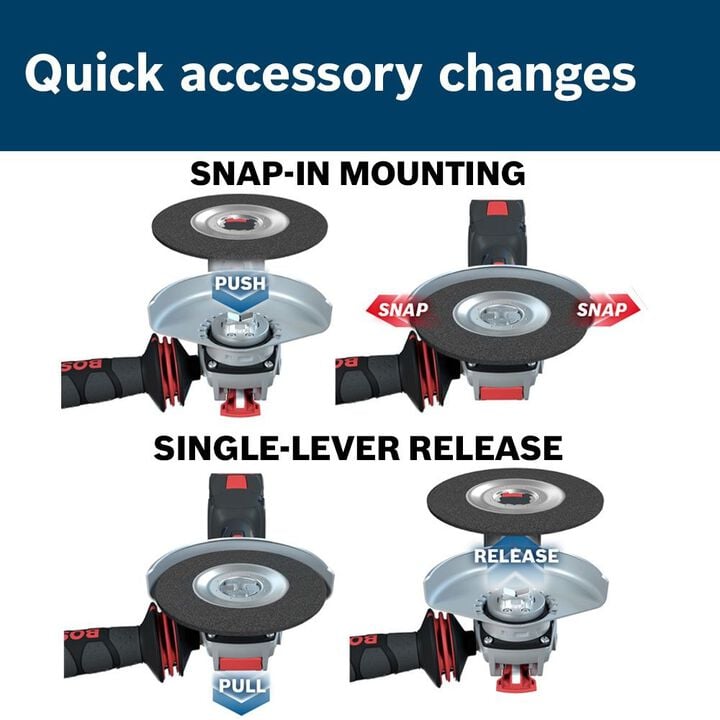

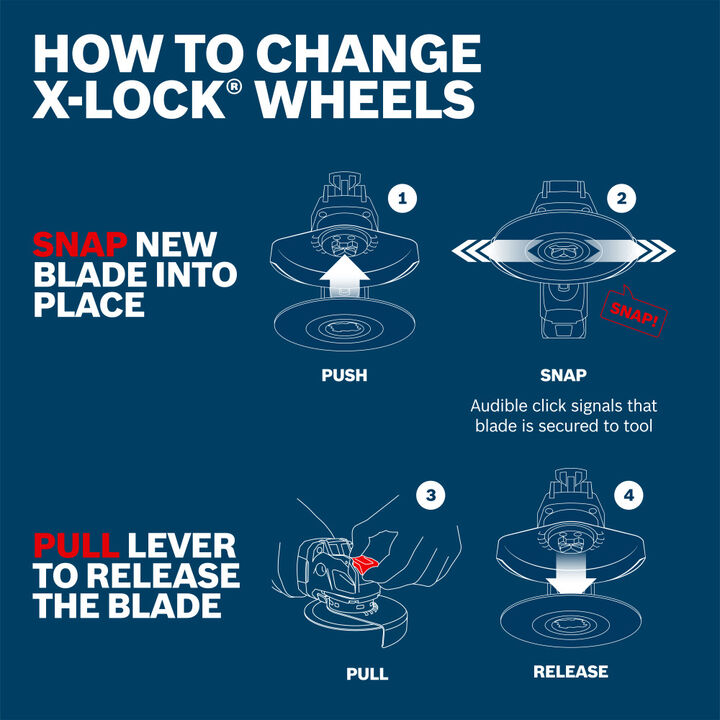

X-LOCK wheel change – features snap-on mounting and a wheel-release lever on grinder for change-out up to five times faster
Tool-free disc swap – the wheel mounts properly without the need for a spanner wrench or flange nuts for no losable parts
Fast cutting – quality diamonds embedded in an optimized pattern to help ensure that the diamonds are effectively engaged in cutting the material
Steel core – delivers straight smooth cuts with less wobble
Quality manufacturing – features high-quality materials for durability

Specifications

Brand Name
Bosch
Application
Reinforced concrete, brick, stone
Arbor Hole Size
XLOCK / 7/8 in
Assembled Depth (in)
1.77
Assembled Weight (lbs)
0.2
Assembled Width (in)
4.5
Blade Material
Diamond
Blade Thickness (in)
0.075
Blade Type
Angle Grinder
California Proposition 65 Warning Required
No
Compatibility
Angle Grinder
Country of Origin
Indonesia
Diameter
4-1/2 in
Height (in)
4.5
Material Cut
Cured Concrete
Maximum RPM
13300
Net Tool Weight (lbs)
0.2
Package Contents
(1) 4-1/2 In. X-LOCK Xtreme Segmented Rim Diamond Blade

Product Condition
New

Restrictions
No Restrictions
Size
0.875 in
Warranty Type
No Manufacturer's Warranty
