Bosch 1-5/8 Spline Combination Hammer

SKU# 11265EVS
4.7 out of 5 Customer Rating
Bosch 1-5/8 Spline Combination Hammer, large image number 0
Bosch 1-5/8 Spline Combination Hammer, large image number 1
Bosch 1-5/8 Spline Combination Hammer, large image number 2
Bosch 1-5/8 Spline Combination Hammer, large image number 3
Previous Next
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA
  Free Shipping (Ground shipping to lower 48)
Bosch 1-5/8 Spline Combination Hammer
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Selected Delivery Method: Shipping
Shipping
Get it as soon as {0}
Pick up in Store
Available within 4 hours
Not Available for Pick Up
Qty
Secure Checkout
Affirm
Pay as low as $53/mo.
with Affirm

Product Details

Bosch 1-5/8 Spline Combination Hammer
Bosch

Please follow our Community Guidelines and be kind!

Description

Bosch 1-5/8 Spline Combination Hammer

The Bosch 11265EVS Spline 1-5/8 In. Combination Hammer features a powerful 13.0 Amp motor and has a dual-mode selector for combination versatility – rotary hammer or hammer-only mode. Concrete contractors will appreciate the production in drilling and chiseling applications. Providing 6.5 Ft.-Lbs. of impact energy, the tool weighs only 15.1 Lbs., for a top performance-to-weight ratio. Constant Response circuitry allows for smooth starts and constant load under pressure, and an integral clutch helps to minimize adverse torque reaction. The hammer's 12-position Vario-Lock helps to optimize chiseling angles. Bosch's Vibration Control in the hammer mechanism and grip area provide improved user comfort. The Auto-Max variable-speed dial allows users to adjust tool settings based on the application and material they're tackling. The hammer has a Service Minder light indicating when preventative maintenance is needed.

California Proposition 65 Warning.

Manuals

Use and Care Manual - PDF
Warranty - PDF
Specification - PDF
Instructions / Assembly - PDF

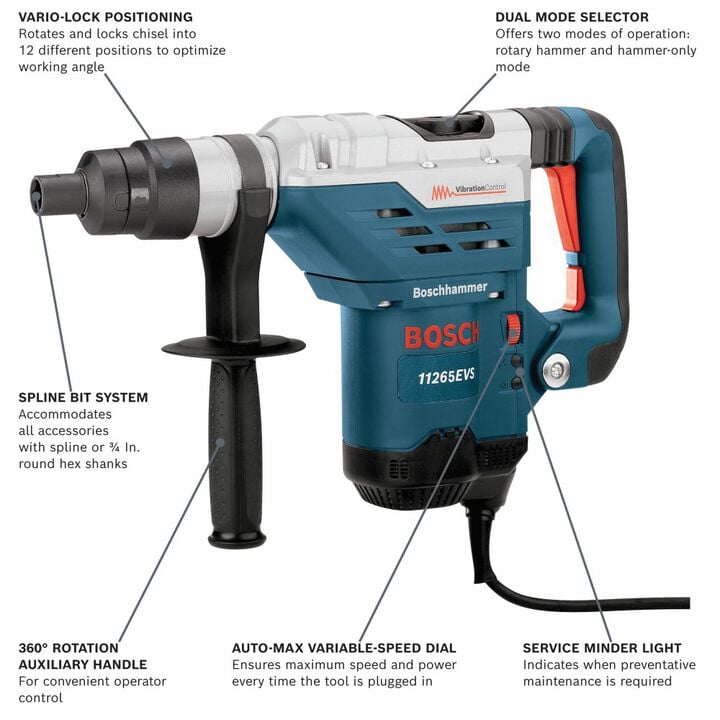

Features

Power-to-weight ratio - 13.0 Amp motor that drives 6.5 Ft.-Lbs. of impact energy in a 15.1 lb. hammer, for professional results
Vibration Control – vibration reduction in the hammer mechanism and the grip area provides maximum user comfort for extended periods of work
Constant Response circuitry — provides soft-start and maintains constant speed under load
Electro-pneumatic impact system maximizes impact force and minimizes vibration
Dual-mode selector — offers two modes of operation: rotary hammer and hammer-only mode
Turbo Power — delivers 20 percent more power in hammer-only mode
Auto-Max variable-speed dial — ensures maximum speed and power every time the tool is plugged in
Vario-Lock positioning — rotates and locks chisel into 12 different positions to optimize working angle
Integral clutch — disengages torque transmission if the bit gets into a bind situation
Service Minder light — indicates when preventative maintenance is required

Specifications

Brand Name
Bosch
Amperage (A)
13
Assembled Depth (in)
19.25
Assembled Weight (lbs)
15.1
Assembled Width (in)
4
California Proposition 65 Warning Required
No
Capacity
4 1/8 In Core Bit
Chuck Design
Keyless
Chuck Size
Spline
Color
Blue
Country of Origin
Germany
CSA Certified
Yes
Electronic Speed Control
Yes
ETL Listed
No
Handle Type
D-Handle
Height (in)
10.5"
Length
8 ft

MFG Part # (OEM)
11265EVS

Material
Metal, Plastic
Maximum RPM
340
Net Tool Weight (lbs)
15.1
Package Contents
(1) 11265EVS Spline 1-5/8 In. Combination Hammer, (1) Auxiliary Handle, (1) Grease Tube, (1) Carrying Case

Product Condition
New

Reversible
No
Restrictions
No Restrictions
Shipping Weight (lbs)
15.1
Side Handle
Yes
Thin Wall Core Bit Capacity
No
UL Listed
No

UPC
000346383850

Variable Speed
Yes
Voltage
120.0
Warranty Type
1 Year Limited
Weight (lbs)
15.1
