Product Details

Bosch 1-5/8 Inch SDS-max Combination Hammer
Bosch

Please follow our Community Guidelines and be kind!

Description

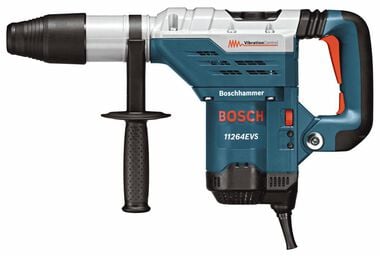

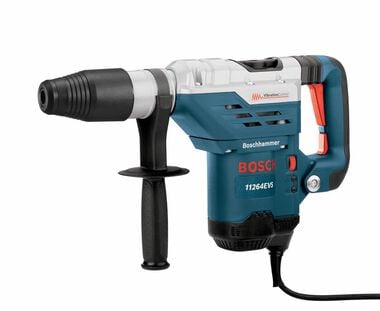

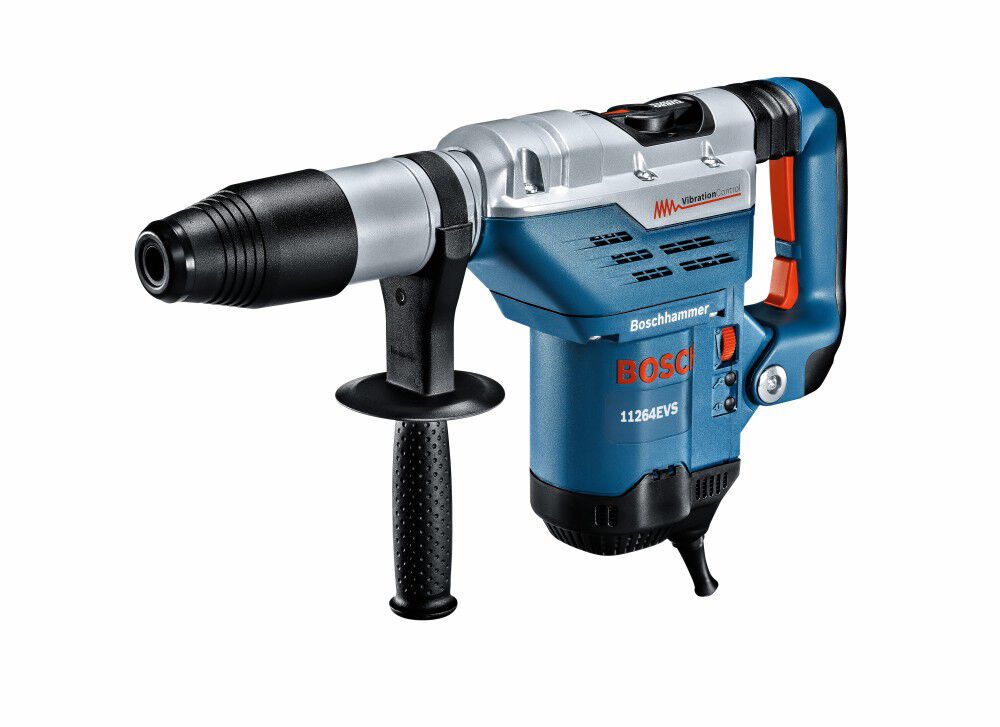

Bosch 1-5/8 Inch SDS-max Combination Hammer

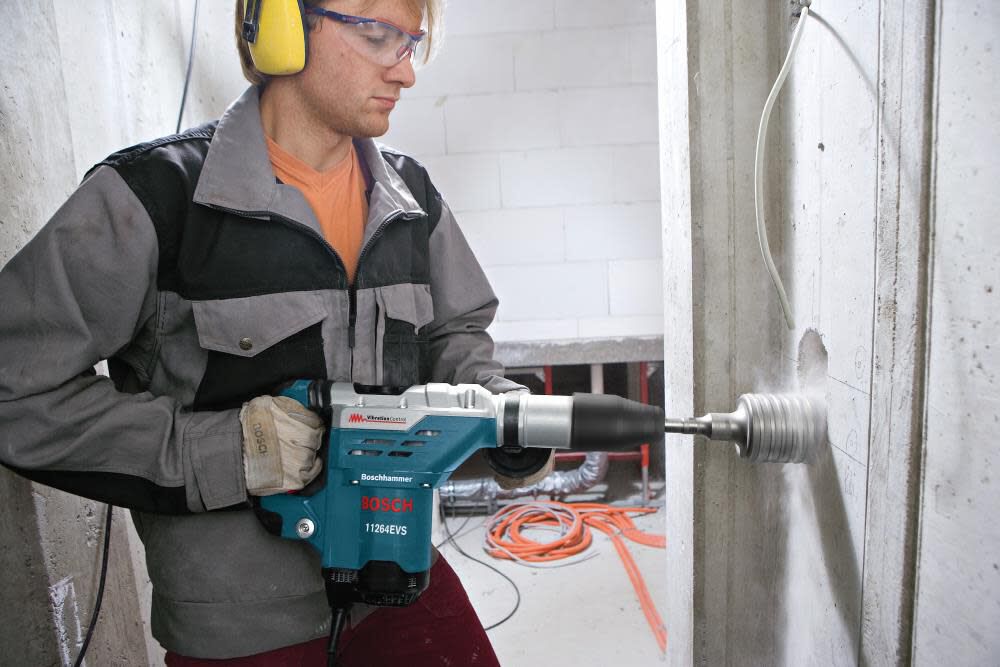

The Bosch 11264EVS SDS-max® 1-5/8- In. Combination Hammer features a powerful 13.0 Amp motor and has a dual-mode selector for combination versatility - rotary hammer or hammer-only mode. Providing 6.5 Ft.-Lbs. of impact energy, the tool weighs only 15.2 Lbs., for a top performance-to-weight ratio. The hammer has integral clutch that helps to minimize torque reaction. Concrete contractors will appreciate the production in drilling and chiseling applications. The hammer's 12-position Vario-Lock helps to optimize chiseling angles. Bosch's Vibration Control in the hammer mechanism and grip area provide improved user comfort. And with Constant Response circuitry, users benefit from smooth starts and constant load under pressure.

California Proposition 65 Warning.

Manuals

Use and Care Manual - PDF
Warranty - PDF
Instructions / Assembly - PDF

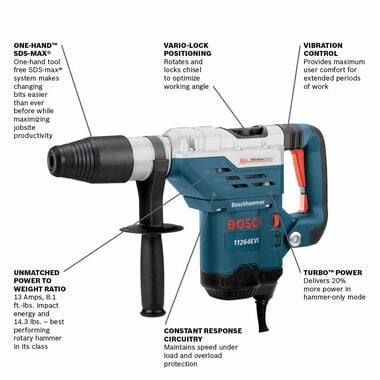

Features

Powerful 13.0 Amp motor – drives 6.5 Ft.-Lbs. of impact energy for professional results
Vibration Control – for all day jobs, tool allows for maximum user comfort
Constant Response circuitry — provides soft-start and maintains constant speed under load
Turbo Power — delivers 20 percent more power in hammer-only mode
Electro-pneumatic impact system maximizes impact force and minimizes vibration
SDS-max® bit system — tool-free bit changes with automatic bit-locking and maximum impact energy transfer rate
Dual-mode selector — Two modes of operation, rotary hammer and hammer only mode
Variable-speed dial — for accurate bit starting and controlled chipping applications

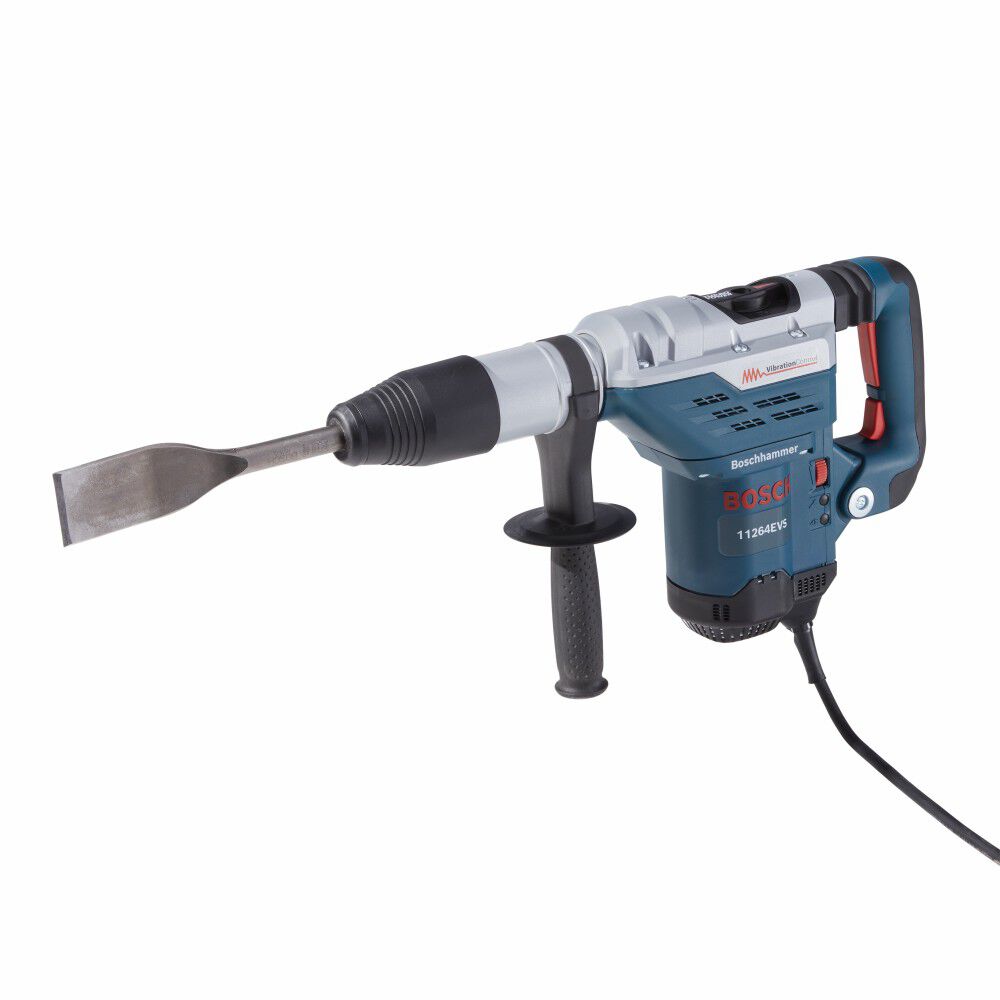

Vario-Lock positioning — rotates and locks chisel into 12 different positions to optimize working angle
Integral clutch — helps minimize torque reaction

Specifications

Brand Name
Bosch
Amperage (A)
13
Assembled Depth (in)
19.25
Assembled Weight (lbs)
15.2
Assembled Width (in)
4
California Proposition 65 Warning Required
No
Capacity
4 1/8 In Core Bit
Chuck Design
Keyless
Chuck Size
SDS-Max
Color
Blue
Country of Origin
Hungary
CSA Certified
Yes
Electronic Speed Control
Yes
ETL Listed
No
Handle Type
D-Handle
Height (in)
10.5"
Length
8 ft

MFG Part # (OEM)
11264EVS

Material
Metal, Plastic
Maximum RPM
340
Net Tool Weight (lbs)
14.3
Package Contents

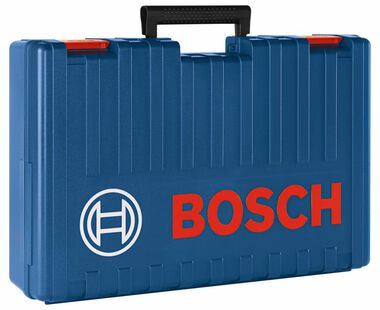

(1) SDS-max® 1-5/8 In. Combination Hammer, (1) Auxiliary Handle, (1) Grease Tube, (1) Carrying Case

Product Condition
New

Reversible
No
Restrictions
No Restrictions
Shipping Weight (lbs)
15.2
Side Handle
Yes
Thin Wall Core Bit Capacity
No
UL Listed
Yes

UPC
000346383843

Variable Speed
Yes
Voltage
120.0
Warranty Type
1 Year Limited
Weight (lbs)
15.2
