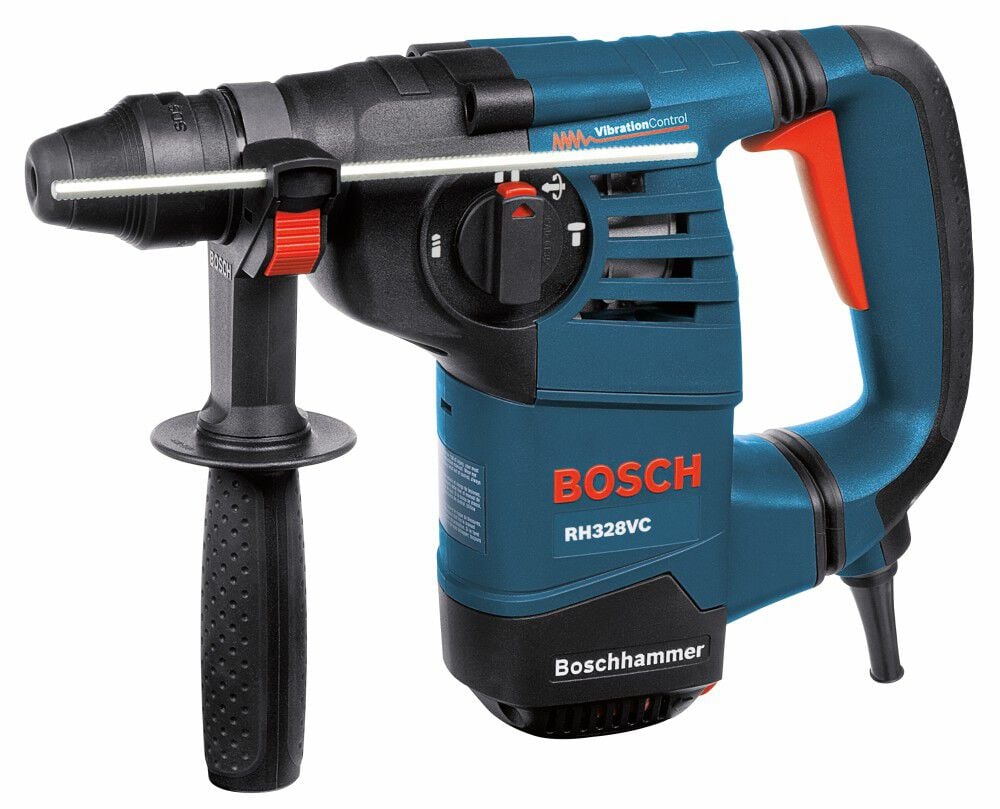

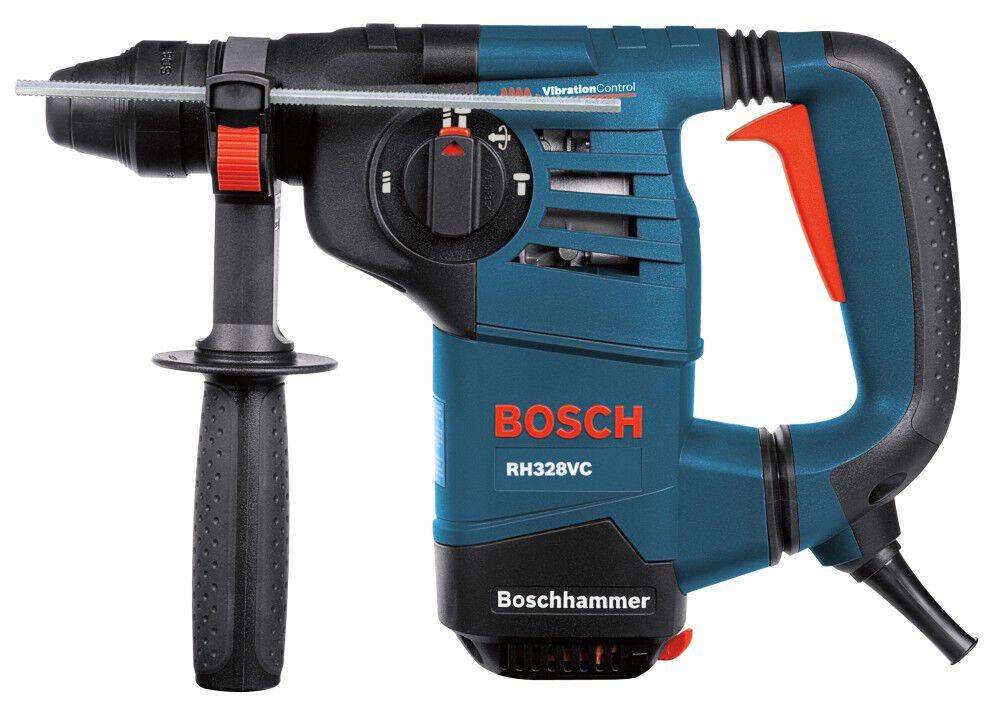

Bosch 1-1/8 Inch SDS-plus Rotary Hammer

SKU# RH328VC
4.3 out of 5 Customer Rating
Bosch 1-1/8 Inch SDS-plus Rotary Hammer, large image number 0
Bosch 1-1/8 Inch SDS-plus Rotary Hammer, large image number 1
Bosch 1-1/8 Inch SDS-plus Rotary Hammer, large image number 2
Bosch 1-1/8 Inch SDS-plus Rotary Hammer, large image number 3
Bosch 1-1/8 Inch SDS-plus Rotary Hammer, large image number 4
Bosch 1-1/8 Inch SDS-plus Rotary Hammer, large image number 5
Bosch 1-1/8 Inch SDS-plus Rotary Hammer, large image number 6
Bosch 1-1/8 Inch SDS-plus Rotary Hammer, large image number 7
Bosch 1-1/8 Inch SDS-plus Rotary Hammer, large image number 8
Bosch 1-1/8 Inch SDS-plus Rotary Hammer, large image number 9
Bosch 1-1/8 Inch SDS-plus Rotary Hammer, large image number 10
Bosch 1-1/8 Inch SDS-plus Rotary Hammer, large image number 11
Bosch 1-1/8 Inch SDS-plus Rotary Hammer, large image number 12
Bosch 1-1/8 Inch SDS-plus Rotary Hammer, large image number 13
Previous Next
+ 9 more
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Delivery to -
- Est. Arrival - Est. Ship - Est. Arrival - Get it as soon as {0} Edit location Add Zip Code
Pick Up at
Store Address -
Available within 4 hours
Contact Store:
Est. Email Delivery: within 24 hours
Made In USA
  Free Shipping (Ground shipping to lower 48)
Bosch 1-1/8 Inch SDS-plus Rotary Hammer
See Price in Cart
Discounted Price Shown in Cart
See Price in Cart
Discounted Price Shown in Cart
Sale:
Was:
Out of Stock
Selected Delivery Method: Shipping
Shipping
Get it as soon as {0}
Pick up in Store
Available within 4 hours
Not Available for Pick Up
Qty
Secure Checkout
Affirm
Pay as low as $33/mo.
with Affirm

Product Details

Bosch 1-1/8 Inch SDS-plus Rotary Hammer
Bosch

Please follow our Community Guidelines and be kind!

Description

Bosch 1-1/8 Inch SDS-plus Rotary Hammer

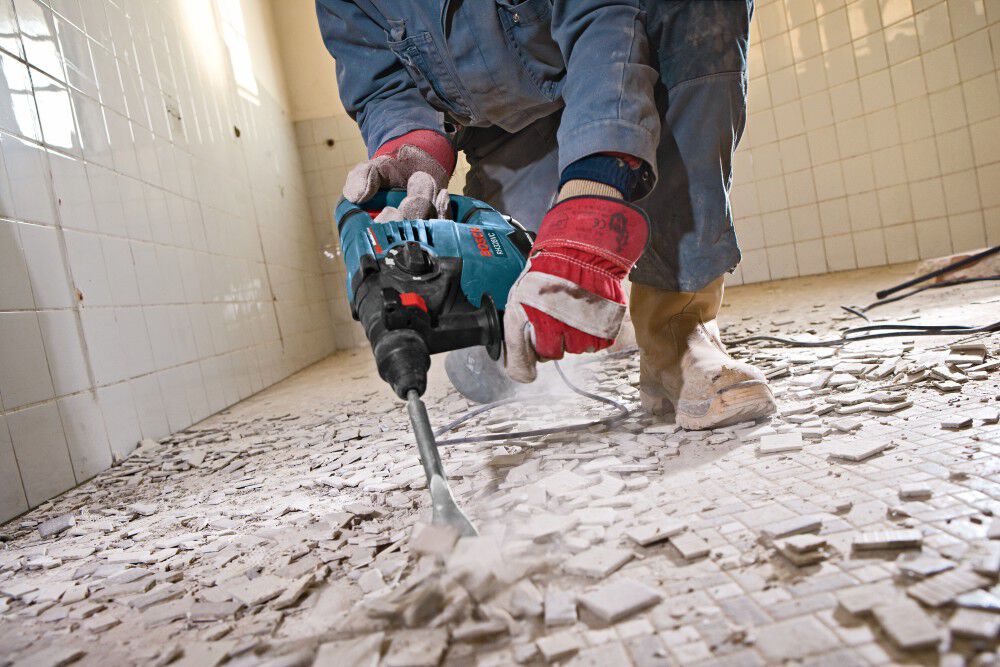

The Bosch RH328VC SDS-plus® 1-1/8 In. Rotary Hammer can deliver 2.4 Ft.-Lbs. of impact energy, but this tool weighs only 7.7 Lbs. and is a compact length of 12.5 In., for an outstanding power-to-size ratio. The 8.0-amp motor generates up to 4,000 blows per minute, making it an ideal choice for construction or demolition. The multifunction selector gives the user the versatility to match mode to application – rotary hammer, rotation-only or hammer-only mode. It has Vibration Control in the hammer mechanism and grip area to provide improved user comfort. The hammer provides an integral clutch that discontinues power transmission for bind situations, and it has Vario-Lock to set the chisel into one of 12 positions for better leverage.

California Proposition 65 Warning.

Manuals

Installation Guide - PDF
Use and Care Manual - PDF
Warranty - PDF
Specification - PDF
Instructions / Assembly - PDF

Features

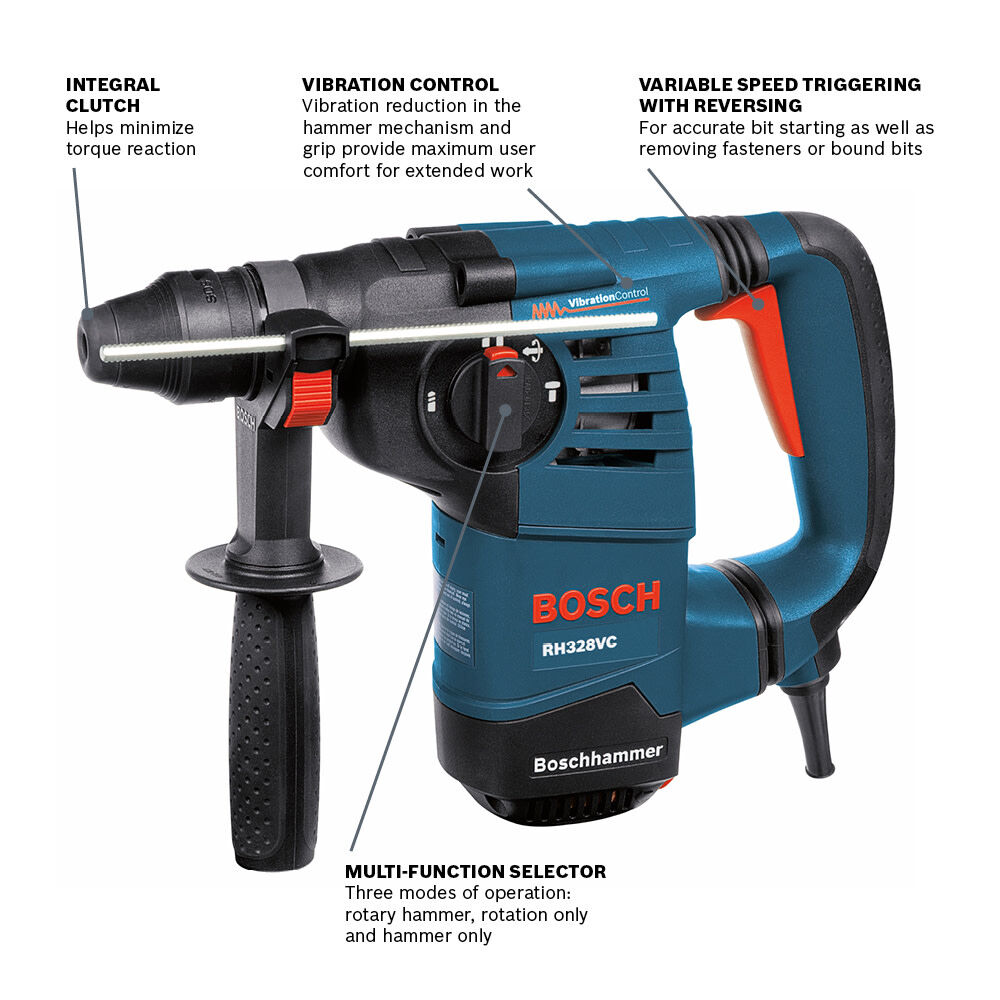

Powerful 8.0-amp motor – drives 2.4 Ft.-Lbs. of impact energy for professional results
Vibration Control in the hammer mechanism and the grip area – maximum user comfort for extended periods of work
SDS-plus® shank system — for use with bits up to 1-1/8 In. diameter

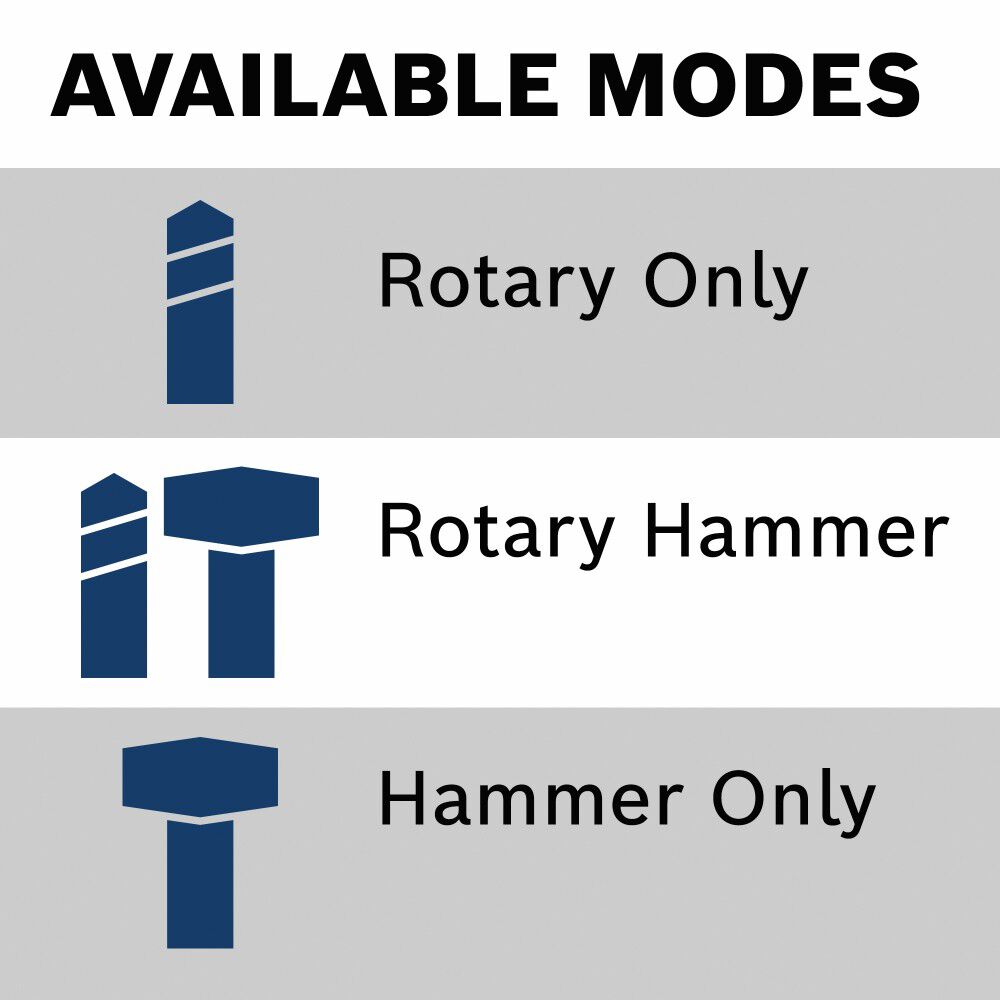

Multifunction selector — rotary hammer, rotation-only and hammer-only mode
Vario-Lock system with reversing — for accurate bit starting as well as removing fasteners or bound bits
Integral clutch — disengages torque transmission if the bit gets into a bind situation
Variable-speed trigger – for better operator control and accurate bit starting

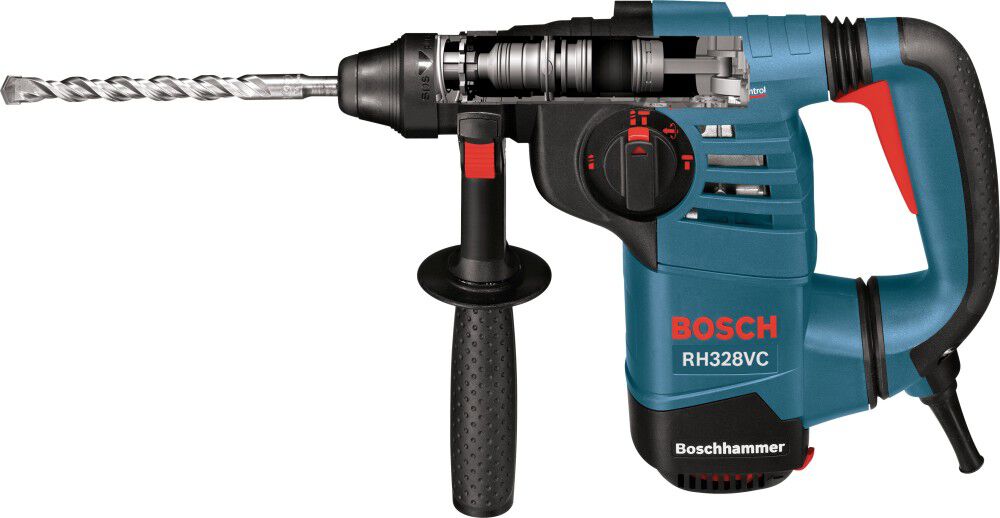

Bosch impact system – maximizes impact force and minimizes vibration
360° rotation auxiliary handle – for convenient operator control
First-rate power-to-size ratio – hammer weighs only 7.7 Lbs.

Specifications

Brand Name
Bosch
Amperage (A)
8
Assembled Depth (in)
12.5
Assembled Weight (lbs)
7.7
Assembled Width (in)
3
California Proposition 65 Warning Required
No
Capacity
3 1/8 In Core Bit
Chuck Design
Keyless
Chuck Size
SDS-plus
Color
Blue
Country of Origin
Hungary
CSA Certified
Yes
Cutting Capacity
0.5" Thick Metal, 1.125" Thick Wood
Electronic Speed Control
No
ETL Listed
No
Handle Type
D-Handle
Height (in)
9"
Length
8 ft

MFG Part # (OEM)
RH328VC

Material
Metal, Plastic
Maximum RPM
900
Net Tool Weight (lbs)
7.7
Package Contents

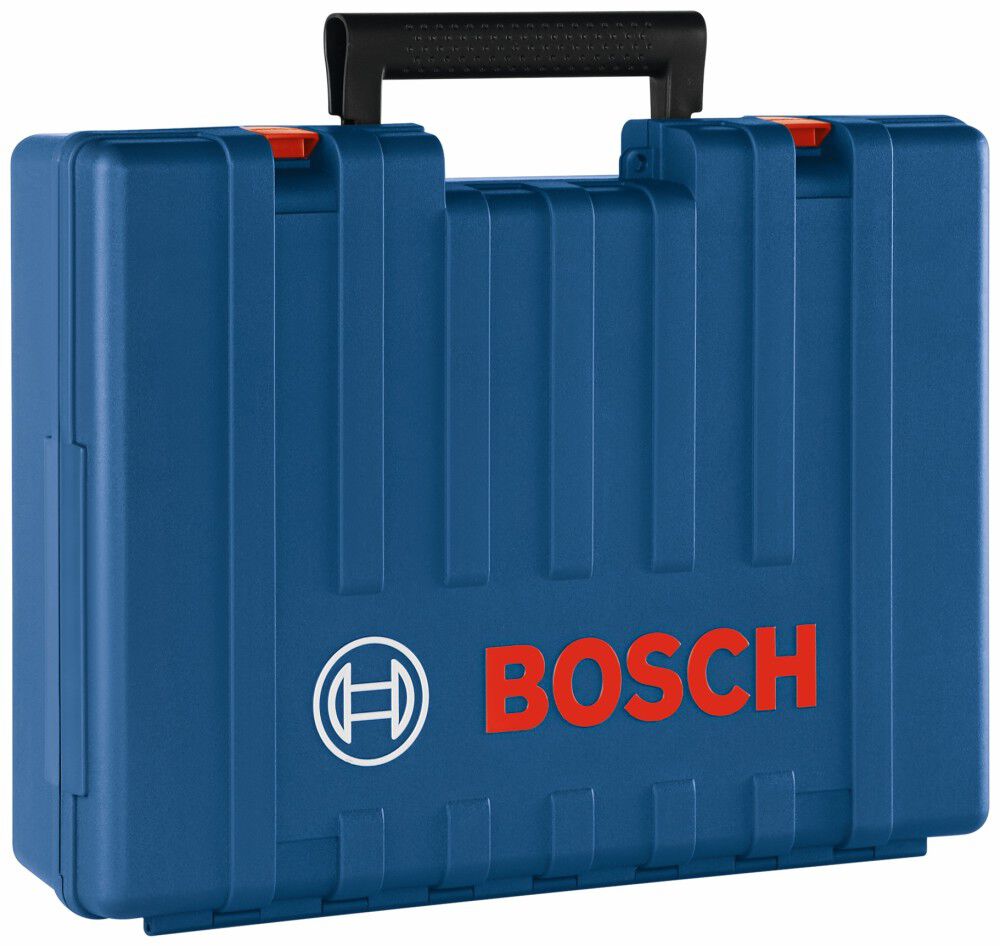

(1) RH328VC SDS-plus® 1-1/8 In. Rotary Hammer, (1) Auxiliary Handle, (1) Depth Gauge, (1) Carrying Case

Product Condition
New

Reversible
No
Restrictions
No Restrictions
Shipping Weight (lbs)
7.7
Side Handle
Yes
Thin Wall Core Bit Capacity
Yes
UL Listed
Yes

UPC
000346398472

Variable Speed
Yes
Voltage
120.0
Warranty Type
1 Year Limited
Weight (lbs)
7.7
