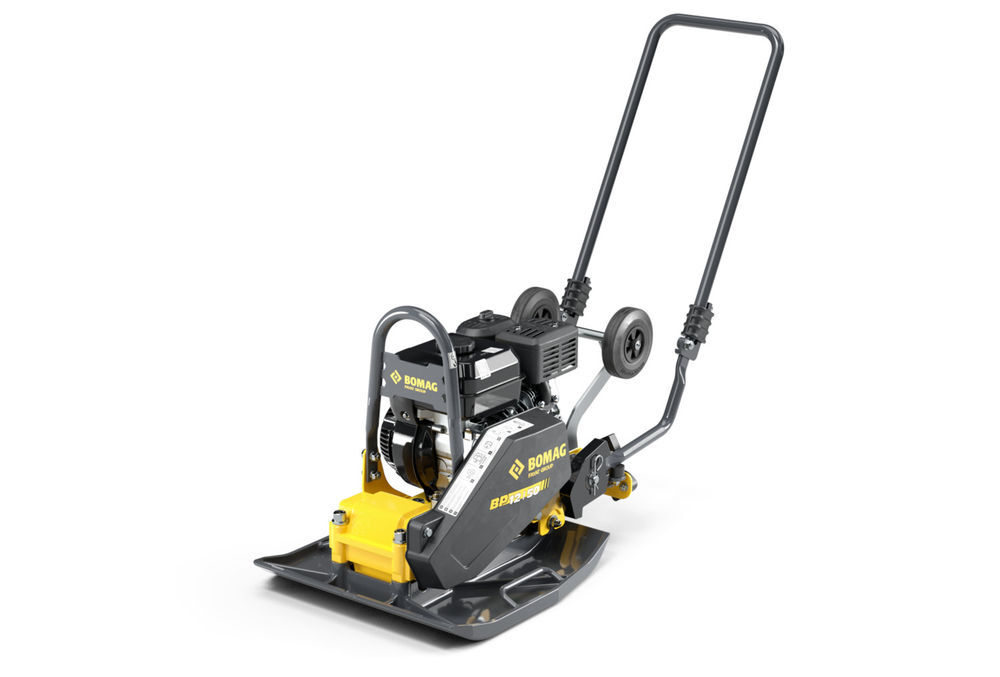

Bomag 19.7 Inch Single Direction Vibratory Plate

Name: Bomag 19.7 Inch Single Direction Vibratory Plate
Brand: Bomag
SKU: BP 12/50
Price: 2399.99 USD
Availability: InStock

SKU# BP 12/50

Bomag 19.7 Inch Single Direction Vibratory Plate, large image number 0

Bomag 19.7 Inch Single Direction Vibratory Plate, large image number 1

Freight Shipping Rates Apply

Calculated Delivery Rate at Checkout

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Product Details

Bomag 19.7 Inch Single Direction Vibratory Plate

Bomag

Please follow our Community Guidelines and be kind!

Description

Bomag 19.7 Inch Single Direction Vibratory Plate

On the new single direction vibratory plate from BOMAG, the water tank, rubber mat and transport wheels are not fixed features, but rather individual upgrades. Such upgrades can be retrofitted and installed as required in a few simple steps, and can in some cases also be exchanged with other machines in the BOMAG BP series. A BOMAG vibratory plate stands for quality: every machine and function is thoroughly tested before delivery. The choice of machine components and the robust construction also help to prevent downtime. The engine in a BOMAG vibratory plate is particularly long-lasting and powerful. This factor, in combination with BOMAG's special base plate design and perfectly matched vibration frequency, enables very high surface coverage.

California Proposition 65 Warning.

Manuals

Specification - PDF

Features

A V-belt guard fitted as standard effectively prevents operator injuries. The fully enclosed design also significantly reduces wear and thus lowers repair costs noticeably

Thanks to low hand-arm vibration (under 5 m_s2), BOMAG's single direction vibratory plate enables particularly gentle yet highly efficient compaction. No additional documentation is required for its use

The guide bar is mounted in generously dimensioned silent blocks. This keeps hand-arm vibrations to a minimum. The machine's design is also particularly ergonomic. The service points are directly accessible

If the vibratory plate is equipped with BOMAG's spray bar kit, water is sprayed directly onto the base plate across the entire width. This prevents asphalt from sticking to the plate

BOMAG is committed to quality and uses extra high-quality components. The exciter is cast directly into the machine. No screws can loosen here

For all models in the BP series and for use in paving, highly wear-resistant polyurethane mats are available. They allow for particularly gentle compaction of concrete paving stones-especially those with a coated surface. The easy-to-install plastic mats prevent marks on the paving stones while reducing the risk of breakage

The guide handle can be folded without tools. The machine's compact dimensions make it easy to load. The transport handles offer a secure grip. Transport wheels are also available

Standards: Vibration insulated steering handle, foldable. Detachable steering handle. Highly wear resistant base plate. Automatic shutdown at low oil level. Recoil starter. Fully protected V-belt. Carrying handles. Single point lifting device. Protective covering. Engine protection frame

3-2-1 Warranty
