Barreto Mfg 31 HP Tracked Stump Grinder

Name: Barreto Mfg 31 HP Tracked Stump Grinder
Brand: Barreto Mfg
SKU: E30SGB
Price: 25595.00 USD
Availability: InStock

SKU# E30SGB

Barreto Mfg 31 HP Tracked Stump Grinder, large image number 0

Barreto Mfg 31 HP Tracked Stump Grinder, large image number 1

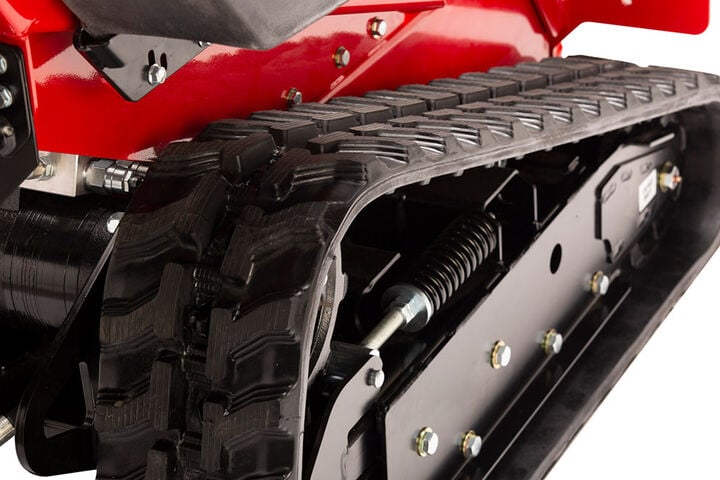

Barreto Mfg 31 HP Tracked Stump Grinder, large image number 2

Barreto Mfg 31 HP Tracked Stump Grinder, large image number 3

Barreto Mfg 31 HP Tracked Stump Grinder, large image number 4

Barreto Mfg 31 HP Tracked Stump Grinder, large image number 5

Barreto Mfg 31 HP Tracked Stump Grinder, large image number 6

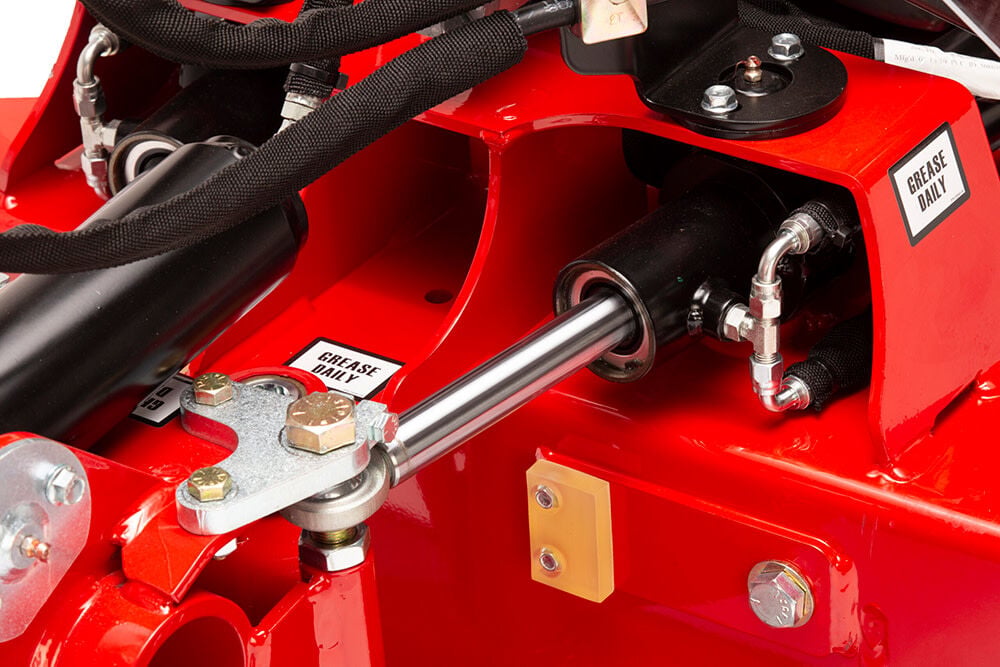

Barreto Mfg 31 HP Tracked Stump Grinder, large image number 7

Barreto Mfg 31 HP Tracked Stump Grinder, large image number 8

Barreto Mfg 31 HP Tracked Stump Grinder, large image number 9

Barreto Mfg 31 HP Tracked Stump Grinder, large image number 10

Barreto Mfg 31 HP Tracked Stump Grinder, large image number 11

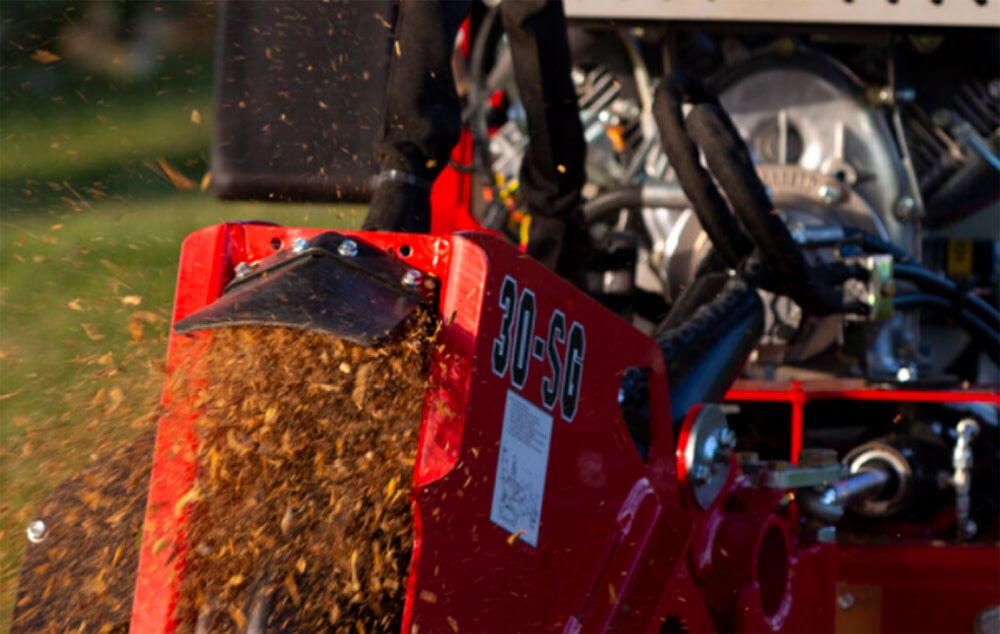

Barreto Mfg 31 HP Tracked Stump Grinder, large image number 12

+ 9 more

Made In USA

Flatbed Trucking Rates Apply

Calculated Delivery Rate at Checkout

Acme Tools Guarantee

Qty

(Max. order of 1,000)

Secure Checkout

Need more information ?

Product Details

Barreto Mfg 31 HP Tracked Stump Grinder

Barreto Mfg

Please follow our Community Guidelines and be kind!

Description

Barreto Mfg 31 HP Tracked Stump Grinder

An offshoot of the dependable TK track trencher, the 30SG stump grinder features a variant of the same time-tested track drive platform used by the TK series. The 30SG has a hydraulically-driven cutter wheel that is raised and lowered into the stump and then moved from side to side to cut down. The 30SG power options consist of a 31 HP Briggs & Stratton vanguard v-twin or a 26.5 HP Kohler EFI engine. The engine is coupled to two gear pumps: the larger gear pump drives the cutter wheel and the smaller pump works the tilt and swing cylinders. The tracks are driven by independent hydrostatic pumps mounted on the rear of the engine for easy access and simple linkage control. Counterbalance valves on each track drive prevent the track motors from slipping while the cutter wheel is engaged in the cutting process, even while operating on a slope.

California Proposition 65 Warning.

Manuals

Use and Care Manual - PDF

Features

Cutter wheel operation and articulating arm are operated by controls mounted on console.

Cutter wheel is activated by a switch on the control stick and has a secondary safety switch to prevent accidental engagement

Back and forth movement across the stump, as well as depth of cut, are easily controlled by handles on the console, allowing for carefully controlled movement of the cutter wheel as it reduces the stump to chips

All hydraulic drive to the cutter wheel eliminates costly belts

16 Green carbide teeth

7.1 In. wide tracks

14 Gallon hydraulic reservoir

290 Ft. per minute forward drive speed

Specifications

Brand Name

Barreto Mfg

Assembled Weight (lbs)

1700

Blade Material

Carbide

Blade Width (in)

1-7/16"

California Proposition 65 Warning Required

Yes

Capacity

Hydraulic Fluid: 14 Gal

Color

Red

Country of Origin

United States

Diameter

16-5/16 in

Engine

Briggs and Stratton Vanguard V-Twin

Engine Displacement (cc)

896

Engine Torque (ft-lbs)

Fuel Type

Gas

Height (in)

49.5

Length

98 in

MFG Part # (OEM)

E30SGB

Package Contents

31 HP Tracked Stump Grinder

Product Condition

New

Recommended Oil & Capacity

Recommended Safety Equipment

Self Propelled

Yes

Start Type

Electric

UPC

405300000215

Warranty Type

Lifetime against Manufacturer's Defects

Weight (lbs)

1700
