Product Details

Baldor-Reliance 2HP 1800rpm 184 TEFC 1ph AC Motor
Baldor-Reliance

Please follow our Community Guidelines and be kind!

Description

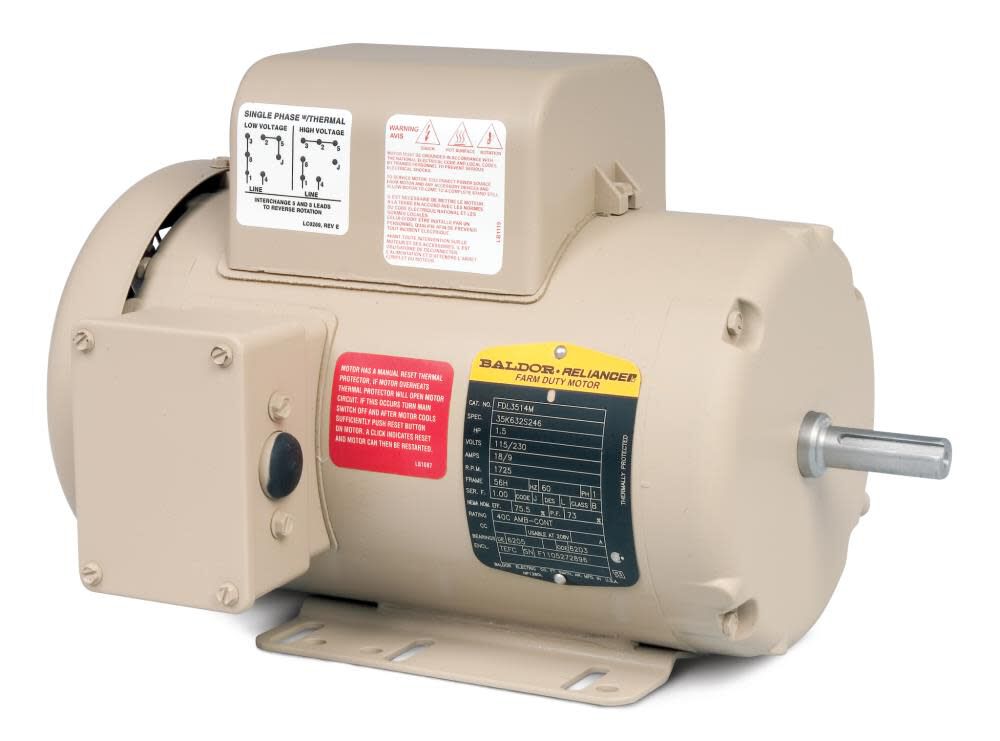

Baldor-Reliance 2HP 1800rpm 184 TEFC 1ph AC Motor

Replace worn general-purpose motors with the Baldor®-2HP, 1725RPM, 1PH, 60HZ, 184, 3634L, TEFC, F1, N, AC Motor. The motor operates equipment, including bulk feeders, barn cleaners, augur drives, irrigation tower drives and pumps and fans. The Baldor 2 hp motor puts out 1,800 rpm at load and has an extra-high torque rating of 6 pounds per foot at full load. The single-phase reversible-shaft 4-pole motor runs with 24.8 Amps at 115V and 12.4 Amps at 230V. The Baldor AC motor has a totally enclosed fan-cooled steel-frame housing that resists residue and moisture. Double-sealed ball bearings are permanently lubricated with high-temperature grease, providing additional dirt and moisture protection. The endplate and inner shaft have a protective V-ring slinger and lip seal, and condensation drains and a conduit box with gasket provide moisture resistance for phase coils and wire connections. Tan epoxy paint on the Baldor motor housing adds extra the protection.

California Proposition 65 Warning.

Manuals

Warranty - PDF

Features

Baldor 2 hp AC motor comes with a 3-year limited warranty and is made in the USA
Epoxy paint provides rust-resistant coating
Condensation drains and conduit box repel moisture from electrical elements
V-ring slinger and lip seal prevent residue build up on the inner shaft
Ball bearings are double sealed and never need lubrication
TEFC motor provides dirt and moisture protection
Single-phase, 4-pole Baldor augur-drive motor has variable-amp ratings at 115V and 230V
Motor has an output of 1,800 rpm and a 6-pound-per-foot extra-high torque rating
Baldor 2 hp motor replaces power sources for important farm-duty equipment

Specifications

Brand Name
Baldor-Reliance
Assembled Weight (lbs)
76
California Proposition 65 Warning Required
Yes
Color
Tan
Country of Origin
United States
CSA Certified
Yes
Horsepower (hp)
2
Mounting Type
Foot Mounted
Overall Height (in)
8.44
Overall Length (in)
15.67
Overall Width (in)
11.17
Package Contents
2HP 1800rpm 184 TEFC 1ph AC Motor

Product Condition
New

RPM
1725
UL Listed
Yes
Voltage
115/230
Warranty Type
Limited
Weight (lbs)
76
