Description

Baileigh SH-8010-HD 80 Inch 10 Gauge Hydraulic Shear

The Baileigh SH-8010-HD 80 Inch 10 Gauge Hydraulic Shear delivers heavy-duty cutting capacity for shops working with mild steel up to 10 gauge. Its 7.5 HP motor runs on 220-volt, 3-phase power, while the fully welded steel plate construction provides a rigid foundation for long-term use. Hardened ways and heavy-duty bearings help reduce friction as the shearing carriage moves, and roller bars make material easier to feed across the heavy-duty table. An adjustable back gauge, side gauges, rake angle, and blade gap support repeatable cuts, while hydraulic hold-downs keep material securely against the table. Reversible blades and a shadow line further support efficient cutting. The shear includes a 1-year parts warranty and lifetime phone technical support.

California Proposition 65 Warning.

Features

Handles mild steel up to 10 gauge across an 80-inch cutting length for heavy-duty sheet metal work

Uses a 7.5 HP motor powered by 220-volt, 3-phase electricity for demanding production applications

Features a rigid, fully welded steel plate frame designed to minimize flex and provide long-term durability

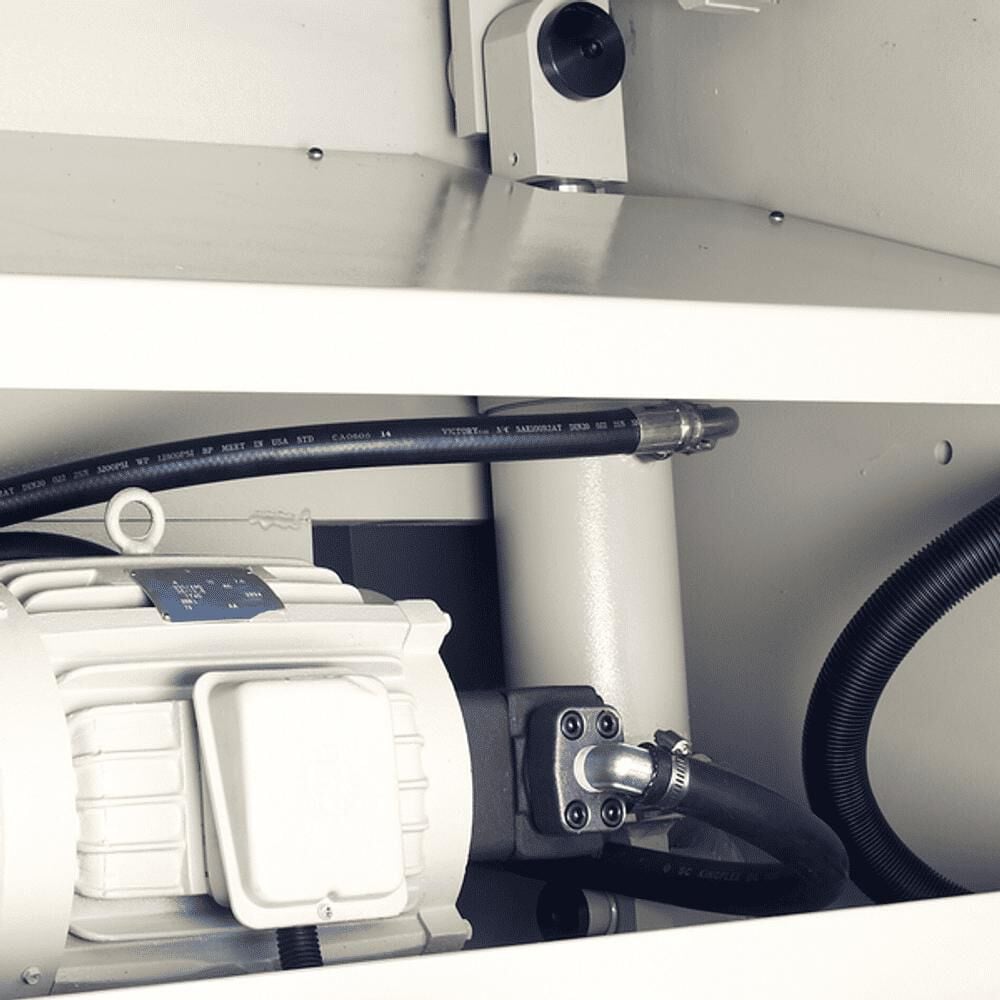

Positions the industrial-grade hydraulic system at the front for easier access during fluid changes

Uses hardened ways and heavy-duty bearings on the shearing carriage to reduce friction during operation

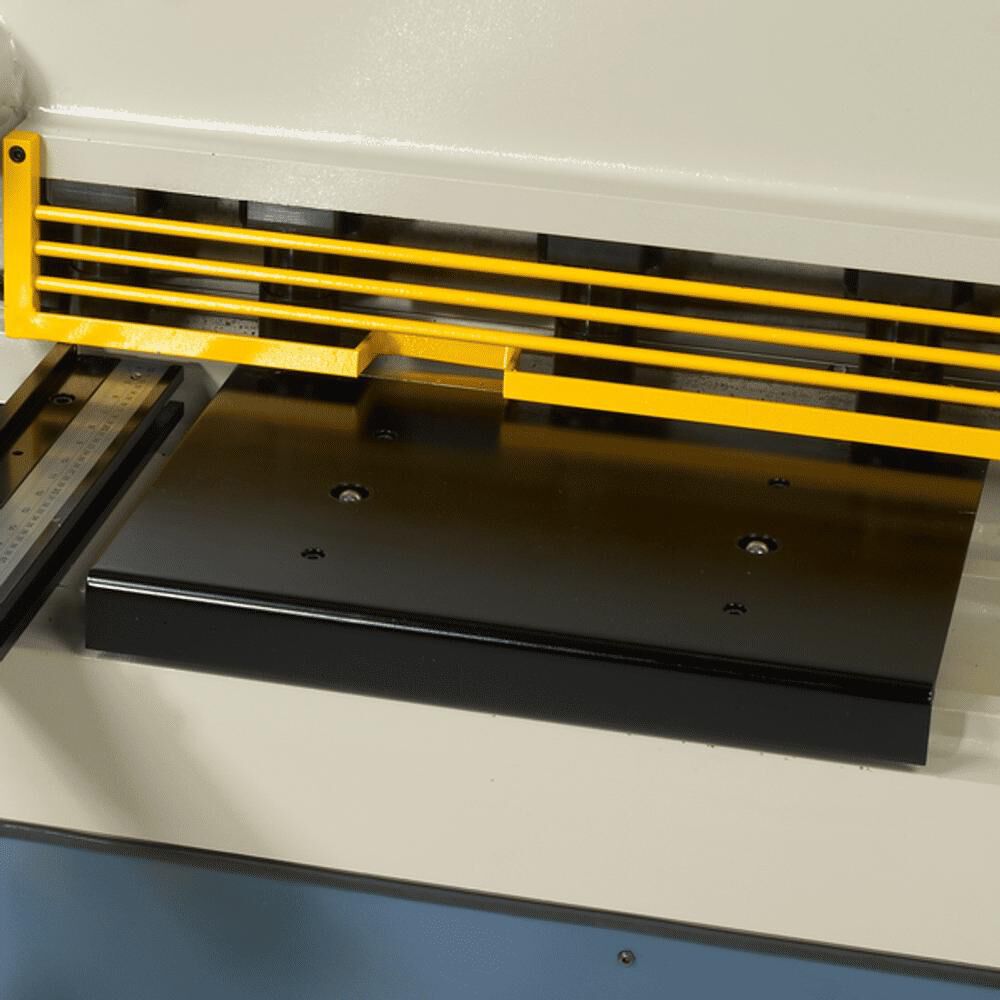

Includes a heavy-duty table with roller bars to make feeding material into the machine easier

Provides a manually adjustable 23.62-inch back gauge for repeatable cuts and side gauges for maintaining 90° cuts

Offers jog, single-cycle, and automatic cycling modes for setup, individual cuts, and continuous production runs

Uses an adjustable rake angle to match material thickness, helping minimize burrs and reduce hydraulic strain

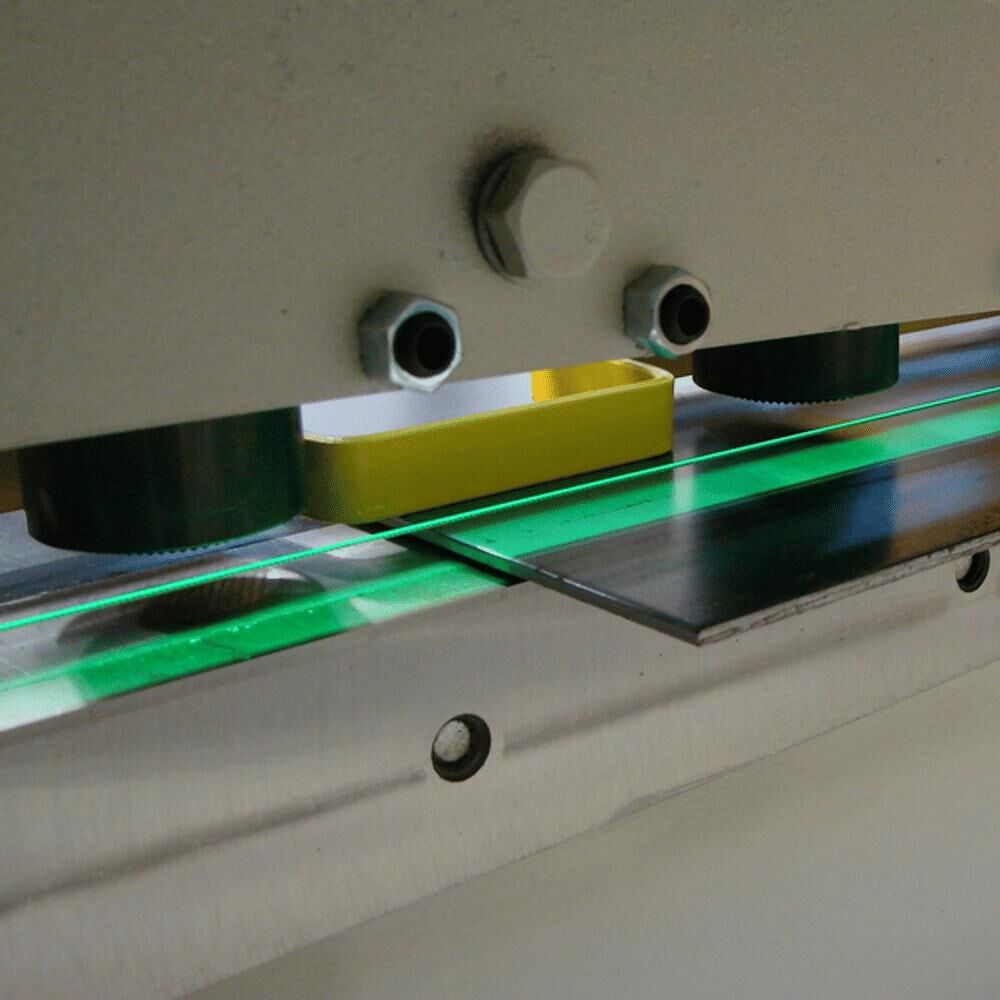

Includes adjustable blade gap, hydraulic hold-downs, a shadow line, and reversible high-carbon chromium blades with 2-sided upper and 4-sided lower edges
