Baileigh SBR-5220 52 Inch 20 Gauge 3-in-1 Combination Shear Brake Roll
Baileigh

Please follow our Community Guidelines and be kind!

Description

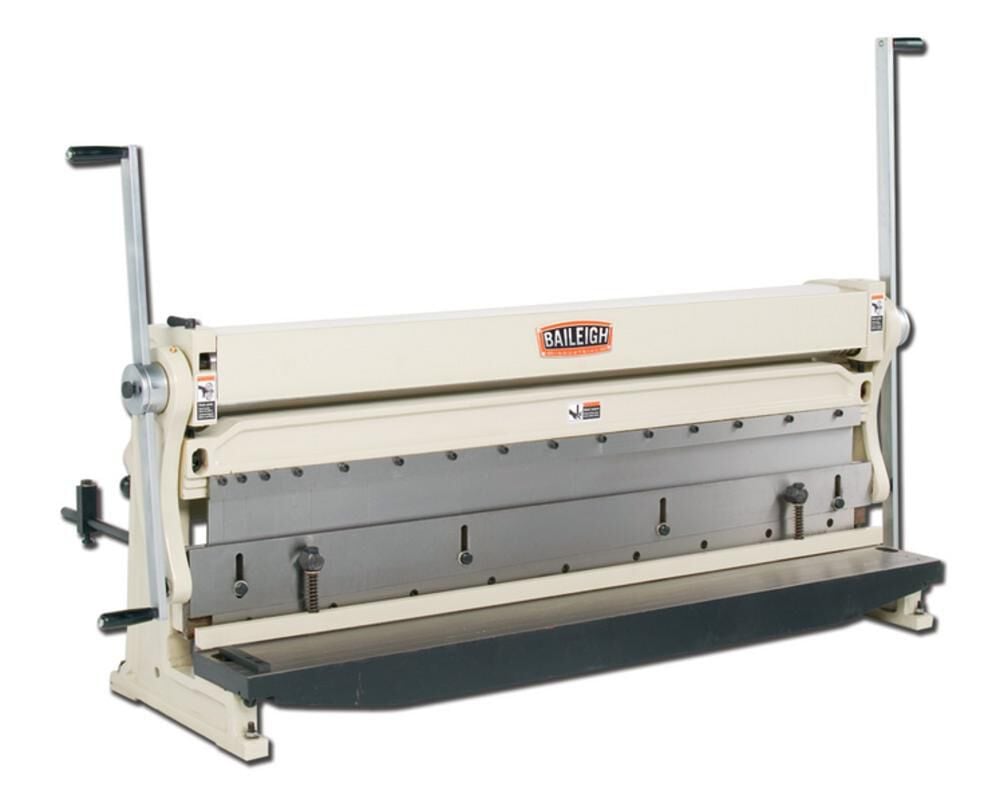

Baileigh SBR-5220 52 Inch 20 Gauge 3-in-1 Combination Shear Brake Roll

The Baileigh SBR-5220 52 Inch 20 Gauge 3-in-1 Combination Shear Brake Roll combines a slip roll, press brake, and shear in one machine to save valuable shop space. Its 52-inch bed width accommodates standard 4-foot metal sheets, while the machine handles up to 20-gauge mild steel and 16-gauge aluminum across the full working width. The manual slip roll features hardened top and bottom rolls, three grooves for wire and round rod, and a 2-inch minimum roll diameter. The press brake bends material up to 90° and includes movable finger dies for forming boxes and pans in different sizes. A crowning feature adjusts tooling camber for consistent bends, while spring-loaded hold-downs and reversible shear blades support clean cuts. The 830-pound steel frame provides durability for small-shop, maintenance, and R&D applications.

California Proposition 65 Warning.

Features

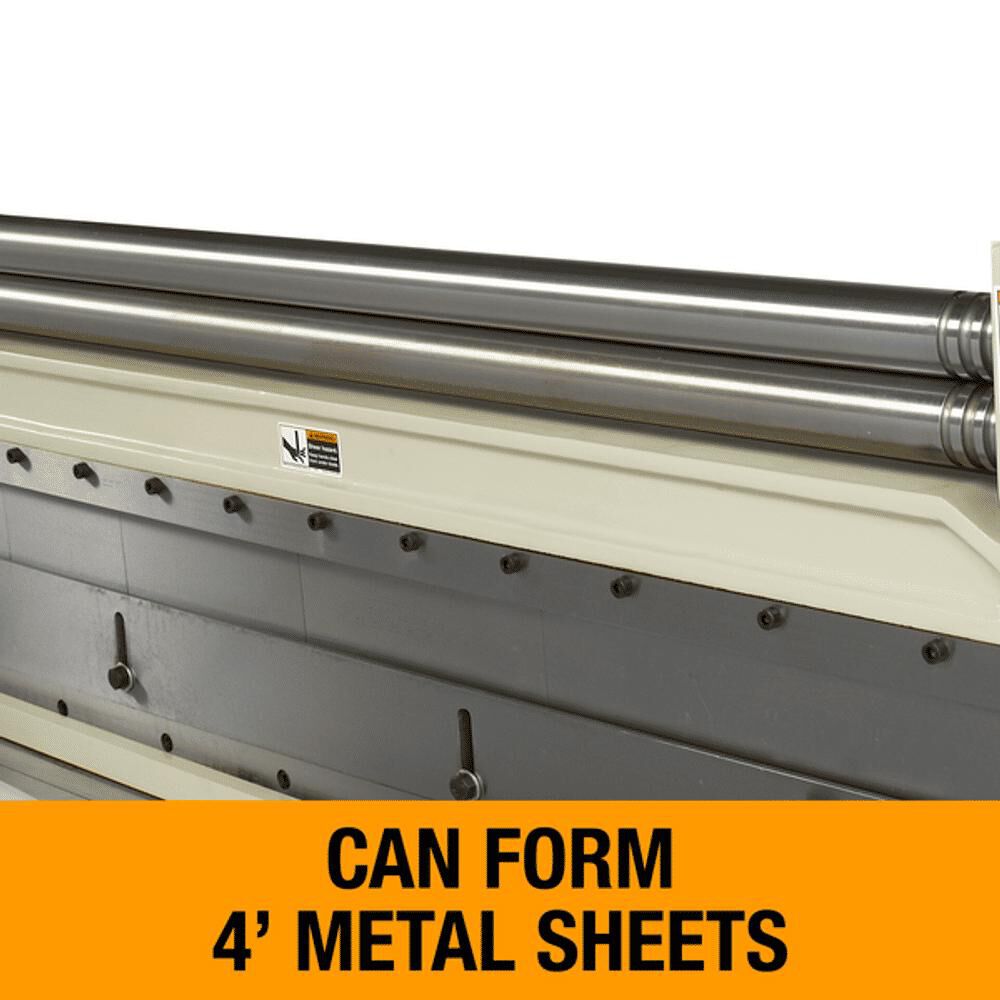

Provides a 52-inch bed width for working with standard 4-foot metal sheets
Handles up to 20-gauge mild steel and 16-gauge aluminum across the full working width
Combines a manual slip roll, press brake, and shear in one space-saving machine
Features hardened top and bottom rolls for durable manual roll forming

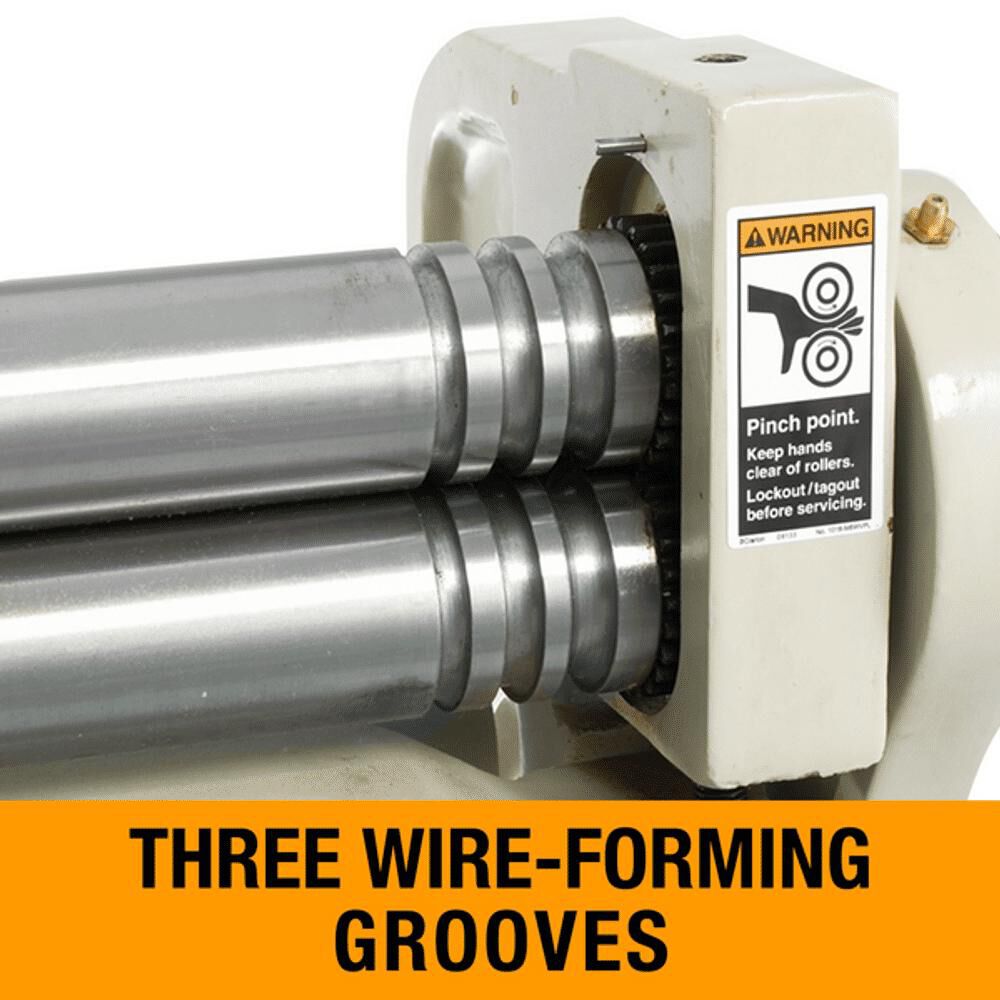

Includes 3 grooves for rolling wire and round rod
Forms a minimum 2-inch roll diameter for tight-radius applications

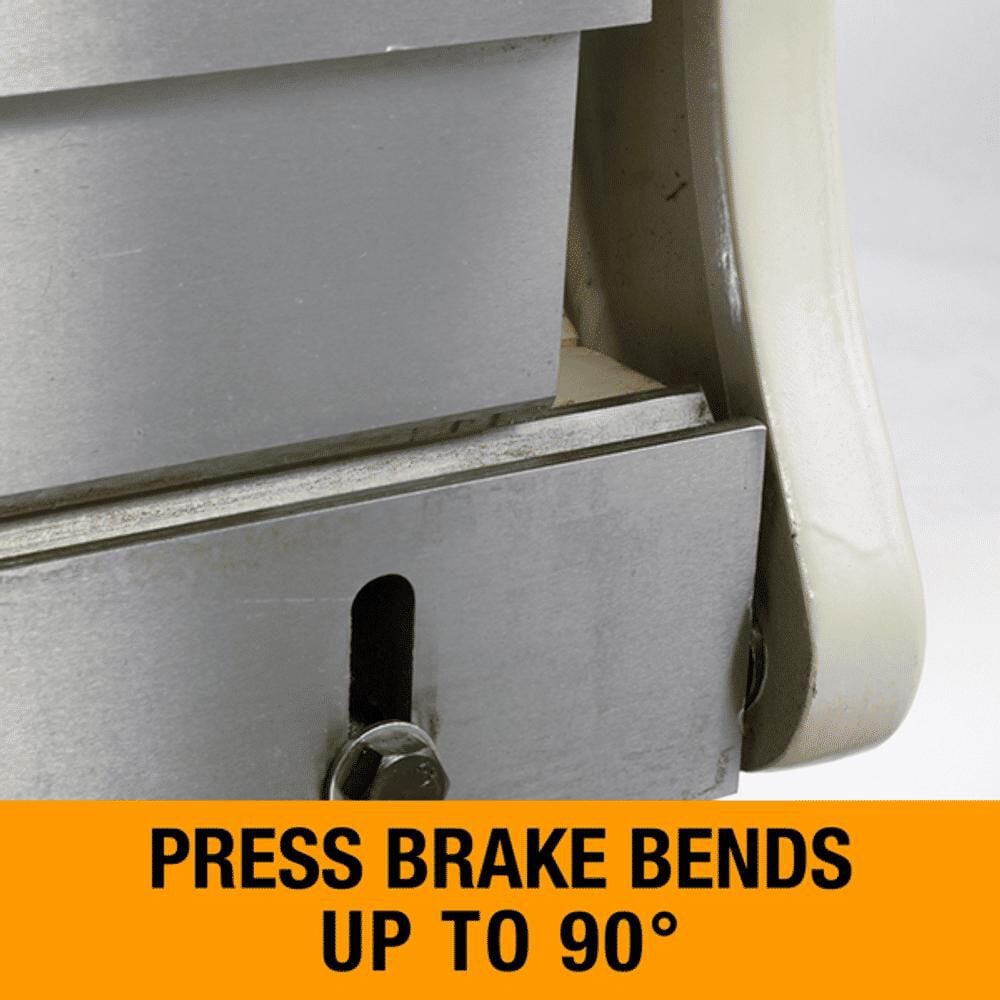

Provides up to a 90° bend angle with a hardened single-V bottom die
Uses movable, hardened finger dies that can be rearranged for boxes and pans in varying sizes
Includes a crowning feature for adjusting tooling camber and producing crisp bends across the workpiece

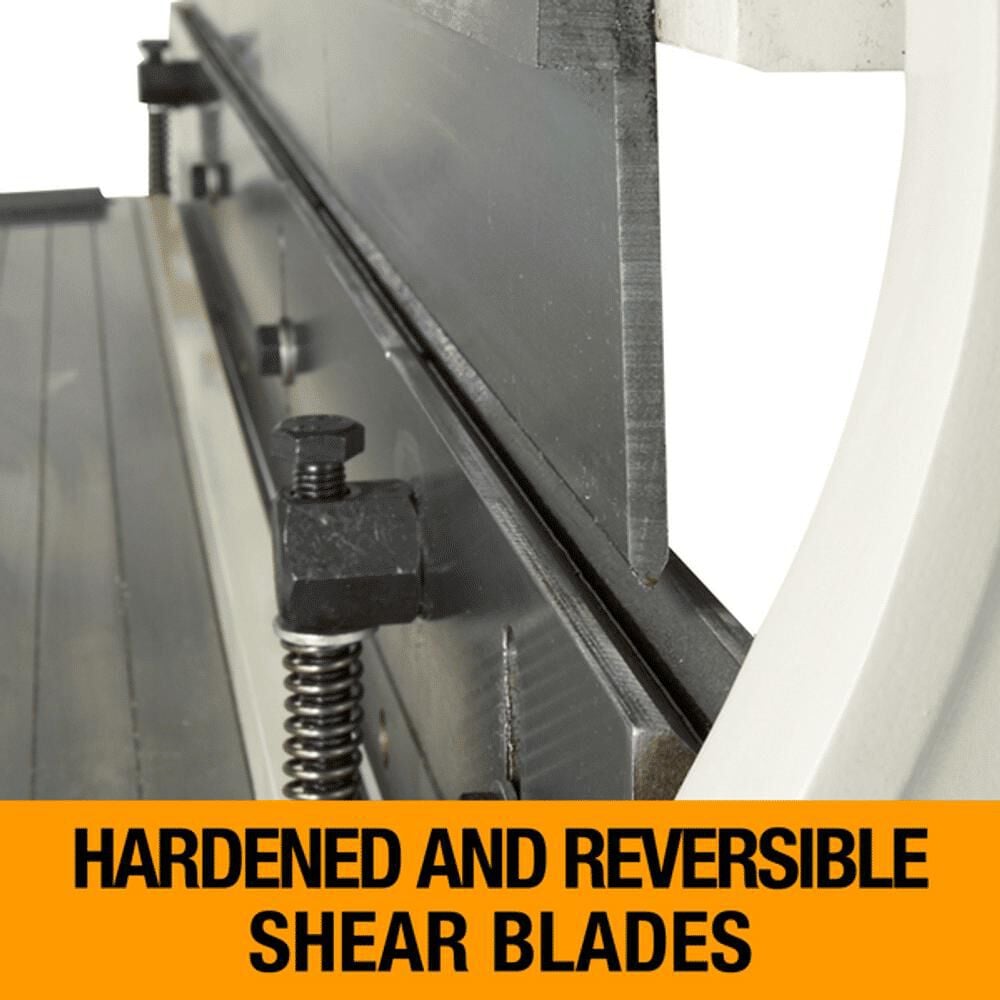

Uses spring-loaded shear hold-downs, hardened reversible blades, and a back gauge for consistent, repeatable cuts

Specifications

Brand Name
Baileigh
Assembled Weight (lbs)
860
Country of Origin
Taiwan

MFG Part # (OEM)
1007002

Package Contents
(1) 3-in-1 Combination Shear Brake Roll

Product Condition
New

Restrictions
CA Prop 65

UPC
731325412727

Warranty Type
1 Year Limited
