Baileigh HPB-78NC 230V 3PH 78 Ton Horizontal Press Brake
Baileigh

Please follow our Community Guidelines and be kind!

Description

Baileigh HPB-78NC 230V 3PH 78 Ton Horizontal Press Brake

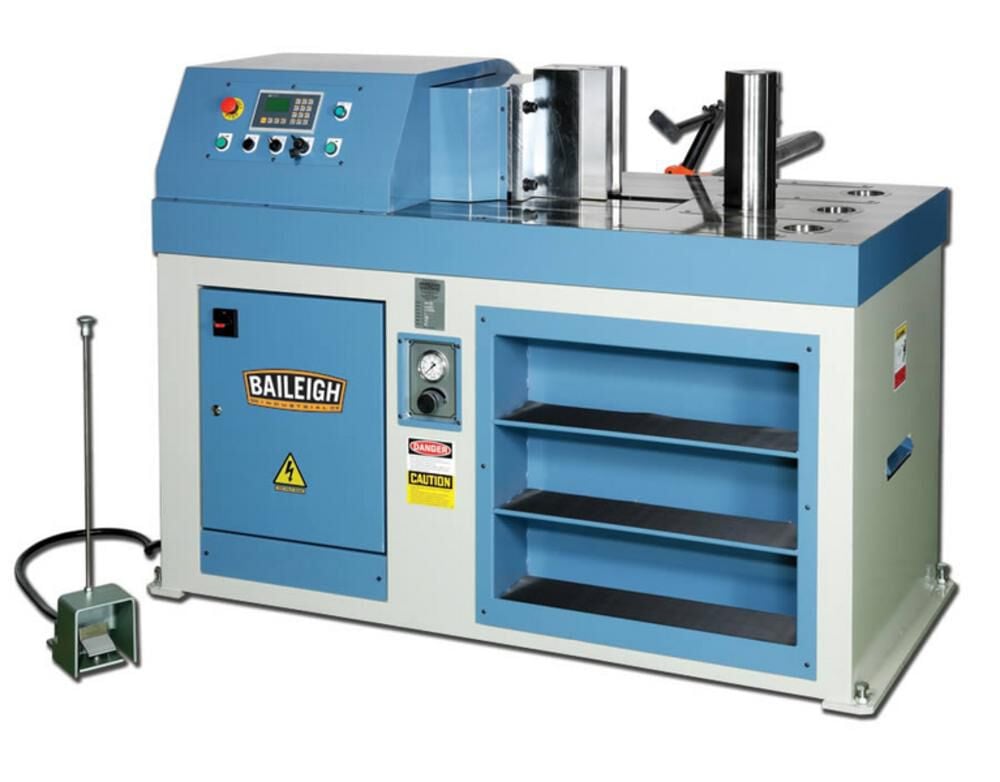

The Baileigh HPB-78NC 78 Ton Horizontal Press Brake combines high hydraulic force with precise electronic positioning for demanding fabrication work. Electronic encoders provide bending accuracy of ±0.002 inches, while the NC programmer stores up to 50 programs with 10 bends per program. Operators can control the bending stroke with two buttons or a foot pedal, adjust hydraulic pressure for the material, or use manual mode for setup and one-off projects. The 37.4-inch-high machined table keeps material level and square during bending, while the bolted manual back gauge supports repeatable positioning and efficient production runs. A quick-release tooling system makes die changes fast, and the included single-V tooling can be supplemented with attachments for punching, straightening, shearing, and pipe bending. The 4,580-pound steel frame provides a rigid foundation for industrial production.

California Proposition 65 Warning.

Features

Delivers up to 78 tons of hydraulic pressing force for bending, punching, shearing, and straightening
Uses electronic encoders to provide bending accuracy of ±0.002 inches
Controls the bending stroke with 2 buttons or a foot pedal while keeping both hands free to guide material
Stores up to 50 programs with 10 bends per program through the numerical control programmer
Allows hydraulic pressure adjustment for different materials and includes manual mode for setup and one-off projects
Features a robust manual back gauge that bolts to the machine for repeatable positioning and more efficient production runs
Uses a 37.4-inch-high machined table to keep material level and properly positioned

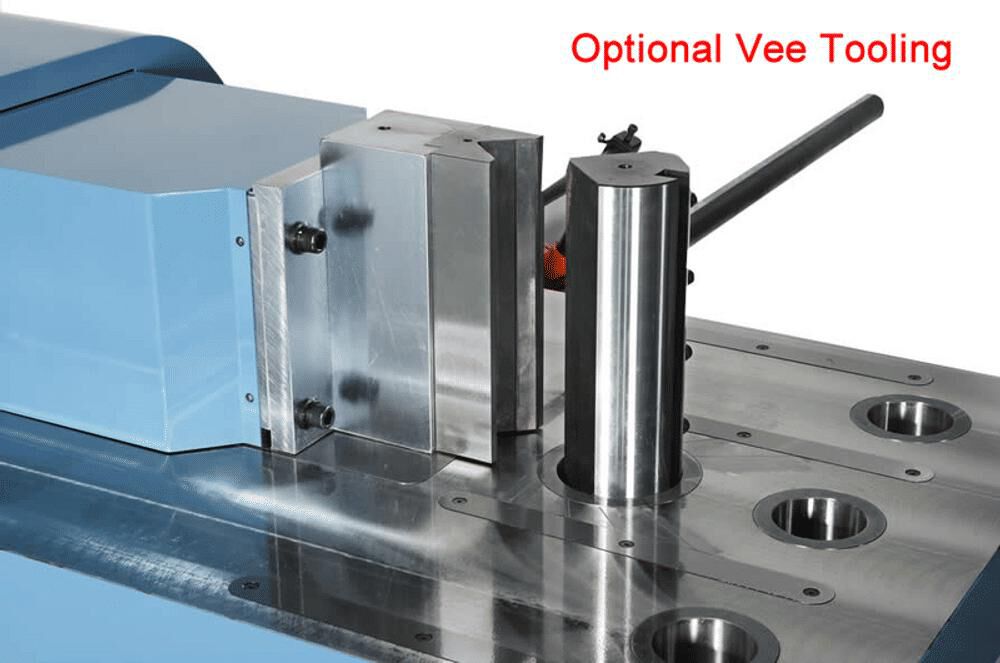

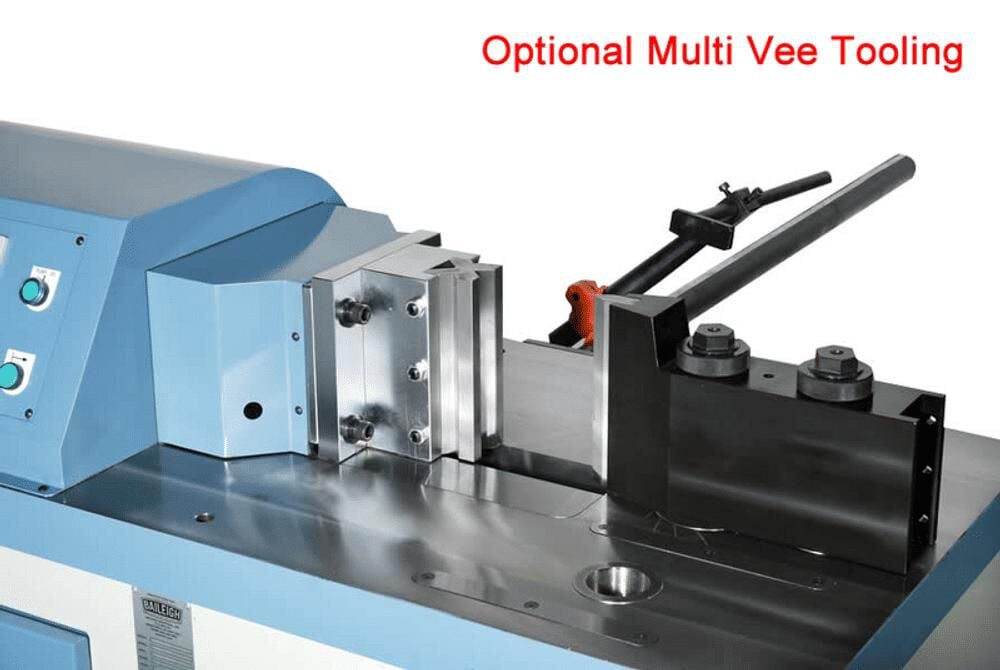

Features a quick-release tooling system that simplifies V die and V post changes

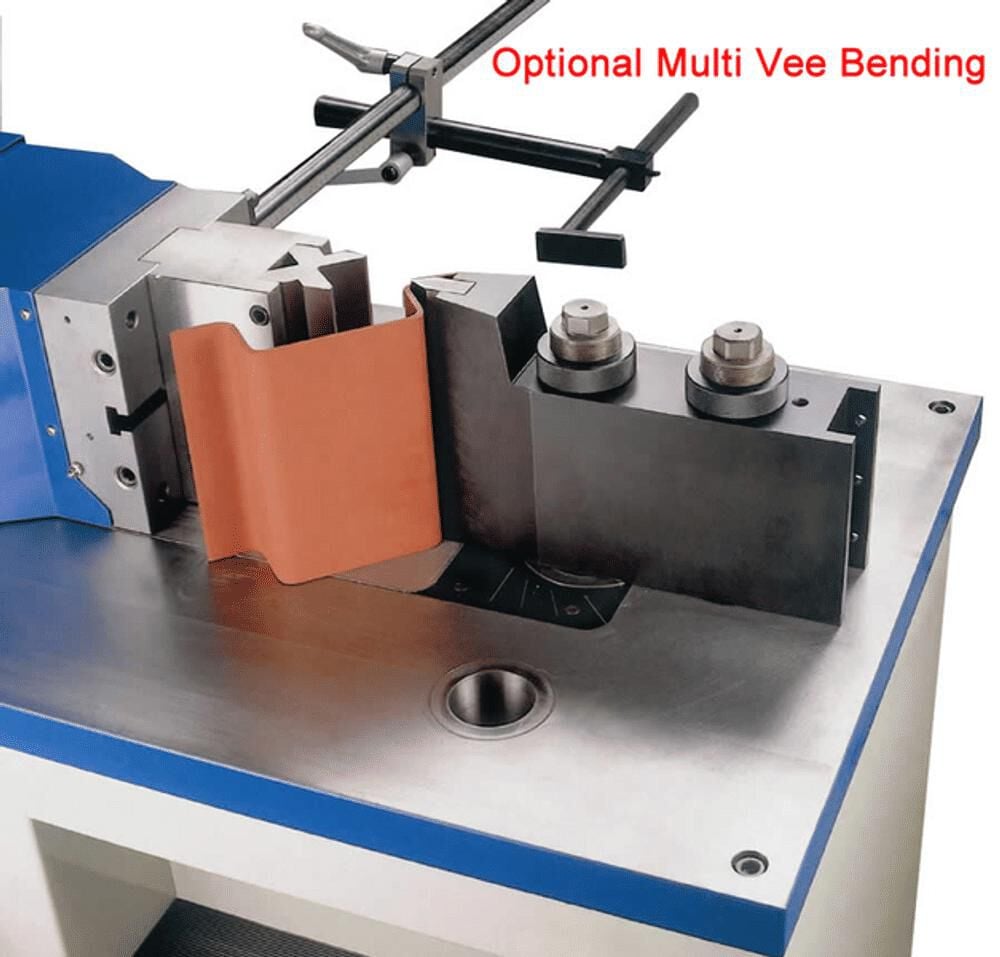

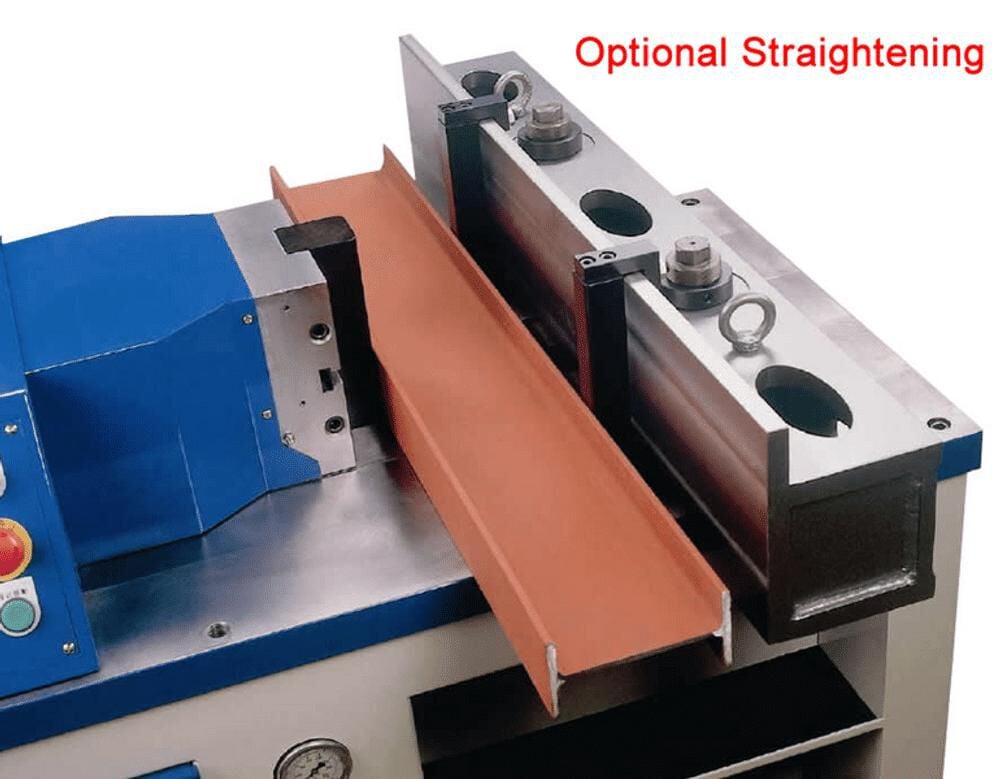

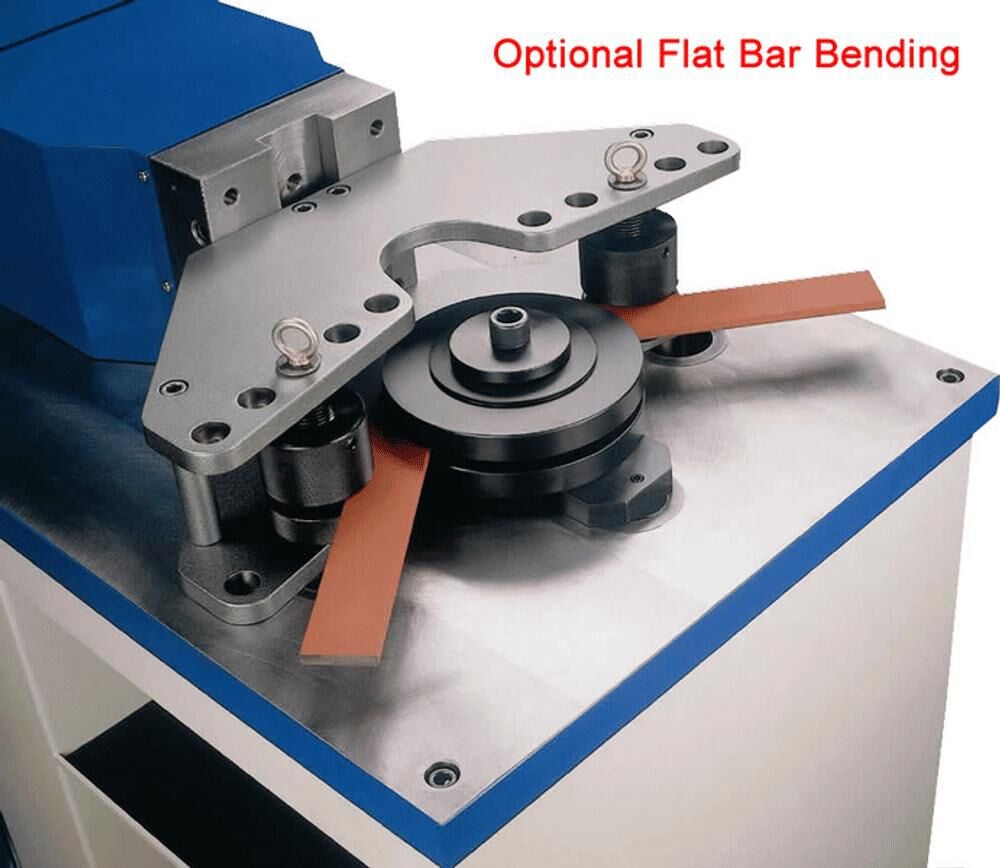

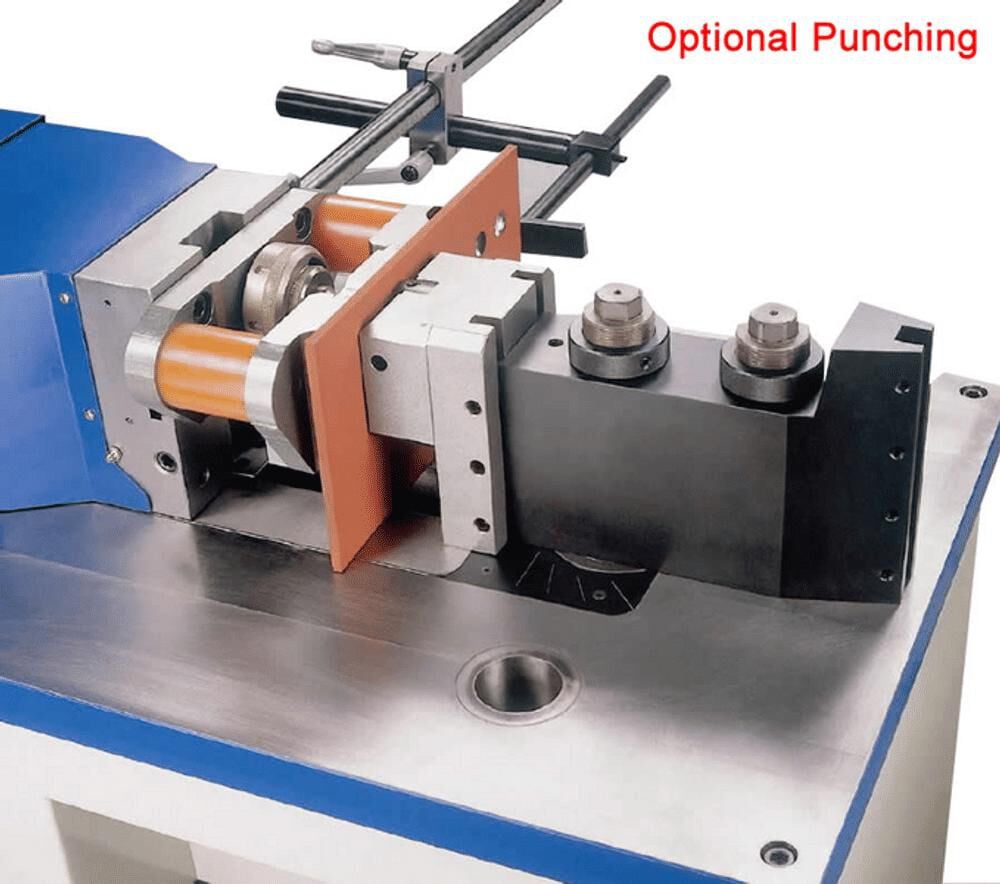

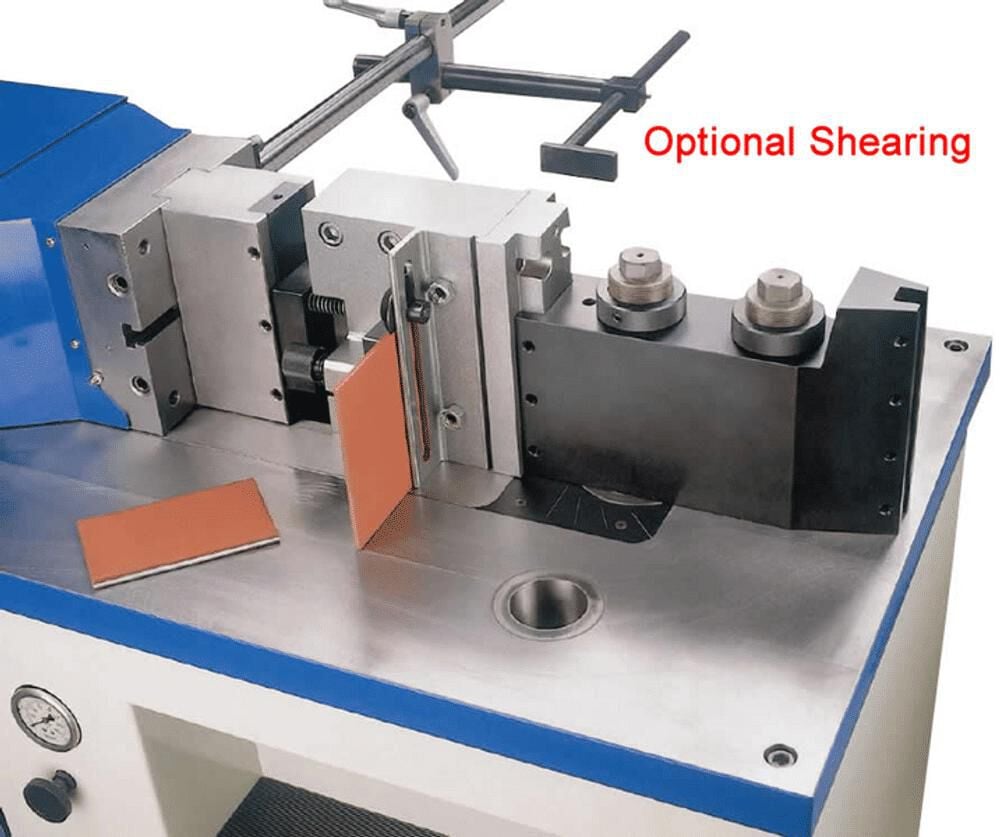

Includes single-V tooling and accepts attachments for punching, straightening, shearing, and pipe bending
Built with a 4,580-pound steel frame made from four 1-inch-thick flat bars for rigidity under pressure

Specifications

Brand Name
Baileigh
Assembled Weight (lbs)
4580
Country of Origin
Taiwan

MFG Part # (OEM)
1004720

Package Contents
(1) Horizontal Press Brake

Product Condition
New

Restrictions
CA Prop 65

UPC
731325407297

Warranty Type
1 Year Limited
