Baileigh DP-1500VS Drill Press Inverter Driven 220V 1 Phase
Baileigh

Please follow our Community Guidelines and be kind!

Description

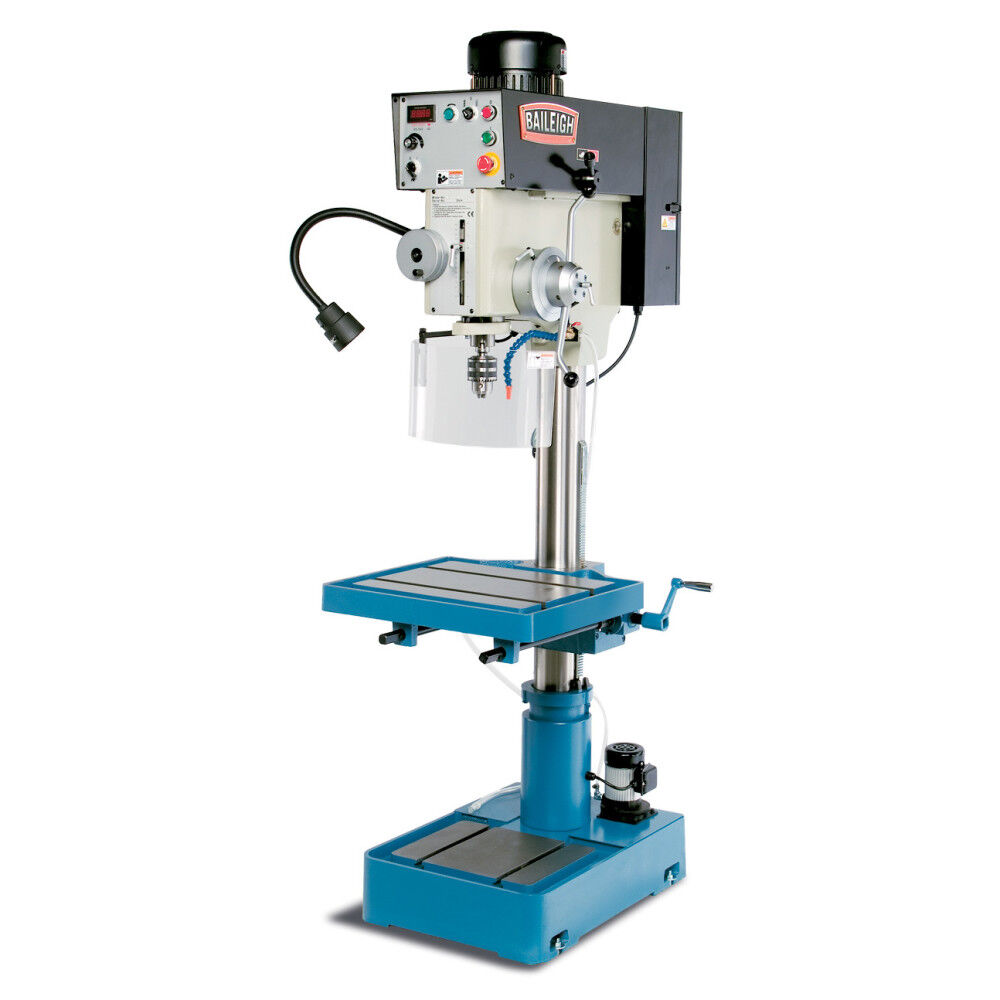

Baileigh DP-1500VS Drill Press Inverter Driven 220V 1 Phase

Drill smarter and harder with this 20 In. floor-type drill press which tackles hefty capacities at up to 2000 Rpm. Built to deliver precise results for years, the DP-1500VS comes equipped with a variety of time-saving and performance-enhancing features.

California Proposition 65 Warning.

Manuals

Use and Care Manual - PDF

Features

2HP motor runs on 220V 1 Phase power and will work practically anywhere
Handles a maximum drilling capacity of 1.5 In. steel and 1.75 In. cast iron, Auto-reversing tapping feature has a capacity of 0.937 In.
Speed range from 65-2000 Rpm lets you pick the right setting for your project
Potentiometer dial controls the drill speed, digital readout on the front displays the speed in rpm for easy checking
Sophisticated Delta® inverter drives #4 Morse taper spindle, chuck with automatic tool ejector simplifies tooling changes
Large, machined 22 In. x 18.5 In. drill table offers plenty of room for material
Oversized 0.625 In. T-slots allow for secure clamping of a vise or fixture
Sturdy 4.52 In. column eliminates flex and boosts drilling accuracy, includes a bright halogen light that bends to enable you to see the material better as you work
Cast base supports rigidity at maximum capacity, powerful coolant system, housed in the base, keeps the drill from overheating and helps the drill last longer
Power-down feed helps to prolong the machine’s lifetime of use, Safety guard around the spindle with a limit switch protects you and your shop

Specifications

Brand Name
Baileigh
Adjustable Handle Position
No
Amperage (A)
1-30
Assembled Weight (lbs)
990
Base Length (in)
27
Base Material
Iron
Base Width (in)
19
Bench or Stationary
Stationary
Country of Origin
China
Drill Press Type
Stationary
Drilling Depth (in)
1.75
Drive Motor System
Electric
Horsepower (hp)
2
Integrated Laser Guide
No
Magnetic
No

MFG Part # (OEM)
BA9-1002923

Material
Cast Iron
Package Contents
Drill Press, Cast Base, Table, Safety Guard, Bright Halogen Light,Safety Guard Around the Spindle

Product Condition
New

Restrictions
CA Prop 65
Size
22 In. x 18.5 In.
Speeds
3

UPC
731325404845

Warranty Type
1 Year
Weight (lbs)
990
Wheeled
No
