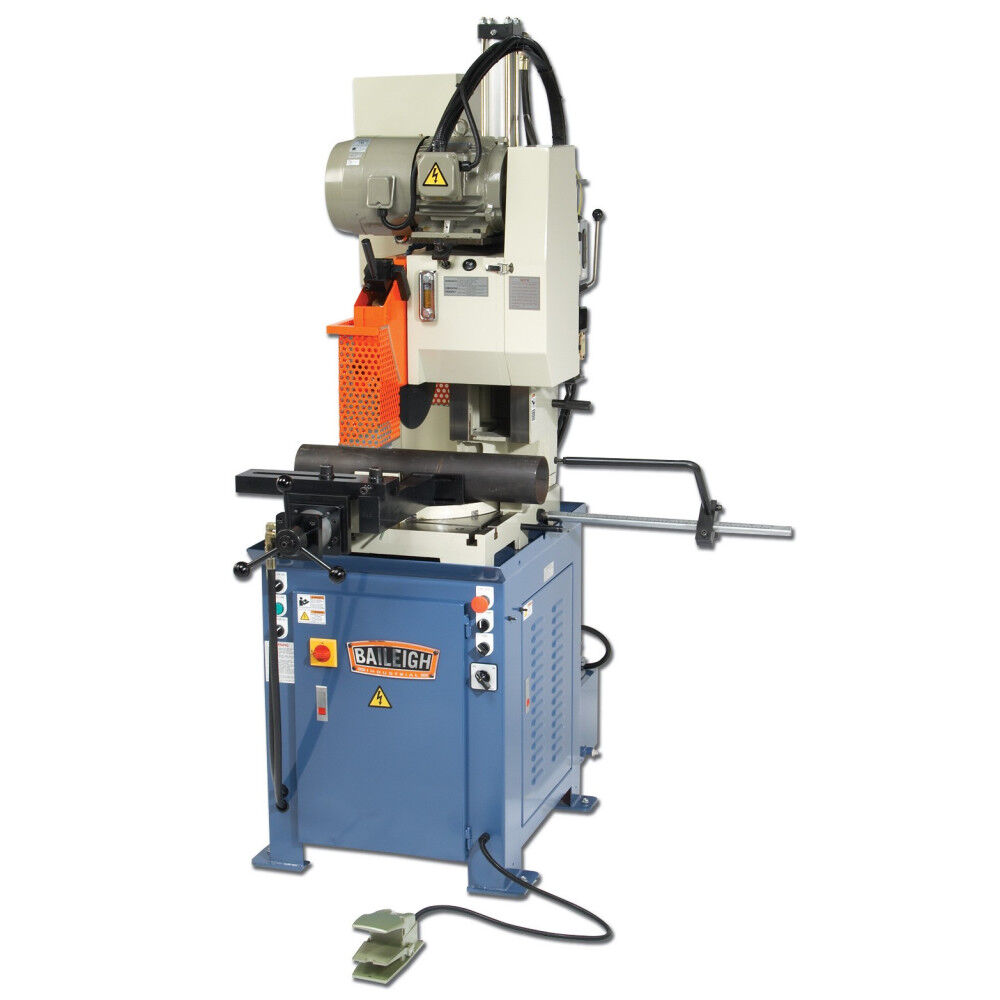

Baileigh CS-C485SA Cold Saw American Style Vise Column

Description

Baileigh CS-C485SA Cold Saw American Style Vise Column

This vertical column cold saw weighs an impressive 1898 Lbs. That steel construction lets you cut heavy materials and produce a machined-like surface that doesn't need clean-up.

Features

Accepts up to a 16.5 In. blade
Miters 45 Deg left and 60 Deg right, perfect for tubing, angle iron, and channel applications
Yaskawa® inverter drive controls the variable speed from 40-240 Rpm
5HP Blade motor runs on 220V 3 Phase power
Hardened and ground 2 In. slideways are attached to the solid column for durability and trouble-free movement
Efficient combination of drive motor, hydraulic feeding system, and coolant system will provide decades of profitable use, even in a demanding shop
Hydraulic downfeed and upfeed can efficiently tackle high production applications
You can limit the upward stroke or travel for faster cycle times and production
Semi-automatic system is simple to operate - just step on the foot pedal and the blade will descend to cut your material
Foot pedal clamps the hydraulic self-centering vise

Specifications

Brand Name
Baileigh
Amperage (A)
NA
Assembled Weight (lbs)
190
Country of Origin
Taiwan
Horsepower (hp)
5

MFG Part # (OEM)
BA9-1002634

Material
Rigid Cast Iron Base
Maximum RPM
240
Package Contents
Circular Cold Saw,Vise
Phase
3

Product Condition
New

Restrictions
CA Prop 65

UPC
019907702986

Warranty Type
1 Year
