Product Details

Baileigh BP-5060NC 60 Inch 50 Ton Hydraulic Press Brake
Baileigh

Please follow our Community Guidelines and be kind!

Description

Baileigh BP-5060NC 60 Inch 50 Ton Hydraulic Press Brake

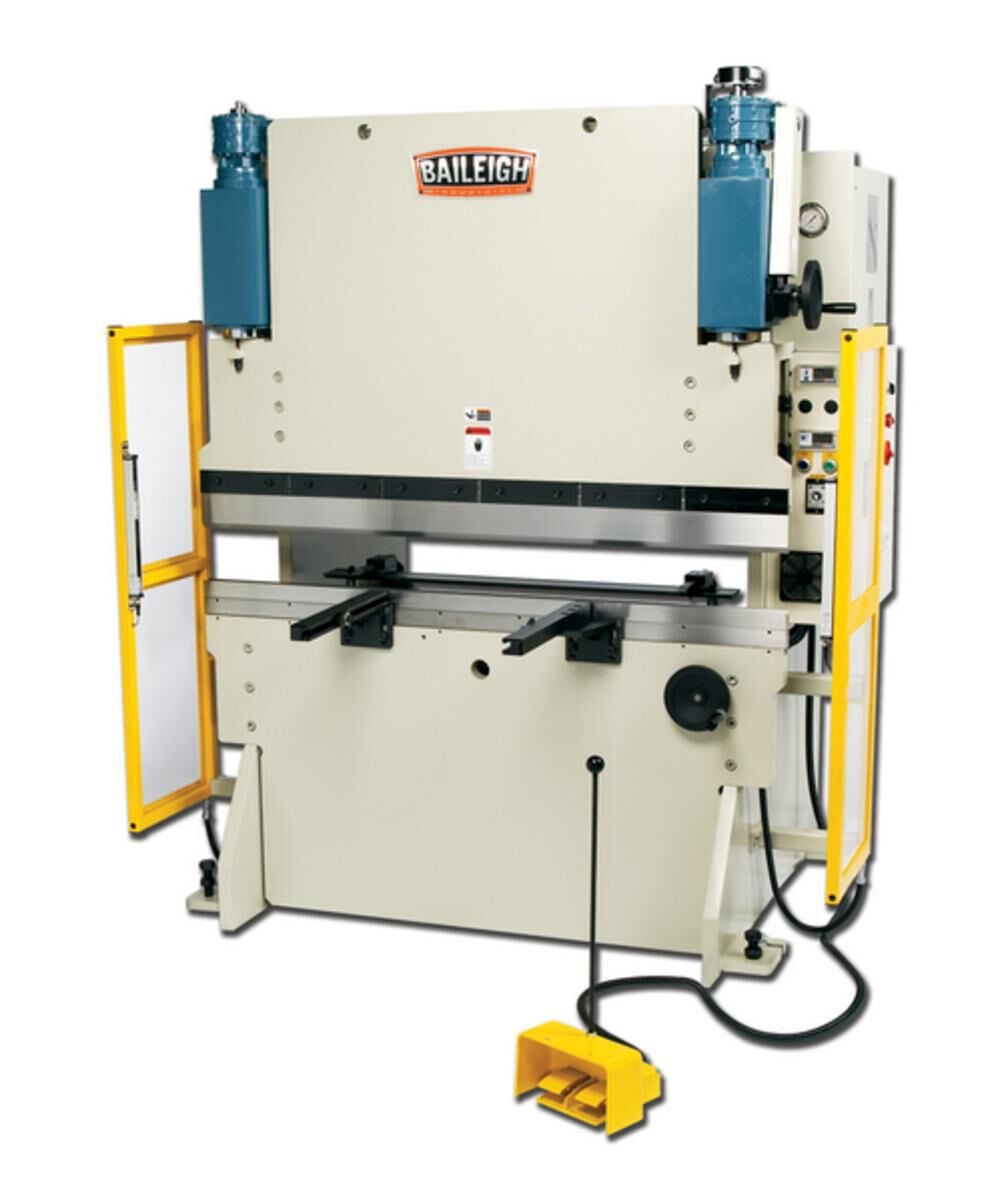

The Baileigh BP-5060NC 50 Ton 60 Inch Hydraulic Press Brake delivers powerful, controlled bending across its full 61-inch width. Three operating modes provide flexibility for setup, manual operation, and production, while two encoder-controlled hydraulic cylinders move the top beam and digital readouts display stroke and back gauge positions. A motorized back gauge with a solid ball screw trolley mechanism helps provide consistent positioning, while the parallel beam mechanism synchronizes the dies for better-quality bends across the machine's width. The heavy electro-welded steel frame and 6,000-pound construction provide a rigid foundation for production use. Hardened single-Vee American tooling, front material rests, and a 6-light safety curtain are included. The press brake also features a 1-year parts warranty and lifetime phone technical support.

California Proposition 65 Warning.

Features

Produces up to 50 tons of hydraulic pressing force for demanding sheet metal bending
Provides a 60-inch working width for forming sheet metal across a broad work area
Runs in jog, manual, and automatic modes for setup, controlled operation, and production
Uses 2 encoder-controlled hydraulic cylinders to move the top beam
Displays downward stroke position on a digital readout for precise bend-depth adjustment
Allows quick changes to top beam pressure and stroke position for different travel requirements
Uses a timer for bend delay to hold the beam at the bottom of the stroke and help maintain the bend shape
Features a motorized back gauge with a solid ball screw trolley mechanism and dedicated encoder DRO
Uses a parallel beam mechanism to synchronize the top and bottom die for consistent bends across the full width
Heavy electro-welded steel frame and 6,000-pound construction provide rigidity for production bending

Specifications

Brand Name
Baileigh
Assembled Weight (lbs)
6160
Country of Origin
Taiwan

MFG Part # (OEM)
1000824

Package Contents
(1) Hydraulic Press Brake

Product Condition
New

Restrictions
CA Prop 65

UPC
731325394504

Warranty Type
1 Year Limited
