Baileigh BP-3350NC 50 Inch 33 Ton Hydraulic Press Brake
Baileigh

Please follow our Community Guidelines and be kind!

Description

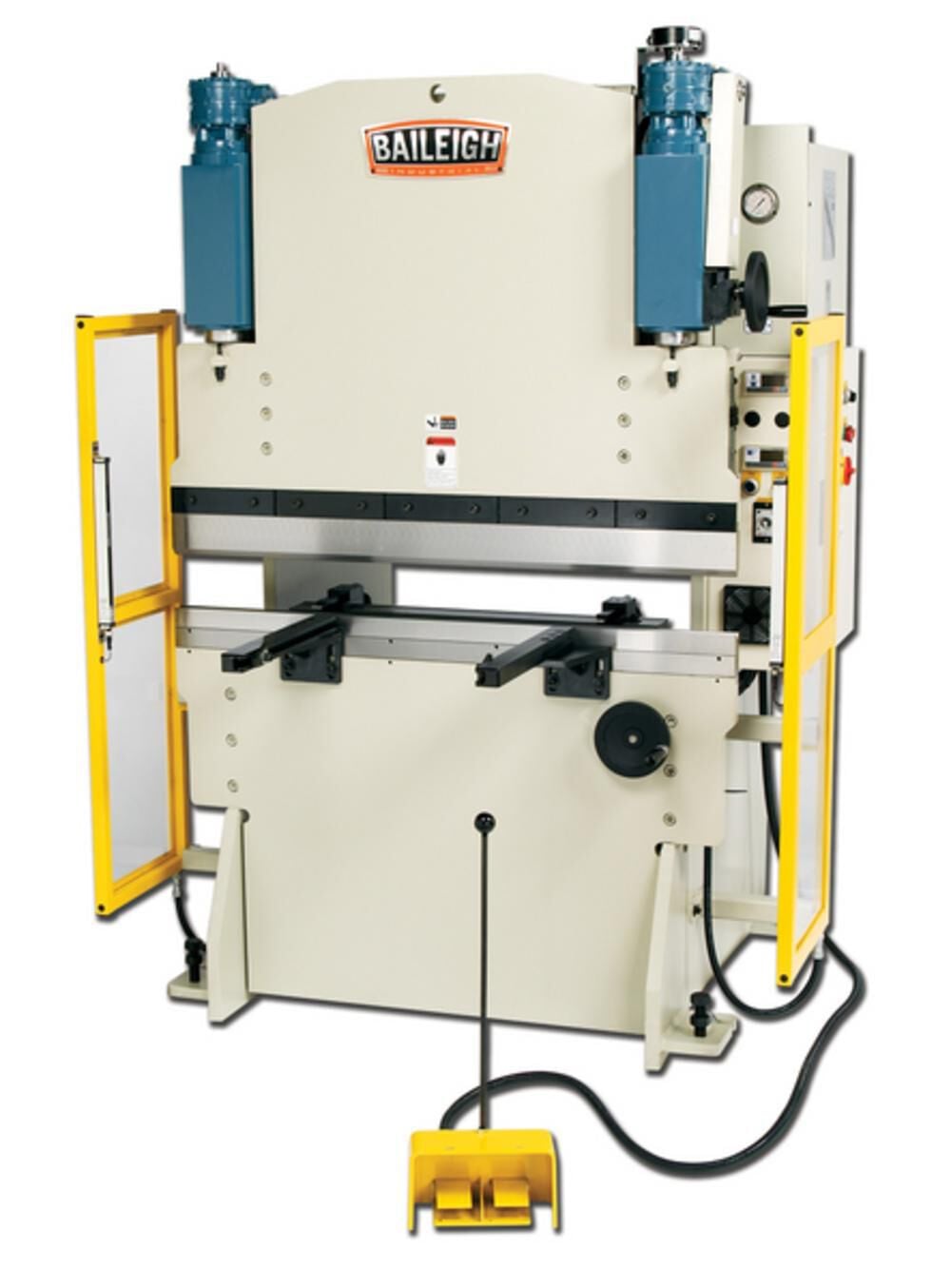

Baileigh BP-3350NC 50 Inch 33 Ton Hydraulic Press Brake

The Baileigh BP-3350NC 33-Ton Hydraulic Press Brake combines hydraulic power, digital positioning, and a rigid steel frame for precise sheet metal bending. It produces up to 33 tons of pressure and bends material up to 50 inches wide, with a maximum capacity of 0.098-inch-thick sheet metal across the machine's full width. Three operating modes provide flexibility for setup and production, while encoder-controlled hydraulic cylinders and separate DROs display the bend depth and back gauge positions. A motorized back gauge, foot pedal control, parallel beam mechanism, and included hardened single-Vee American tooling support consistent bends across the machine's width. The heavy electro-welded frame and 2,640-pound construction are designed for small industrial shops, maintenance and R&D shops, and applications requiring a compact 50-inch press brake.

California Proposition 65 Warning.

Features

Produces up to 33 tons of hydraulic pressing force for demanding sheet metal bending
Bends sheet metal up to 50 inches wide for a variety of fabrication applications
Handles sheet metal up to 0.098 inches thick across the machine's full width
Requires 220-volt, 3-phase power for operation
Runs in jog, manual, and automatic modes for setup, controlled operation, and production work
Uses two encoder-controlled hydraulic cylinders to move the upper beam with precision
Separate digital readouts display bend depth and motorized back gauge position for repeatable setup
Motorized back gauge uses a solid ball screw trolley mechanism for consistent positioning
Foot pedal controls the stroke while leaving both hands free to position material
Heavy electro-welded steel frame and 2,640-pound construction provide rigidity for full-capacity bending

Specifications

Brand Name
Baileigh
Assembled Weight (lbs)
2640
Country of Origin
Taiwan

MFG Part # (OEM)
1000801

Package Contents
(1) Hydraulic Press Brake

Product Condition
New

Restrictions
CA Prop 65

UPC
731325394429

Warranty Type
1 Year Limited
