Powermatic DT45 Dovetail Machine with Manual Clamp 1HP 1Ph 230V

Item No. SKU# 1791304
4.9 out of 5 Customer Rating
  • In Stock (Ships in 3-5 business days)
$5,899.99
Delivery to -
43215
- Est. Arrival Fri May 3 - Sat May 4 Edit location
  No Air Shipments
  Free Freight  Shipping  (Truck freight shipping to lower 48)
Acme Tools Guarantee

Lift Gate Service (freight lowered to ground)
Powermatic DT45 Dovetail Machine with Manual Clamp 1HP 1Ph 230V
$5,899.99
Qty
Secure Checkout

Description

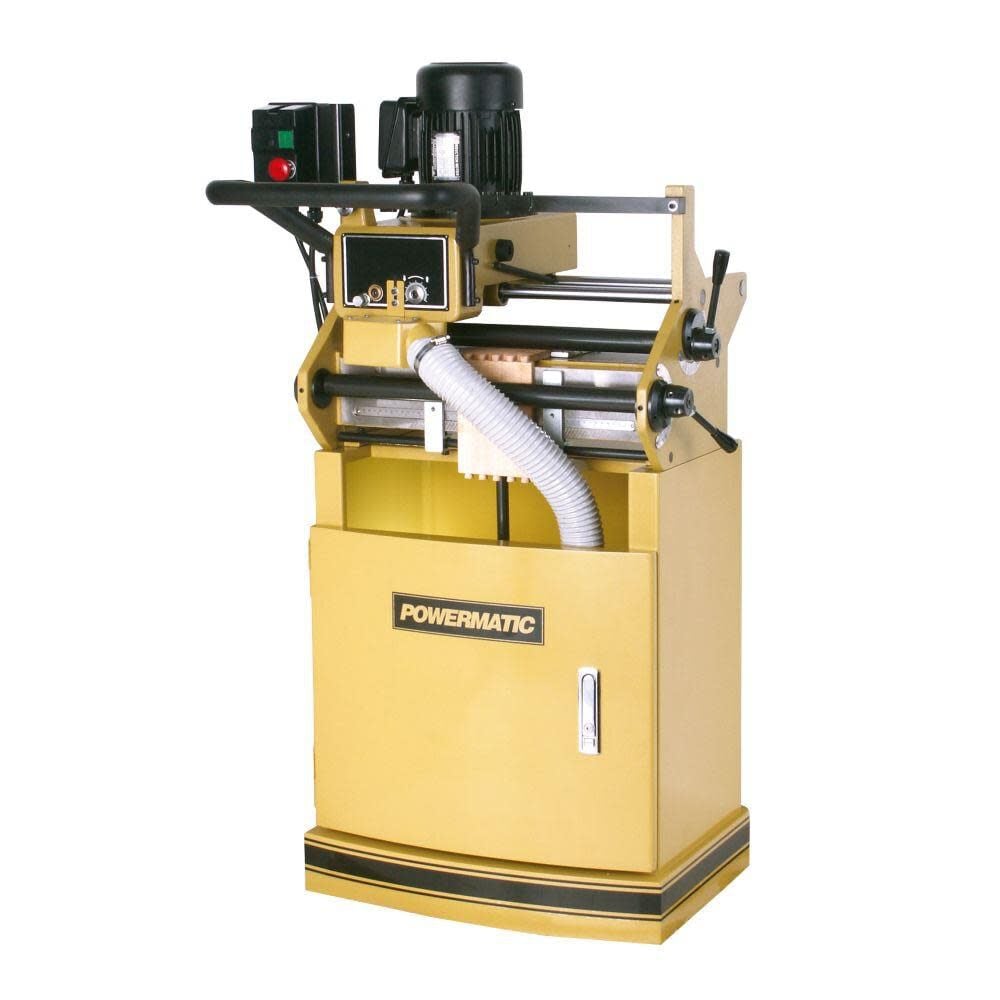

Powermatic DT45 Dovetail Machine with Manual Clamp 1HP 1Ph 230V

The Powermatic® DT45 manual dovetail machine is used to cut dovetails for drawers and various furniture components. The machine is equipped with a router spindle which allows cutting dovetails of adjustable height. The DT45 can machine four types of dovetails with different pitches. Locking and unlocking of pieces takes place manually by an eccentric clamp.

Features

Four centerlines - 1 In., 1-1/2 In., 2 In. and 2-1/2 In. - create a custom appearance
Manual eccentric clamping will keep boards firm
Eccentric spindle collet for resharpened cutters
Spring loaded carriage makes for smooth, effortless dovetail cutting
Cutter height of 3/16 In. to 3/4 In. accommodates different cutting depths and board thicknesses
Extra large soft grip handle provides positive control and comfort
The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
Visual stylus and template aid in guiding the carriage

Specifications

Brand Name
Powermatic
Amperage (A)
16
Assembled Weight (lbs)
380
Blade Length (in)
0
Blade Material
N/A
Blade Type
N/A
California Proposition 65 Warning Required
Yes
Capacity
9" Thick Material
Color
Gold
Country of Origin
Taiwan
CSA Certified
No
Dust Collection
Yes
Electronic Speed Control
No
ETL Listed
No
Horsepower (hp)
Universal Motor
MFG Part # (OEM)
1791304
Material
Cast Iron and Steel
Overall Height (in)
61
Overall Length (in)
33
Overall Weight (lbs)
380
Overall Width (in)
33
Package Contents
DT45 Dovetail Machine with Manual Clamp 1HP 1Ph 230V
Package Depth
33
Package Height
61
Package Weight
380
Package Weight (lbs)
380
Product Condition
New
RPM
18500
Table Height (in)
35
UL Listed
No
UPC
662755505065
Voltage
115/230 Volts
