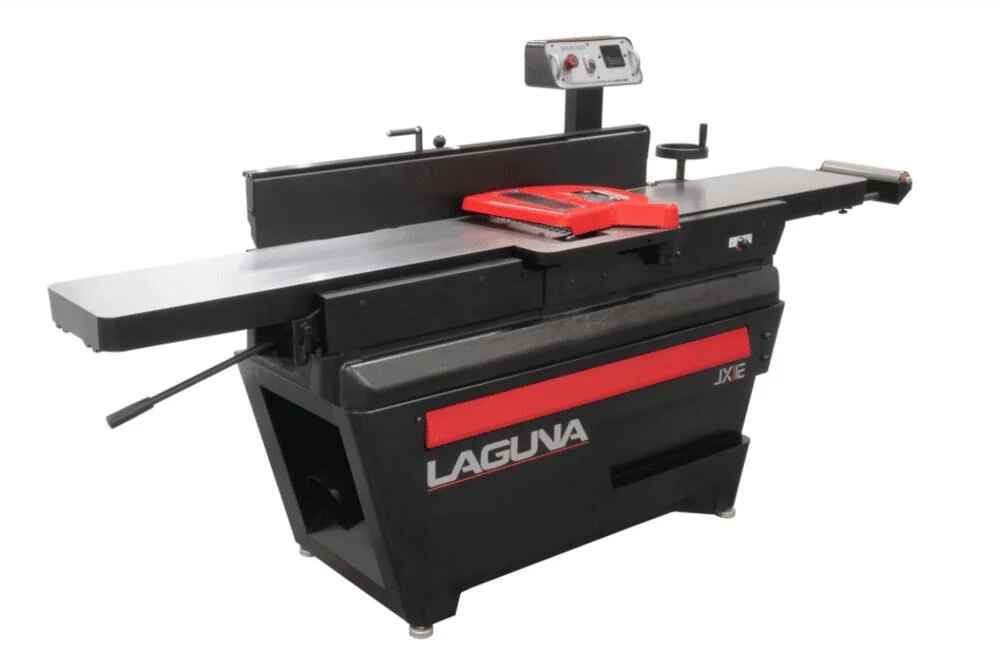

Laguna Tools JX|8 SHEARTEC: II Jointer 3HP 220V 1PH

Item No. SKU# MJ8X72P-0130
3.7 out of 5 Customer Rating
Laguna Tools JX|8 SHEARTEC: II Jointer 3HP 220V 1PH, large image number 0
Laguna Tools JX|8 SHEARTEC: II Jointer 3HP 220V 1PH, large image number 1
Laguna Tools JX|8 SHEARTEC: II Jointer 3HP 220V 1PH, small
Laguna Tools JX|8 SHEARTEC: II Jointer 3HP 220V 1PH, small
  • Pre-Order (Est. Ship date: May 15, 2024)
$3,199.00
Delivery to -
43215
- Est. Ship May 15, 2024 Edit location
  Free Freight  Shipping  (Truck freight shipping to lower 48)
Item requires special handling, additional charges may apply
Acme Tools Guarantee

Lift Gate Service (freight lowered to ground)
Laguna Tools JX|8 SHEARTEC: II Jointer 3HP 220V 1PH
$3,199.00
Qty
Secure Checkout

Description

Laguna Tools JX|8 SHEARTEC: II Jointer 3HP 220V 1PH

The Laguna JX|8 ShearTec II is loaded with highly desirable features to make jointing safer and more enjoyable. The ShearTec has adjustable table lengths and in-feed support rollers for pull-out support for longer materials. It also has an emergency knee-stop bar to allow the operator to safely and quickly shut down the machine without having to move his hands. Along with that is a redesigned "toe-kick" to allow the operator to position themselves closer to the machine table to move safer and easier along the length of the machine. The JX also has a built-in outlet for optional led work lights.

California Proposition 65 Warning.

Features

In-feed Support Roller - Infeed tables are now fitted with pull-out support roller to help support longer materials.
Emergency “Knee-Stop” - The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece.
New Ergonomic Machine Body - The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine
Parallelogram Table Adjustments - Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
Cast-Iron Tables and Fence

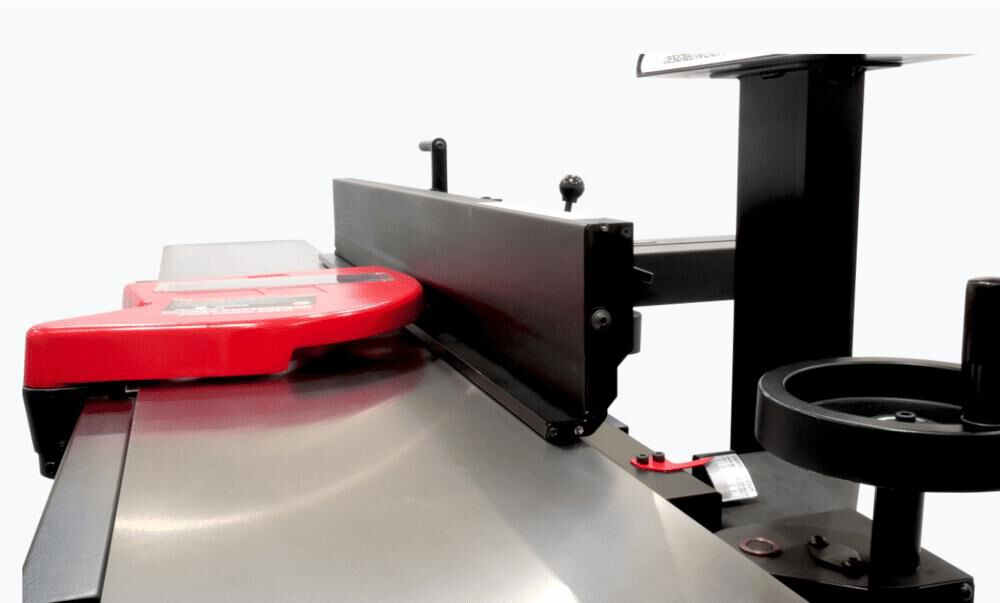

The ShearTec II is a 6-row carbide insert cutterhead that produces a superior surface finish on all woods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force, preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results. The ShearTec has deep grooves that make it very quiet and improve shaving ejection. The 4-sided knives can be rotated for a new cutting edge without need for a knife setting jig.

Specifications

Brand Name
Laguna Tools
Amperage (A)
12
Assembled Depth (in)
75.5
Assembled Weight (lbs)
380
Assembled Width (in)
26.5
Blade Width (in)
8
California Proposition 65 Warning Required
Yes
Country of Origin
Taiwan
Height (in)
31
Horsepower (hp)
3
MFG Part # (OEM)
MJ8X72P-0130
Package Contents
1 JX|8 SHEARTEC: II Jointer
Package Depth
76
Package Height
41
Package Weight
496
Phase
1
Product Condition
New
Table Length (in)
72
UL Listed
No
UPC
195444073977
Voltage
220
