Description

Laguna Tools 14|CX Metal & Wood Bandsaw

The brand-new 14|CX adds electronic variable speed to the popular 14|BX. This makes it the ideal saw for craftsmen who work in both wood and metal. Patented disc brake stops the momentum almost instantaneously. Strong, smooth running BLDC motor makes the 14|CX stand out. Comes standard with a Laguna Bi-Metal ½” x 10/14 Variable TPI Blade.

California Proposition 65 Warning.

Features

DRO - The digital readout provides a quick and easy reference for blade speeds. The DRO displays in "SFPM" (surface feet per minute). This is the speed that the teeth of the blade are moving. This number can be set by using a blade speed chart for the specific blade and material being used to achieve high quality cuts in a wide range of materials.
2 Speed Pulley - The 2-step pulley provides a mechanical High and Low range to keep the bandsaw in the correct torque range for the blade speed and materials being cut. The belt position should be set first and then the final speed should be set by turning the speed control knob. The pulleys use a poly-groove drive belt to prevent slipping even when cutting the toughest materials.

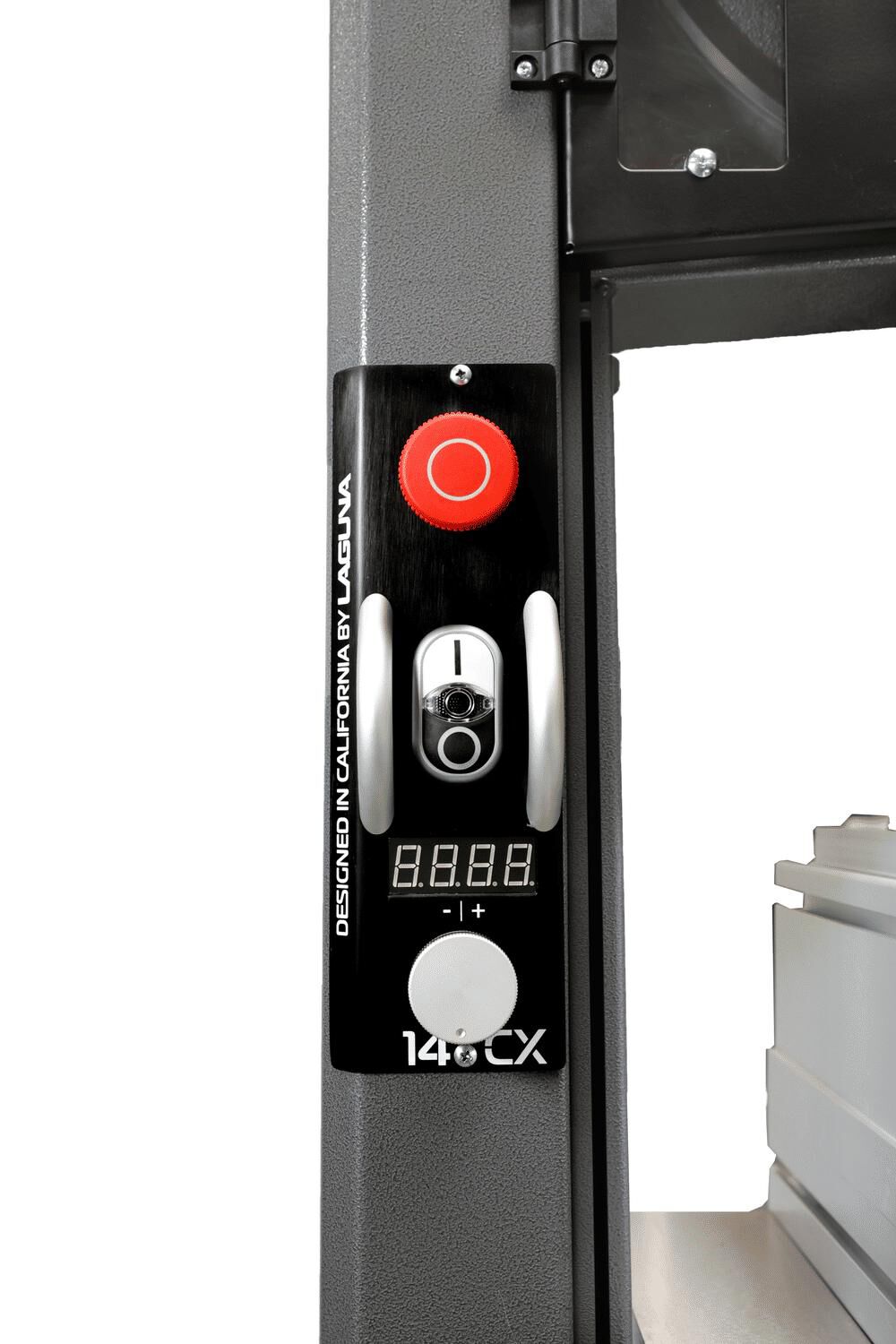

Speed Control Knob - The speed control knob can be used to change the speed on the fly if needed, meaning that you can increase or decrease speed during the cut to optimize the performance of the blade in the specific material being cut. It is conveniently located on the control panel adjacent to the DRO display.
PWM - Electronic speed control is provided by the PWM system (pulse width modulation) which uses an inverter to control the output to the powerful DC motor. This system has the added benefit of quickly stopping the motor and wheels when shut off.
Specs: Motor: HP 1-3/4 HP. Input Power: 110-120 Volt AC. Recommended Breaker: 20 Amp. Motor Input (inverter): 166 VDC. Throat: 13-5/8" (346mm). Table - Cast Iron: 16" x 21-1/2" (406.4 x 546mm). Table Tilt: - 7 degrees + 45 degrees. Miter Slot: 3/8" x 3/4" (9.525 x 19.05mm). Table Height: 38" (965mm). Blade Speed - High Range: 160 – 4400 FT/MIN. Blade Speed - Low Range: 60 – 1600 FT/MIN. Flywheels: Cast Iron. Resaw Capacity: 13" (330.2mm). Blade Length: 115" (114-3/4" Min - 116" Max). Maximum Blade Width: 3/4" (19 mm). Minimum blade width: 1/8" (3 mm)*. Guides: Laguna Ceramic. Height: 70-1/2" (1,790mm). Machine Dimensions (L x W): 29-3/4" x 28" (755 x 712mm). Base Footprint: 22-11/16" x 17-9/16" (576 x 446mm). Dimensions w/ Mobility Kit (W x D): 36-5/8" x 28" (930 x 712mm). Base footprint w/ Mobility Kit: 33" x 20-1/2" (838 x 521mm). Weight: 258 lbs (117 kg). Shipping Weight: 280 lbs (127 kg). Package size (L x W x H): 73-1/8" x 26-1/2" x 24-5/16". Mobility Kit: Optional. Industrial Work Light: Optional. *With optional Mini Guides for blades under 1/4.

Specifications

Brand Name
Laguna Tools
Assembled Weight (lbs)
258
Country of Origin
Taiwan
MFG Part # (OEM)
MB14CX
Package Contents
14|CX Metal & Wood Bandsaw. Laguna Bi-Metal 1/2” x 10/14 Variable TPI Blade. Manual.
Package Depth
55
Package Height
25
Package Weight
280
Product Condition
New
UPC
195444295294
