Innovative Jet - Precision Air Strut System (PASS™) provides consistent upward pressure on the cutter head, reducing the chance of board snipe

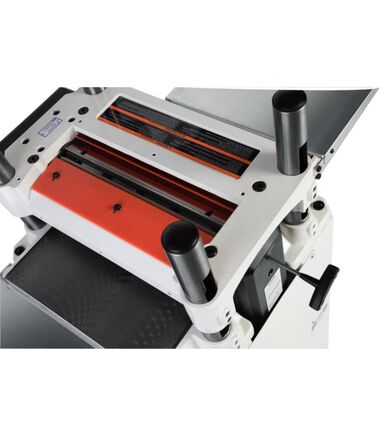

Straight cutter head has three high-speed steel knives that lock firmly in place to prevent movement while in use
Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer
Powerful 3-HP motor with v-belt transmission reduces vibration and running noise
Dual Infeed speed control for 16RPM's or 20RPM's, maximizes cut efficiency
Maximum depth of cut 1/8-in, 6-in cutting height and 15-in width capacity

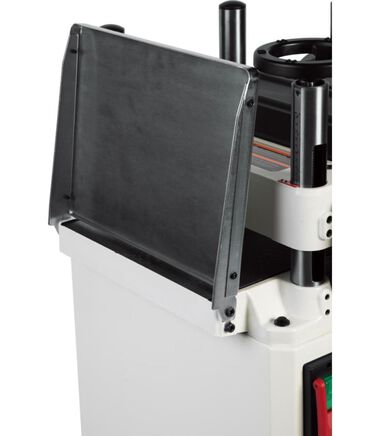

Heavy-duty folding Infeed/outfeed tables provide support for work pieces and fold for convenience

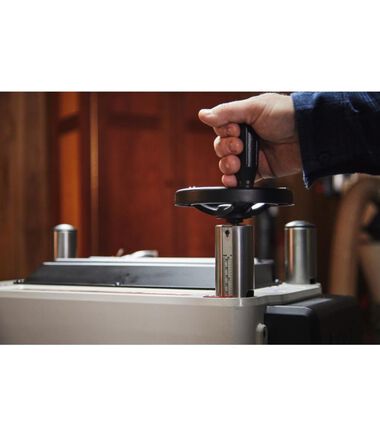

Large hand wheel with positive gear drive easily moves the head to the desired board thickness

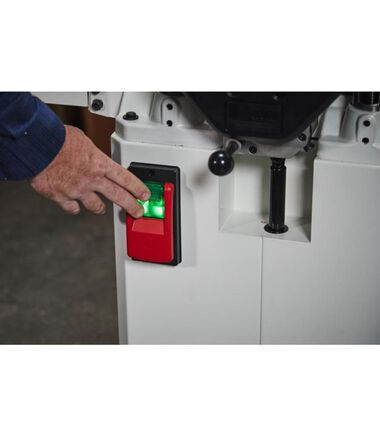

Magnetic switch with green safety light illuminates when powered

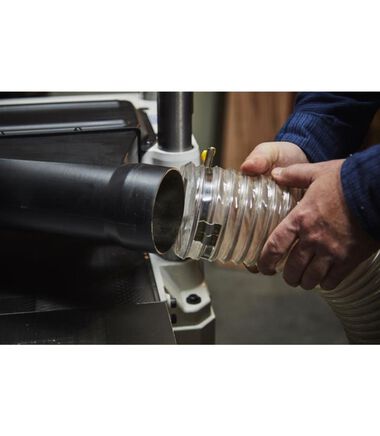

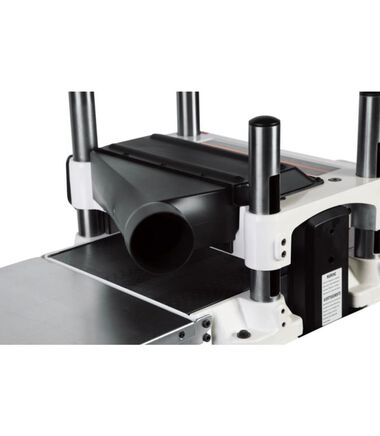

4 In. dust port hooks up to dust management system and helps keep shop clean
Brand Name
JET
Amperage (A)
15
Assembled Weight (lbs)
115.8
Bench or Stationary
Stationary
Blade Count
3
Blade Type
Straight Edge
California Proposition 65 Warning Required
Yes
Color
White
Country of Origin
Taiwan
CSA Certified
Yes
ETL Listed
No
Height (in)
48
Horsepower (hp)
3
MFG Part # (OEM)
722150
Maximum Cutting Depth (in)
0.188
Maximum RPM
5200
Maximum Width Cutting Capacity (in)
15
Overall Weight (lbs)
115.8
Package Contents

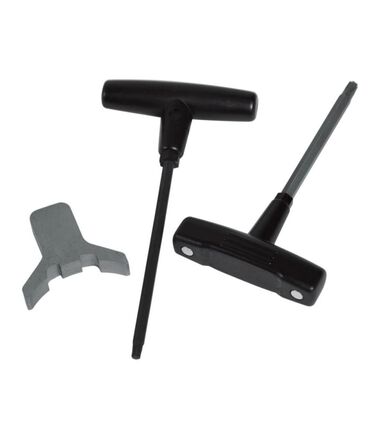

1 Planer, 1 Handwheel assembly, 1 Dust port, 1 Torx point screwdriver T30 (with magnets), 1 Operating Instructions and Parts Manual, 1 Product registration card, 2 Steel extension tables, 1 Hex wrench 6mm, 1 Knife gauge
1 Hardware package
Package Depth
29.92
Package Height
44.88
Package Weight
313.5
Package Weight (lbs)
313.5
Product Condition
New
Reversible
No
Switch Type
Magnetic with LED illumination, 14 A overload protector
UL Listed
Yes
UPC
731325762358
Variable Speed
No
Voltage
230 Volts
