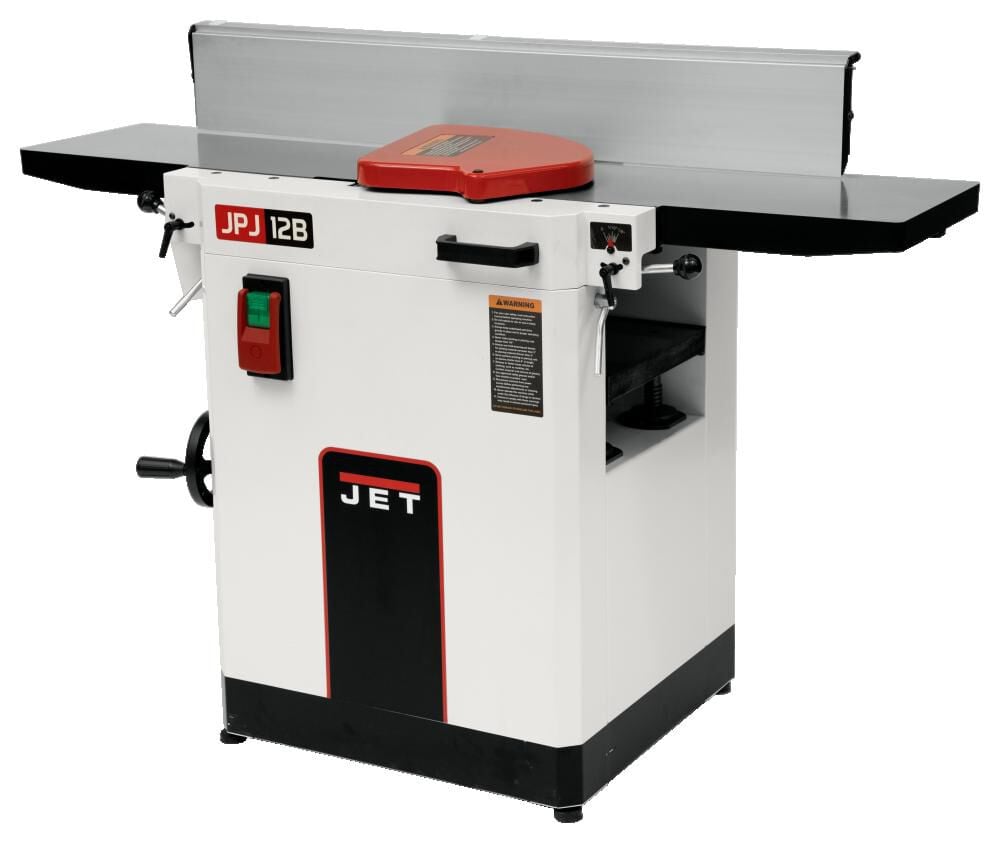

JET JPJ-12BHH Planer Jointer Combo 12in Helical Head 3HP

Item No. SKU# 715155
5 out of 5 Customer Rating
JET JPJ-12BHH Planer Jointer Combo 12in Helical Head 3HP, large image number 0
JET JPJ-12BHH Planer Jointer Combo 12in Helical Head 3HP, large image number 1
JET JPJ-12BHH Planer Jointer Combo 12in Helical Head 3HP, large image number 2
JET JPJ-12BHH Planer Jointer Combo 12in Helical Head 3HP, large image number 3
JET JPJ-12BHH Planer Jointer Combo 12in Helical Head 3HP, large image number 4
JET JPJ-12BHH Planer Jointer Combo 12in Helical Head 3HP, large image number 5
JET JPJ-12BHH Planer Jointer Combo 12in Helical Head 3HP, small
JET JPJ-12BHH Planer Jointer Combo 12in Helical Head 3HP, small
JET JPJ-12BHH Planer Jointer Combo 12in Helical Head 3HP, small
JET JPJ-12BHH Planer Jointer Combo 12in Helical Head 3HP, small
JET JPJ-12BHH Planer Jointer Combo 12in Helical Head 3HP, small
JET JPJ-12BHH Planer Jointer Combo 12in Helical Head 3HP, small
  • In Stock (Ships in 3-5 business days)
$5,599.99
Delivery to -
43215
- Est. Arrival Sat May 4 - Sun May 5 Edit location
  No Air Shipments
  Free Freight  Shipping  (Truck freight shipping to lower 48)
Acme Tools Guarantee

Lift Gate Service (freight lowered to ground)
JET JPJ-12BHH Planer Jointer Combo 12in Helical Head 3HP
$5,599.99
Qty
Secure Checkout

Description

JET JPJ-12BHH Planer Jointer Combo 12in Helical Head 3HP

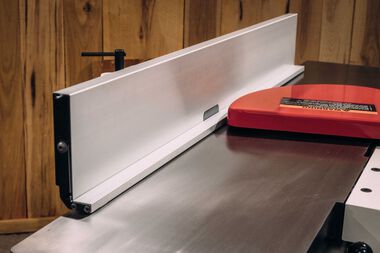

You don’t have to choose between buying a jointer or a planer – with the Helical Head JPJ-12BHH, you can have both. Leave it to JET to design a machine that allows quick changeover between jointing and planing functions. This versatile machine features an extra-large aluminum extruded fence with centered controls for quick adjustments, a built-in dust chute capable of handling both planing and jointing operations, and a powerful 3-horsepower motor that can handle the toughest lumber. A heavy-duty, fully welded steel base cabinet houses the motor and the planer table mechanism, while providing solid mounting for the associated controls and support for the jointer table and fence assemblies. Best of all, the fence can stay put when changing over functions.

California Proposition 65 Warning.

Features

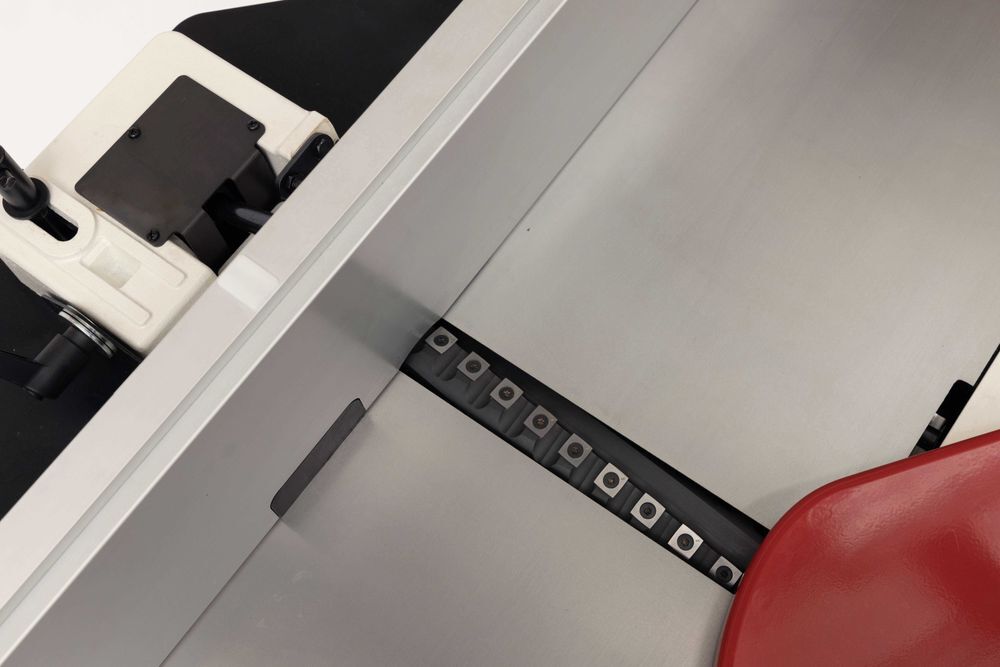

Forty Two 4-sided Carbide Insert cutterhead provides rapid cutting and a superior finish

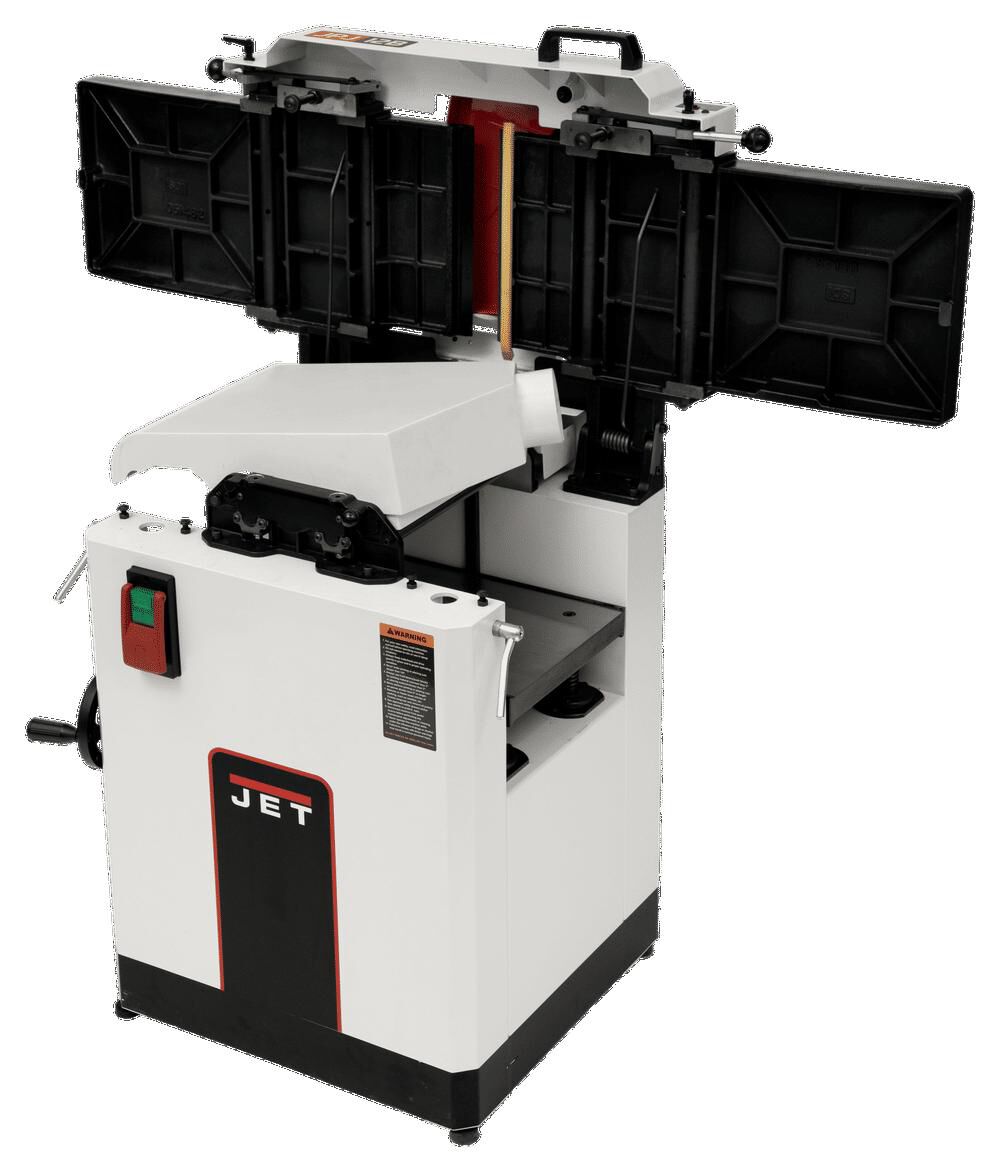

Extremely quick changeover between jointing and planing functions. Fence does not need to be removed
Heavy-duty cast iron tables with a ground finish to ensure accuracy and flatness
Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability

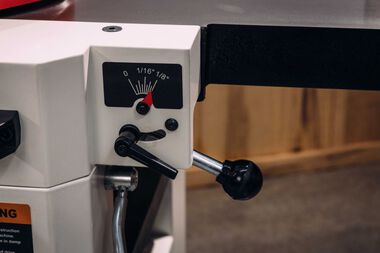

Large handwheel for quick and precise adjustments of planer table
Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments

Specifications

Brand Name
JET
Amperage (A)
15
Assembled Depth (in)
55-7/16
Assembled Weight (lbs)
453
Assembled Width (in)
28-15/16
Bench or Stationary
Stationary
Blade Count
42
Blade Cutting Material
Carbide
Blade Material
Carbide
Blade Type
4 Sided Carbide Inserts
Blade Width (in)
12
California Proposition 65 Warning Required
Yes
Country of Origin
Taiwan
Drive Motor System
Electric
Dust Port
Yes
Dust Port Outside Diameter (in)
4
Height (in)
40
Horsepower (hp)
3
MFG Part # (OEM)
715155
Material Cut
Wood
Maximum RPM
5300
Maximum Speed (rpm)
5300
Maximum Width Cutting Capacity (in)
12
Package Contents
Planer Jointer Combo, 42 4 sided carbide insert cutters
Package Depth
60
Package Height
46
Package Weight
493
Phase
1
Product Condition
New
Reversible
Yes
Sharpenable
Yes

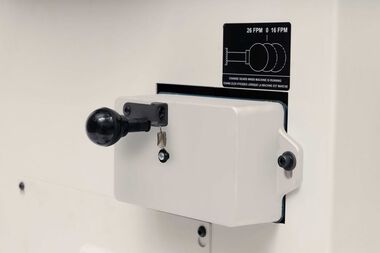

Speeds
16 & 26 FPM
Stand Included
Yes
Table Length (in)
55
Table Width (in)
12
UL Listed
Pending
UPC
731325772814
Variable Speed
No
Voltage
230
Weight (lbs)
453
