Ingersoll Rand 5 HP 80 gal 230 V 1 Ph Vertical Air Compressor

Item No. SKU# 45464989
3.3 out of 5 Customer Rating

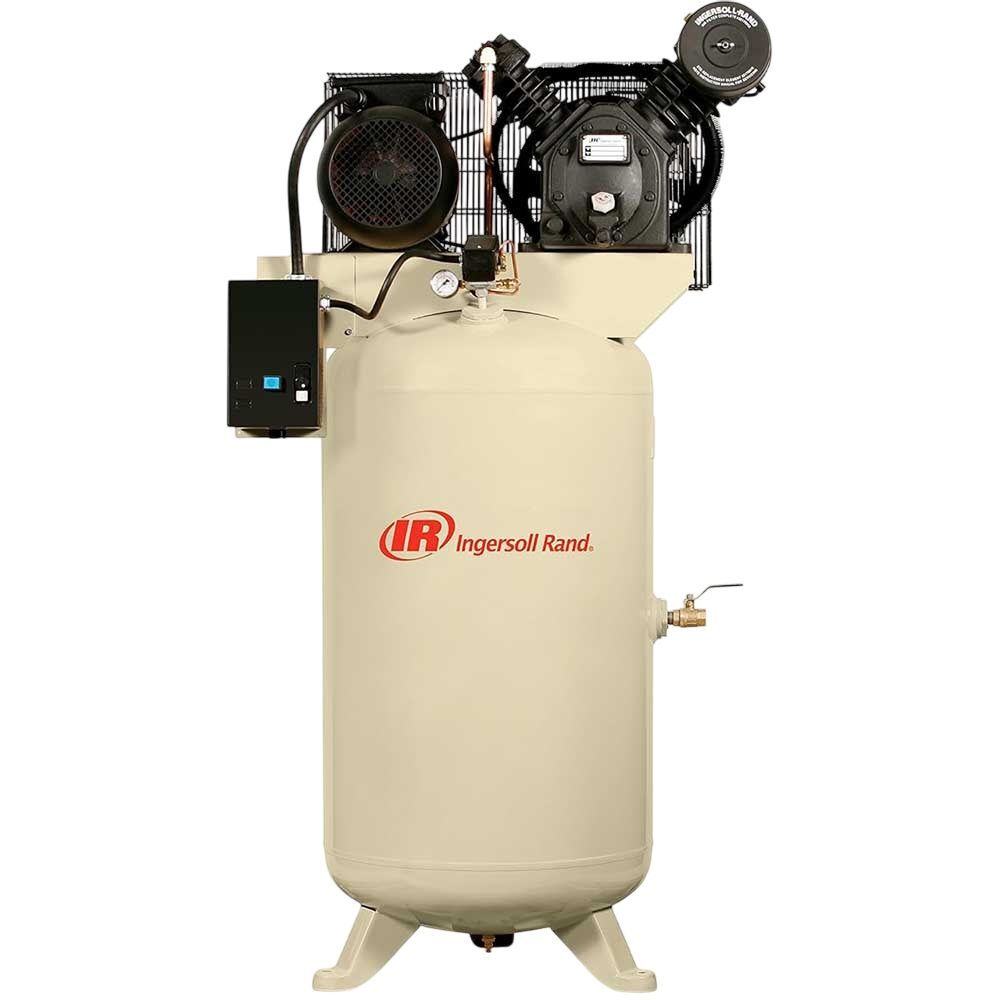

Ingersoll Rand 5 HP 80 gal 230 V 1 Ph Vertical Air Compressor, large image number 0
Ingersoll Rand 5 HP 80 gal 230 V 1 Ph Vertical Air Compressor, small
  • Available to Order
$2,449.99
Delivery to -
43215
- Est. Arrival Mon May 13 - Mon May 20 Edit location
Made In USA
  Free Freight  Shipping  (Truck freight shipping to lower 48)
Item requires special handling, additional charges may apply
Acme Tools Guarantee

Lift Gate Service (freight lowered to ground)
Ingersoll Rand 5 HP 80 gal 230 V 1 Ph Vertical Air Compressor
$2,449.99
Qty
Secure Checkout

Description

Ingersoll Rand 5 HP 80 gal 230 V 1 Ph Vertical Air Compressor

The Ingersoll Rand® 5 HP 80 Gal 230 V 1 PH Vertical Air Compressor runs off a single-phase 230V power supply: the type typically found in homes and small commercial buildings. It delivers a maximum 175 pounds per square inch (psi) of air pressure with a 14 cubic feet per minute (CFM) flow rate. Using a two-stage compression process, the Ingersoll Rand 230V single-phase vertical air compressor offers greater energy efficiency than a single-stage model and is capable of higher pressures. Contributing to the compressor’s reliable performance is an excellent pump, which has a finned copper intercooler to cool the air between compression stages. The 100 percent cast-iron pump with oversized industrial-grade bearings has an expected service life of more than 15,000 hours. This value-package version of the Ingersoll Rand 5-HP 80-gallon vertical air compressor also features an automatic start/stop pressure switch and manual tank draining.

California Proposition 65 Warning.

Features

5 HP
80 Gallon tank size
Vertical configuration
230 Volt 1 phase
100% cast-iron cylinder head with deep groove directional cooling fins
Oversized industrial-grade bearings for extended pump life
High-efficiency stainless steel valves
100% cast-iron pump
High-efficiency inlet air filter with sound attenuation baffles

Specifications

Brand Name
Ingersoll Rand
Air Compressor Pump Design
Oil Lubricated
Amperage (A)
28
Assembled Weight (lbs)
505
California Proposition 65 Warning Required
Yes
Color
Tan
Compressor Design
Vertical
Country of Origin
United States
Decibel Rating (dB)
85
ETL Listed
No
Full Roll Cage
No
Handle Included
No
Height (in)
76
Horsepower (hp)
5
Lock-on Switch
No
MFG Part # (OEM)
45464989
Maximum Pressure Rating (psi)
175
Operating Position
Vertical
Package Contents
Value package includes compressor, magnetic starter (except 2340 models with single-phase voltage), manual drain, automatic and start/stop control with pressure switch
Package Depth
0
Package Height
0
Package Weight
505
Package Weight (lbs)
505
Phase
1
Product Condition
New
Side Handle
No
Switch Type
Plug in starter
Tank Capacity (gal)
80
Tank Configuration
Single
Tank Material
Cast iron
Tank Pressure Gauge
Yes
UL Listed
No
UPC
400340000799
Voltage
230
Weight (lbs)
505
Wheeled
No
